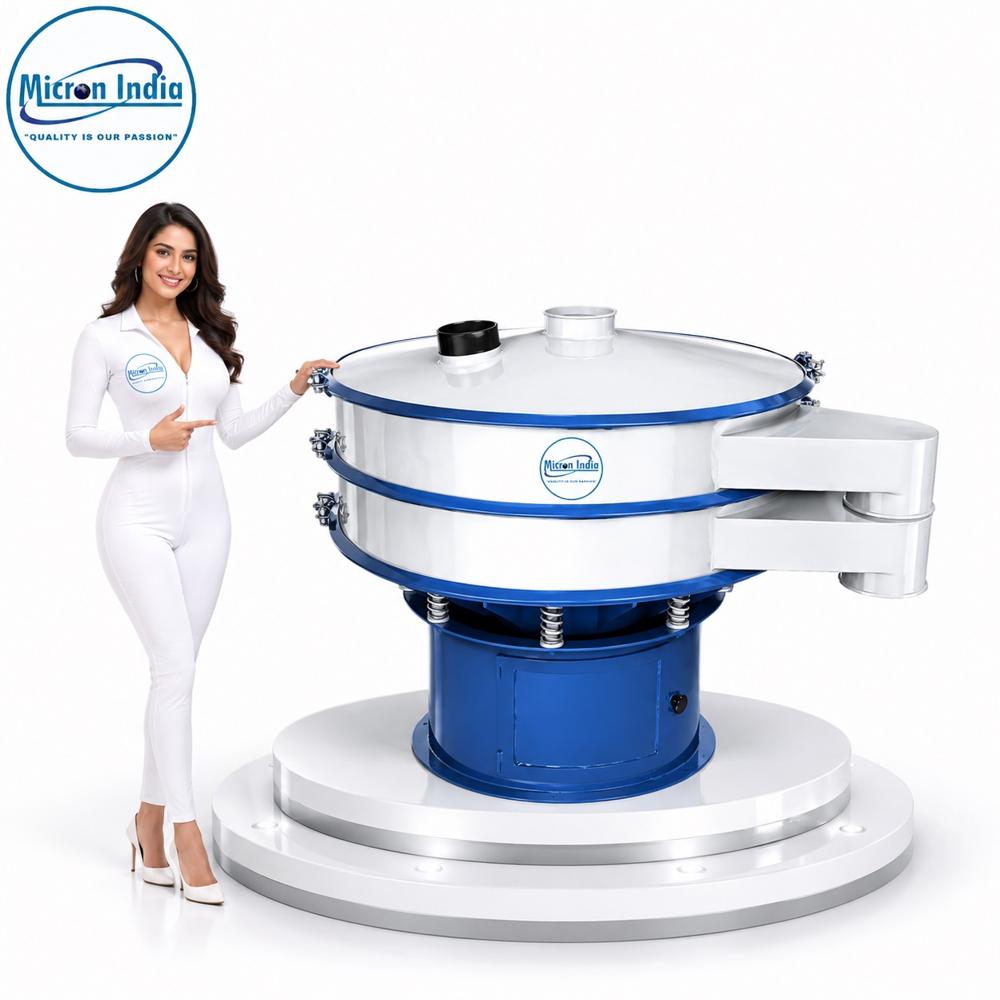

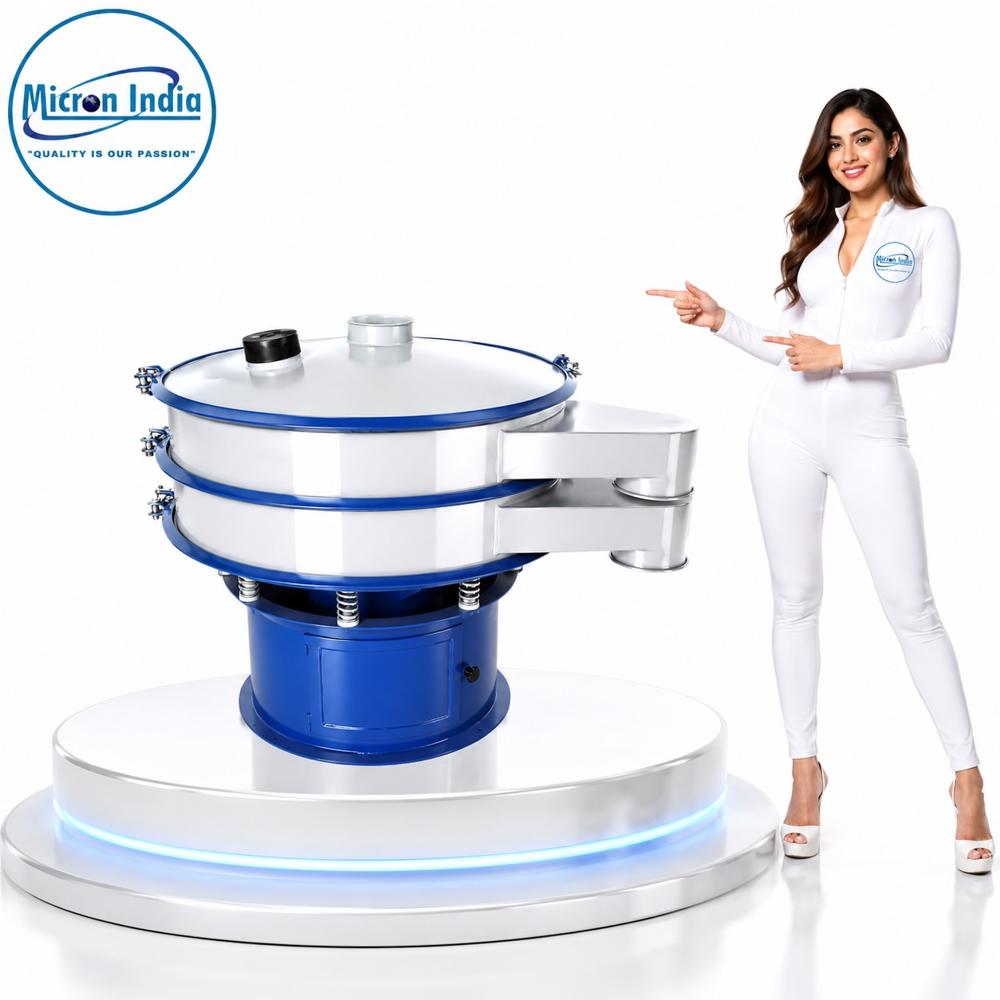

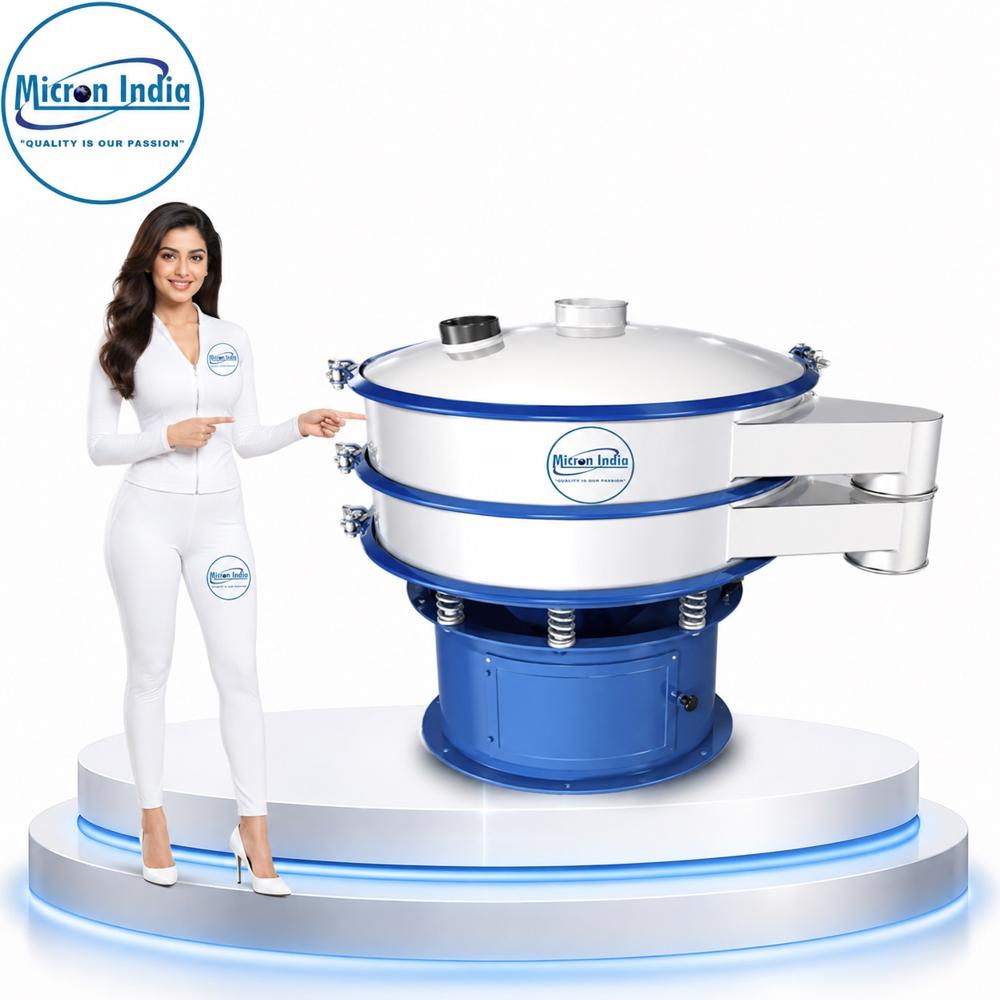

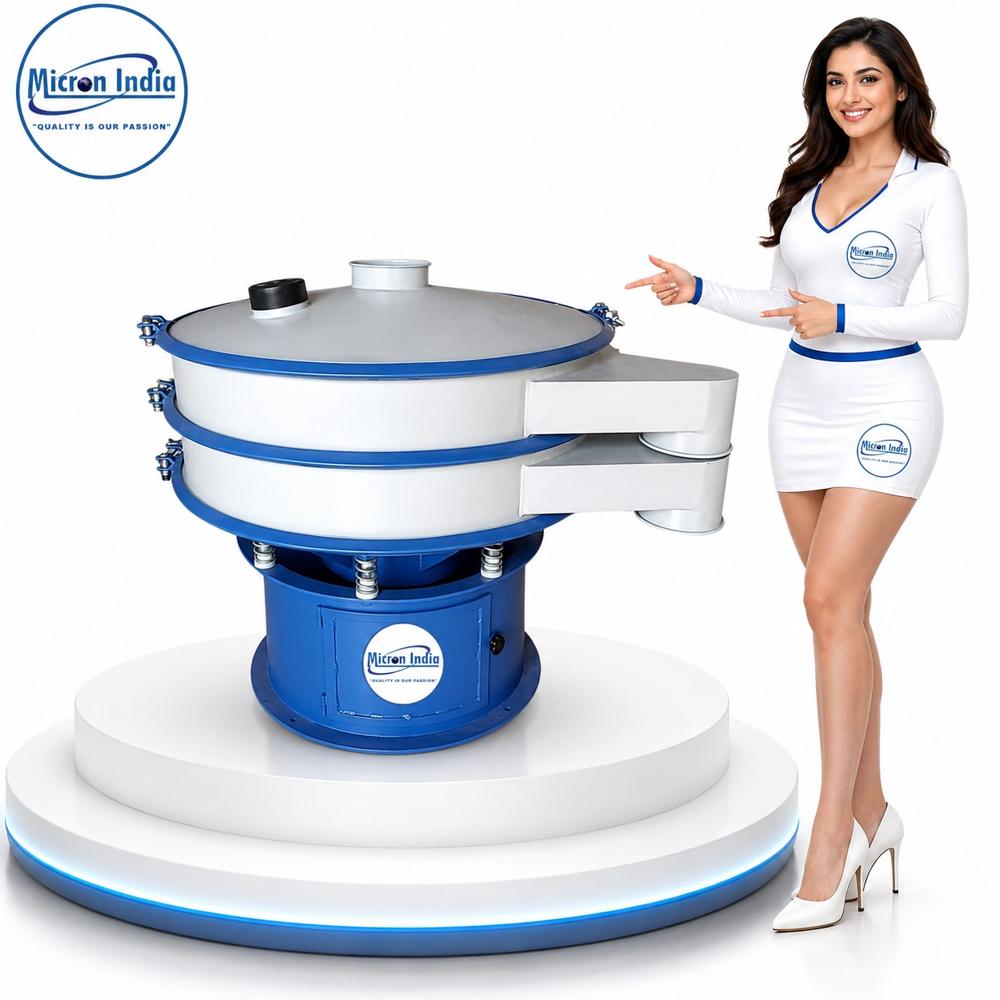

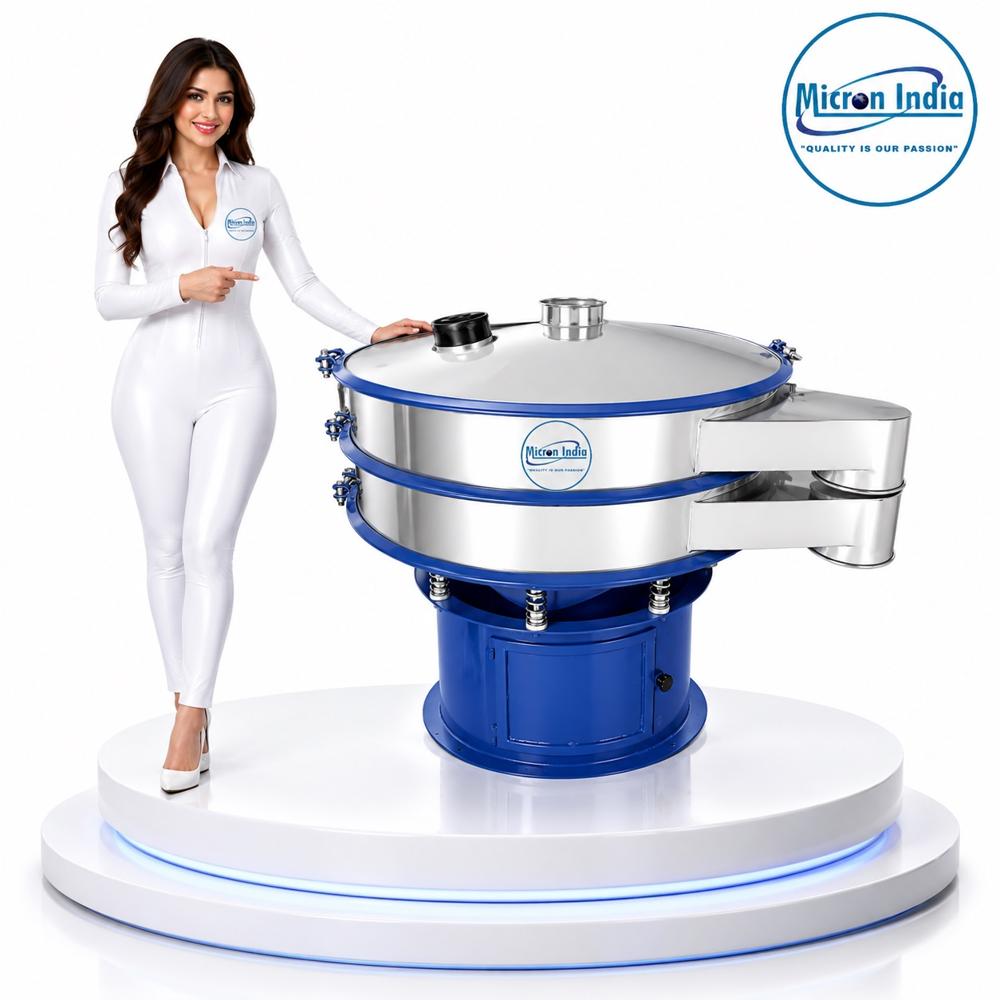

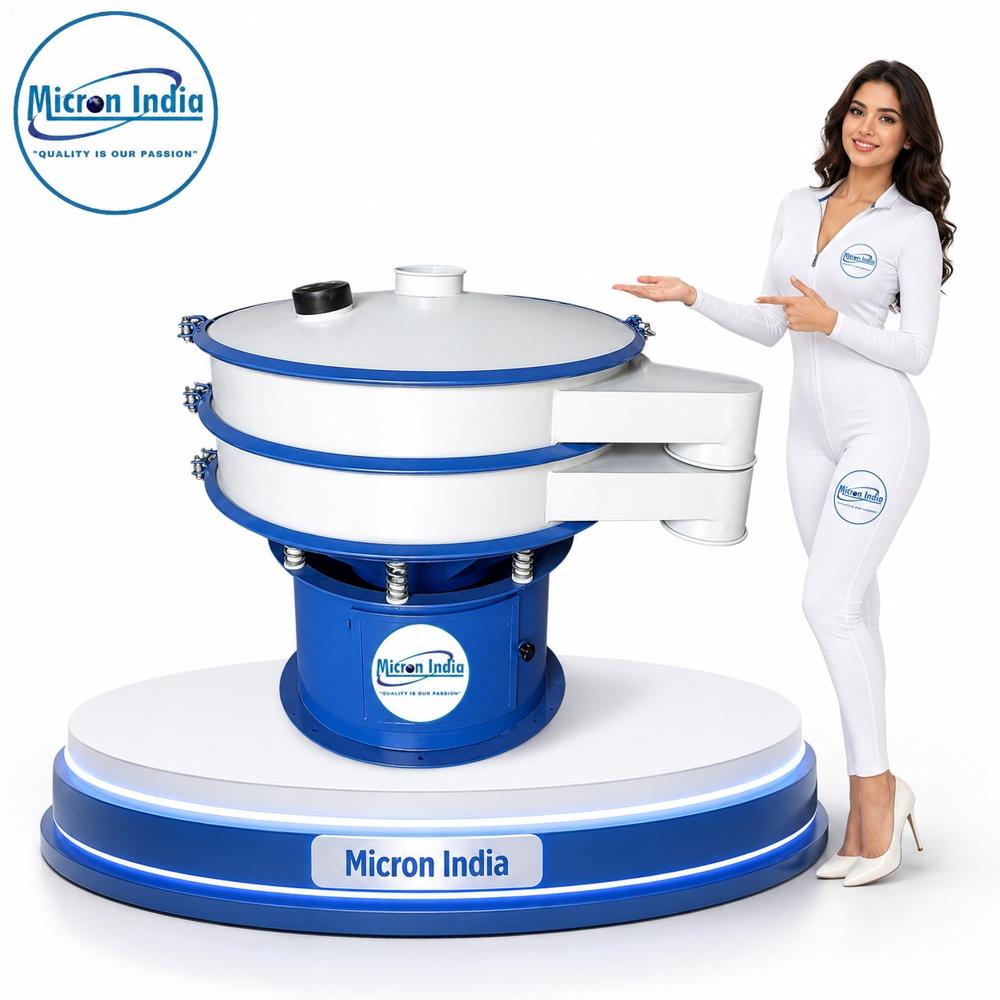

48INCH MS VIBRO SIFTER About

48 Inch MS Vibro Sifter Technical Specifications

Capacity

• Screen Diameter: 48 Inch (1200 mm)
• Screening Capacity: 10003000 kg/hr (depending on material, mesh size, and feed rate)
• Deck Options: Single Deck, Double Deck, Triple Deck, Multi-Deck

Construction

• Product Contact Parts: Mild Steel (MS)
• Surface Finish: Industrial primer with enamel or epoxy paint
• Screen Mesh: Stainless Steel (SS304) or Spring Steel (optional)
• Gasket: Food-grade silicone or neoprene (application dependent)
• Base Frame: Heavy-duty fabricated MS structure

Drive System

• Vibratory Motor: 23 HP
• Motor Speed: 1440 RPM
• Power Supply: 415 V, 3 Phase, 50 Hz

Approximate Dimensions

• Overall Diameter: 5456 Inches (13701420 mm)
• Overall Height:
  • Single Deck: 5460 Inches (13701525 mm)
  • Double Deck: 6066 Inches (15251680 mm)
  • Triple Deck: 6672 Inches (16801830 mm)

Approximate Weight

• Single Deck: 350450 kg
• Double Deck: 450550 kg
• Triple Deck: 550700 kg

Power Consumption

• Connected Load: 23 HP (1.52.2 kW)
• Electricity Consumption: Approximately 1.52.2 units (kWh) per hour at full motor load.

Recommended Installation Space

• Minimum Floor Space: 9 ft 9 ft (2.7 2.7 m)
• Recommended Working Area: 12 ft 12 ft (3.7 3.7 m)
• Minimum Room Height: 10 ft (3.0 m)

Standard Features

• Heavy-duty MS construction
• High-performance vertical vibratory motor
• Adjustable vibration using eccentric weights
• Quick screen replacement
• Dust-proof top cover
• Low-noise and continuous-duty operation
• Easy maintenance and cleaning

Applications

• Chemical powders
• Minerals and ores
• Fly ash
• Cement
• Sand and silica
• Fertilizers
• Ceramic raw materials
• Plastic granules

Available Mesh Sizes

• 4, 8, 10, 20, 40, 60, 80, 100, and 120 Mesh (custom sizes available)

Optional Accessories

• Double or Triple Deck configuration
• Anti-vibration springs
• Castor wheels
• Dust collection connection
• Magnetic separator
• Inspection window
• Flameproof motor
• Customized inlet and outlet arrangements
