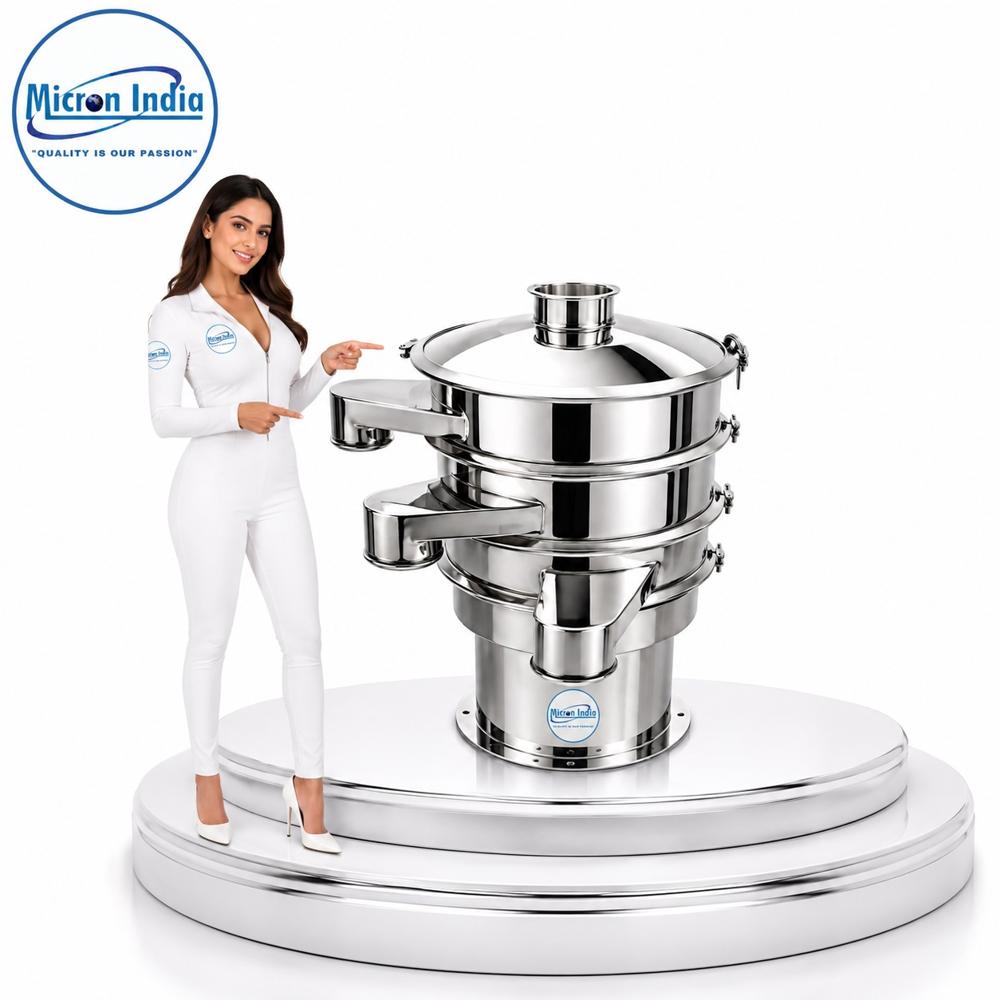

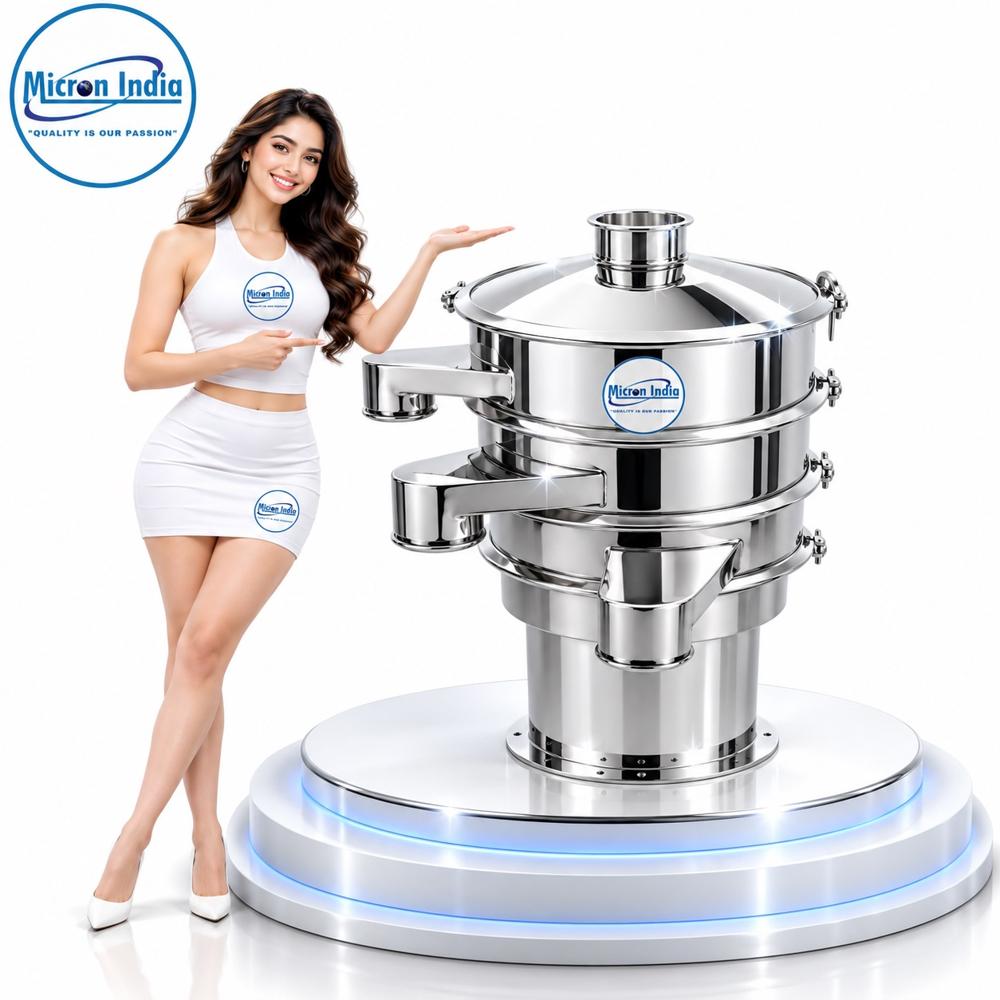

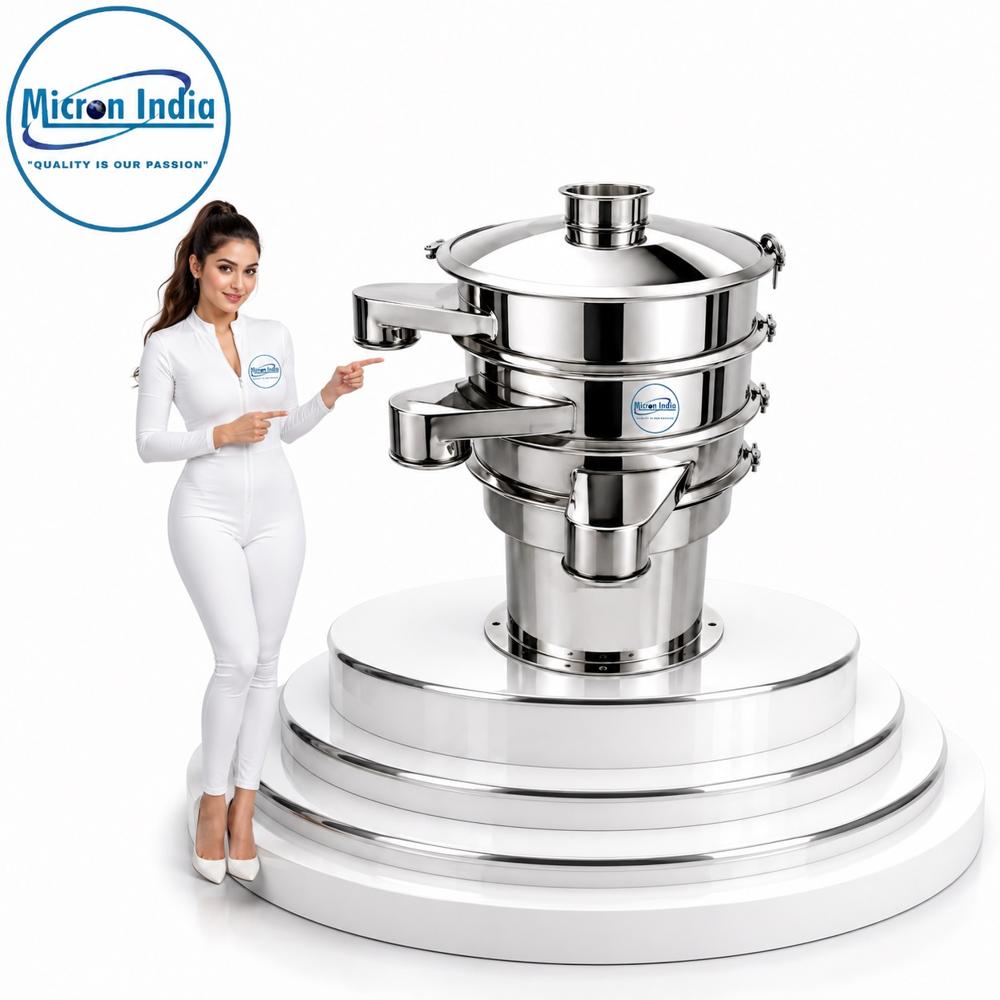

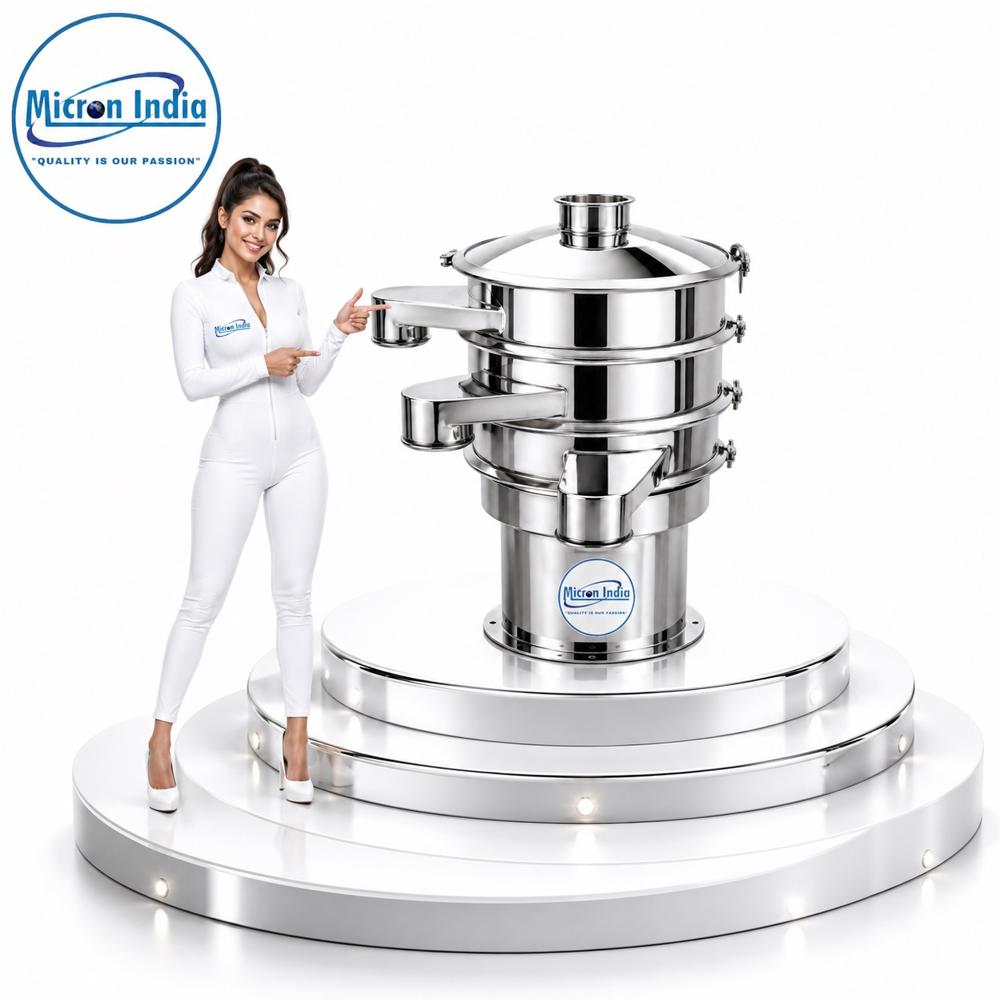

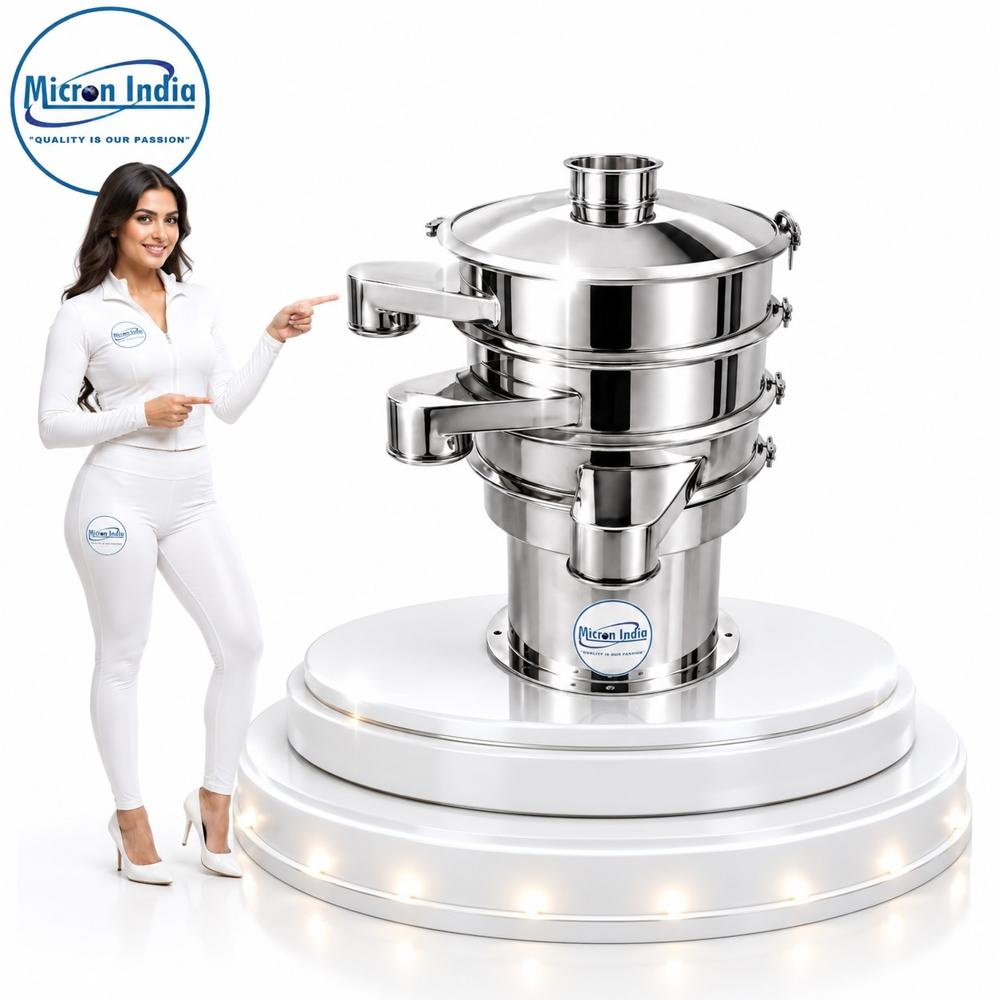

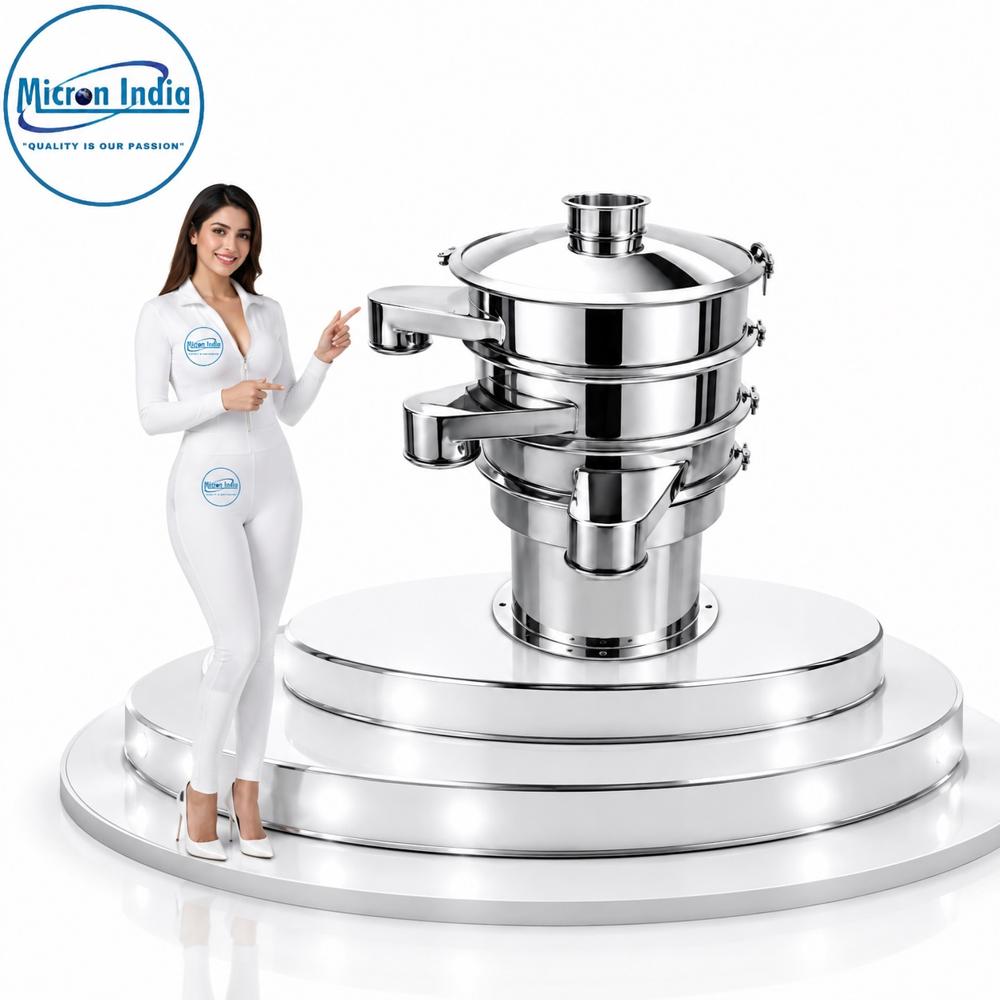

24INCH DOUBLE DECK VIBRO SIFTER About

24 Inch Double Deck Vibro Sifter Typical Specifications

Capacity

• Screen Diameter: 24 inch (600 mm)
• Deck Configuration: Double Deck
• Screening Capacity: 100500 kg/hr (depends on material and mesh size)
• Number of Separations: 3 outlets (2 screened fractions + oversize)

Construction

• Product Contact Parts: SS304 (SS316 optional)
• Non-Contact Parts: SS304 or Powder-Coated MS
• Screen Frame: Stainless steel with food-grade silicone gasket
• Surface Finish: Mirror polished inside, matte finish outside

Drive System

• Vibratory Motor: 1 HP
• Motor Speed: 1440 RPM
• Power Supply: 415 V, 3 Phase, 50 Hz

Approximate Dimensions

• Overall Diameter: 30 inches (760 mm)
• Overall Height: 4248 inches (10701220 mm)
• Outlet Height: 2430 inches (610760 mm)

Approximate Weight

• 120160 kg

Power Consumption

• Connected Load: 1 HP (0.75 kW)
• Electricity Consumption: Approximately 0.75 units (kWh) per hour at full load.

Recommended Installation Space

• Minimum Floor Space: 5 ft 5 ft (1.5 m 1.5 m)
• Recommended Working Area: 7 ft 7 ft (2.1 m 2.1 m)
• Minimum Room Height: 8 ft (2.4 m)

Standard Features

• Double-deck screening for two-stage separation
• Adjustable vibration using eccentric weights
• Quick screen replacement
• Dust-proof lid with clamp-ring locking
• Low-noise and low-maintenance operation
• Continuous-duty design
• Easy cleaning and sanitation

Applications

• Pharmaceutical powders and granules
• Food products (flour, spices, sugar)
• Herbal formulations
• Chemical powders
• Cosmetic powders
• Minerals and fine chemicals

Available Mesh Sizes

• 10, 20, 40, 60, 80, 100, 120, 150, and 200 mesh (custom mesh sizes available).
