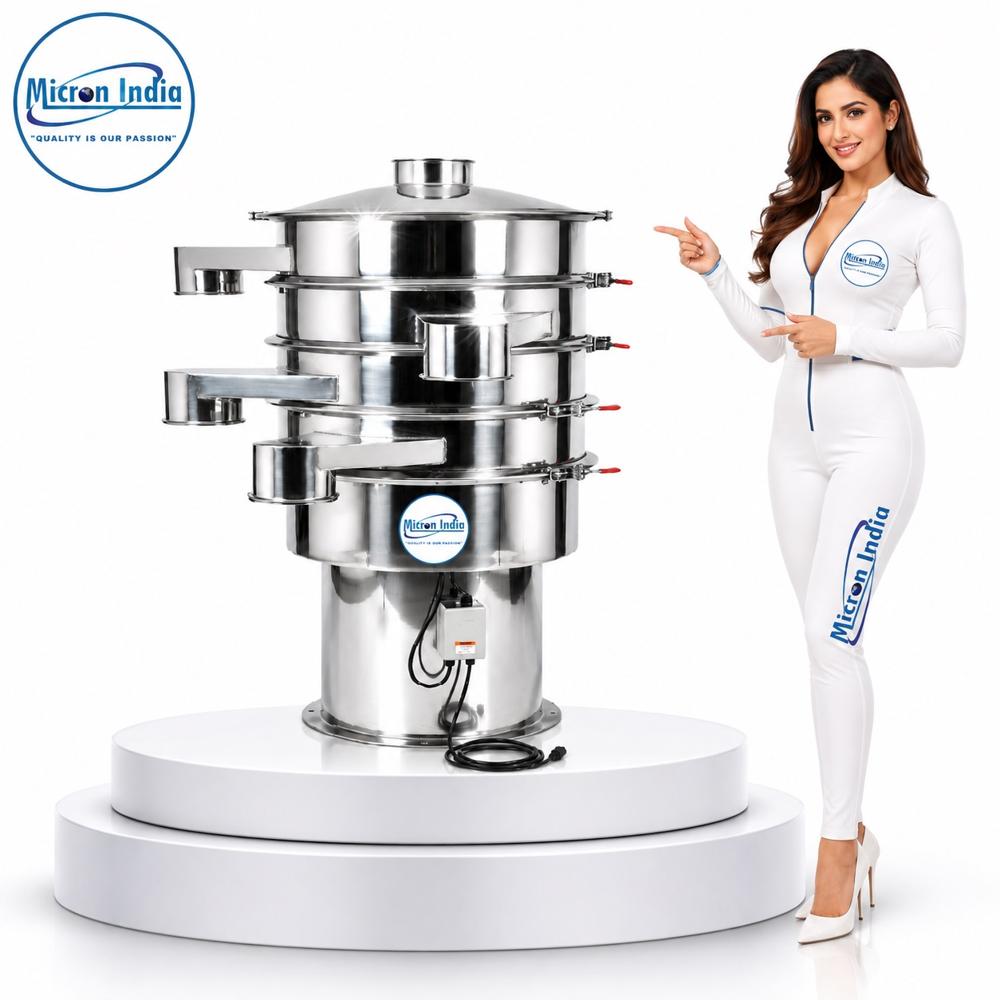

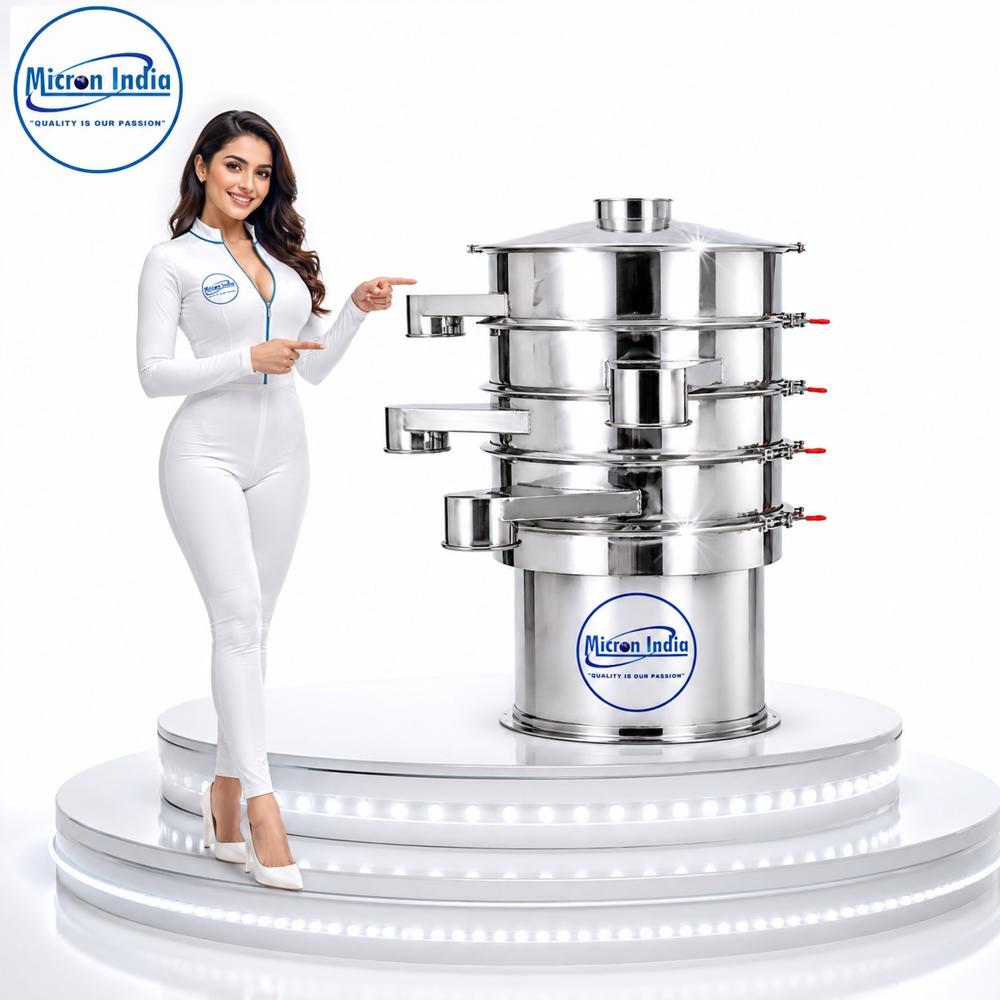

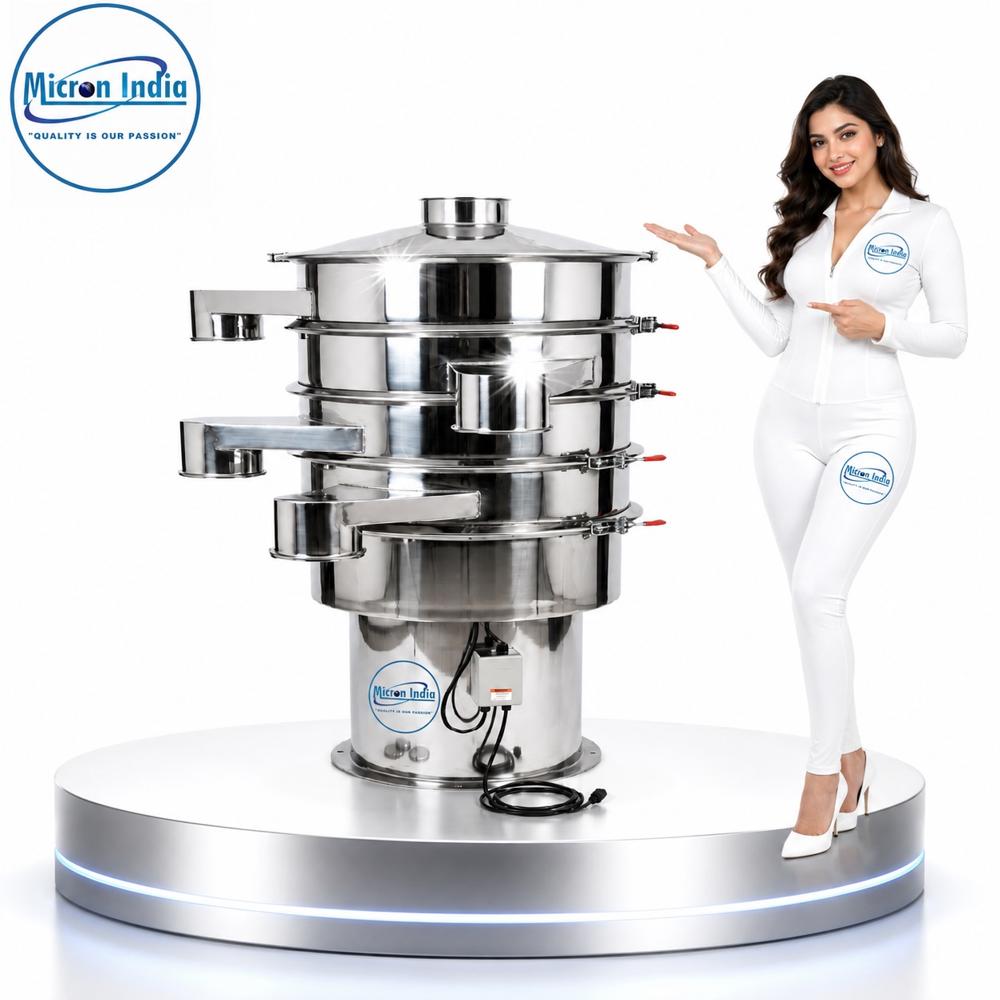

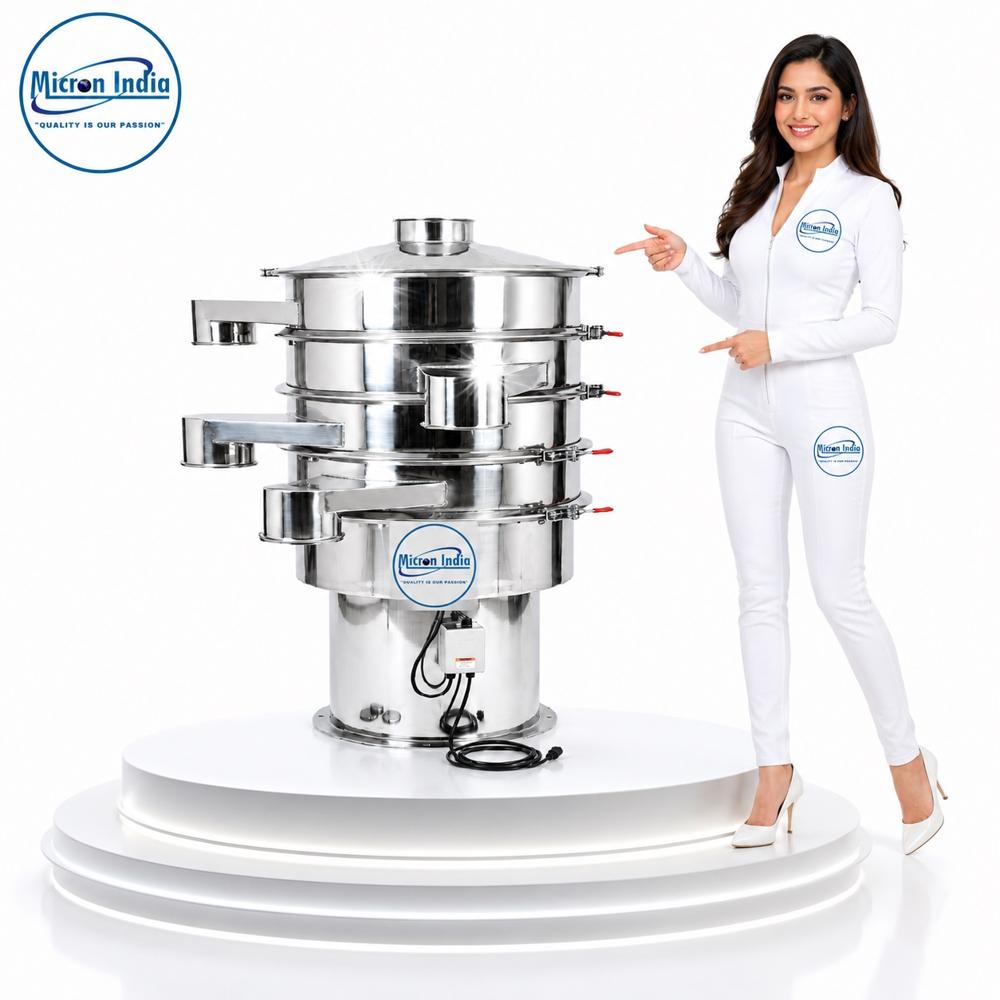

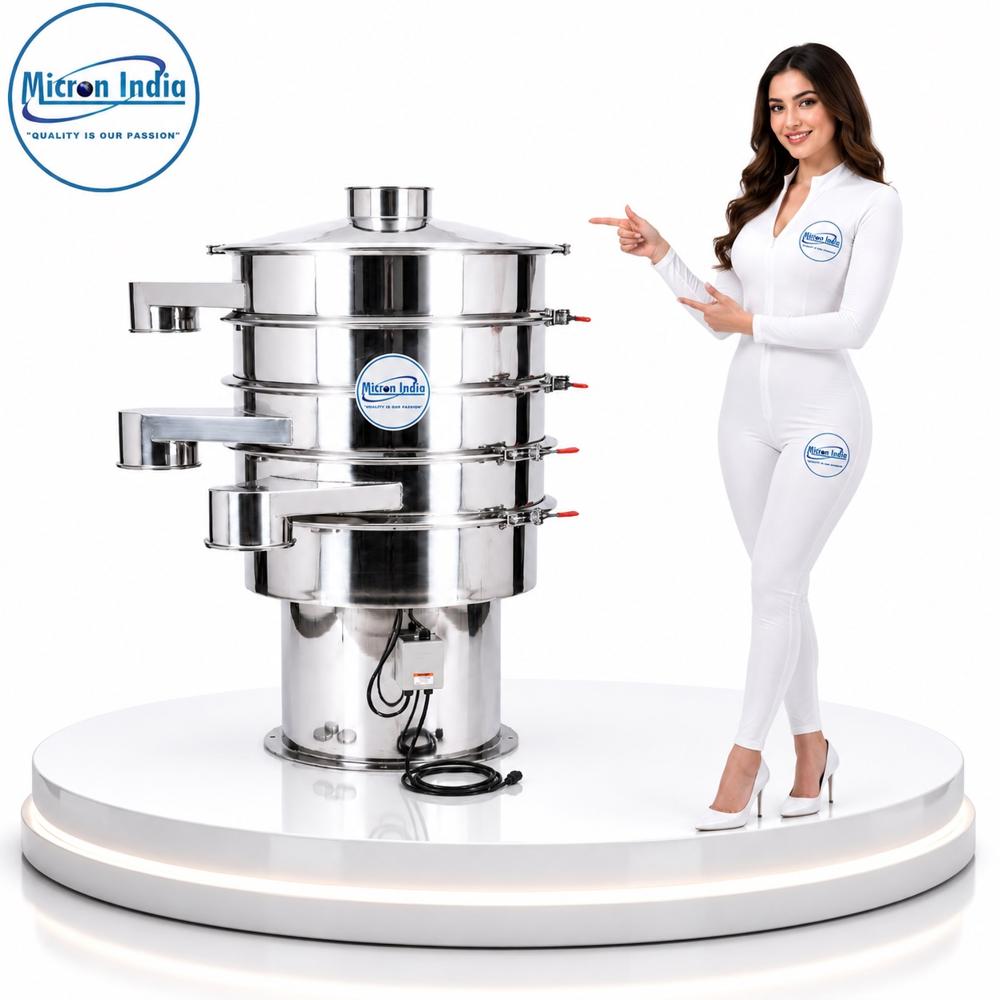

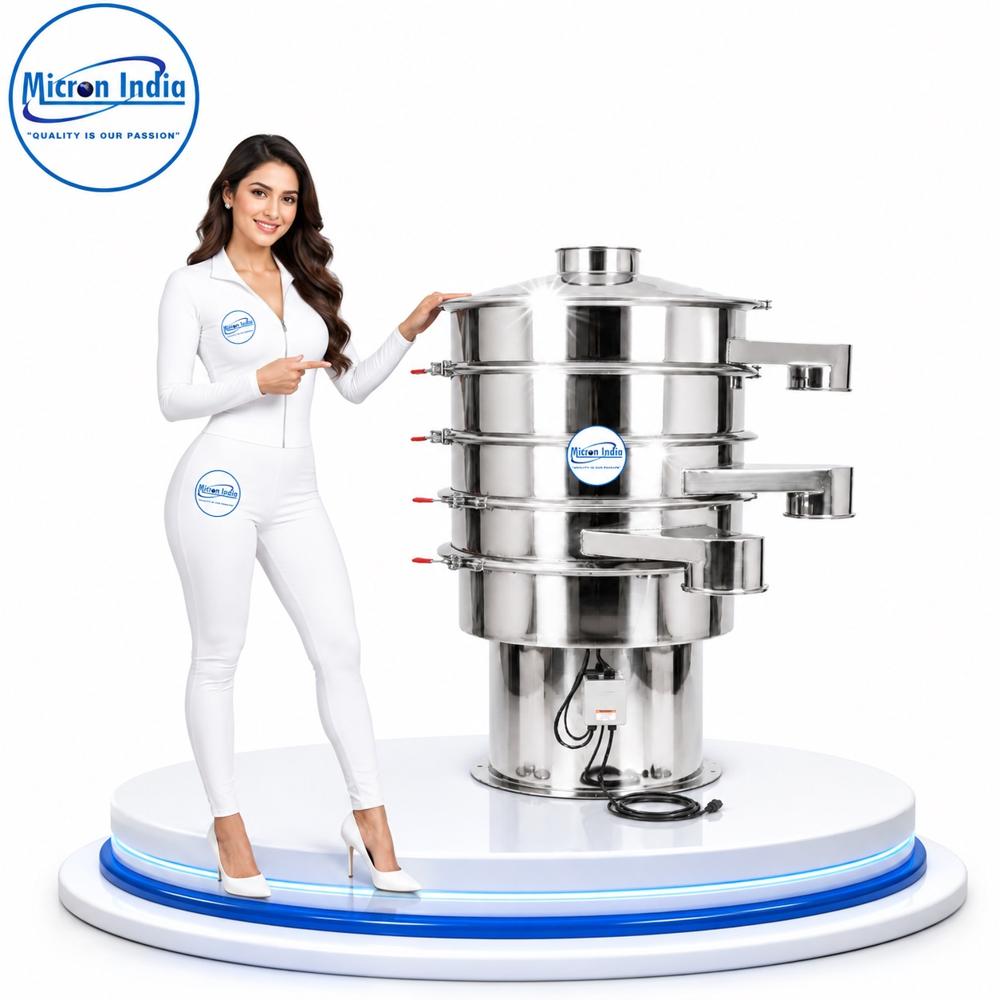

24 Inch 3-Deck Vibro Sifter Technical Specifications

Capacity

• Screen Diameter: 24 Inch (600 mm)
• Deck Configuration: 3 Deck
• Screening Capacity: 100500 kg/hr (depending on product, mesh size, and feed rate)
• Number of Product Outlets: 4 (Oversize + 3 Graded Fractions)

Construction

• Product Contact Parts: SS304 Stainless Steel (SS316 optional)
• Non-Contact Parts: SS304 Stainless Steel or Powder-Coated Mild Steel
• Screen Mesh: SS304 Stainless Steel
• Surface Finish: Mirror Polish (Internal) and Matte/Satin Finish (External)
• Gasket: Food-Grade Silicone Rubber
• Base Frame: Heavy-duty SS tubular frame with anti-vibration springs

Drive System

• Vibratory Motor: 1 HP
• Motor Speed: 1440 RPM
• Power Supply: 415 V, 3 Phase, 50 Hz

Approximate Dimensions

• Overall Diameter: 30 Inches (760 mm)
• Overall Height: 5258 Inches (13201470 mm)
• Discharge Height: 2630 Inches (660760 mm)

Approximate Weight

• 150190 kg

Power Consumption

• Connected Load: 1 HP (0.75 kW)
• Electricity Consumption: Approximately 0.75 units (kWh) per hour at full motor load.

Recommended Installation Space

• Minimum Floor Space: 5 ft 5 ft (1.5 1.5 m)
• Recommended Working Area: 7 ft 7 ft (2.1 2.1 m)
• Minimum Room Height: 8 ft (2.4 m)

Standard Features

• Triple-deck design for four-stage particle separation
• High-performance vertical vibratory motor
• Adjustable eccentric weights for vibration control
• Quick screen replacement with clamp-ring locking
• Dust-proof top cover
• Low-noise and vibration-free operation
• Easy dismantling, cleaning, and maintenance
• Hygienic GMP/cGMP-compliant construction

Applications

• Pharmaceutical powders and granules
• Food products (flour, spices, sugar, starch)
• Nutraceutical powders
• Herbal products
• Cosmetic powders
• Chemical powders
• Fine minerals and specialty materials

Available Mesh Sizes

• 10, 20, 40, 60, 80, 100, 120, 150, 200, and 300 Mesh (custom mesh sizes available)

Optional Accessories

• SS316 Product Contact Parts
• Magnetic Separator
• Anti-Vibration Mounts
• Castor Wheels
• Dust Collection Connection
• Inspection Window
• Flameproof Motor
• Variable Frequency Drive (VFD)
• Customized Inlet and Outlet Arrangement
