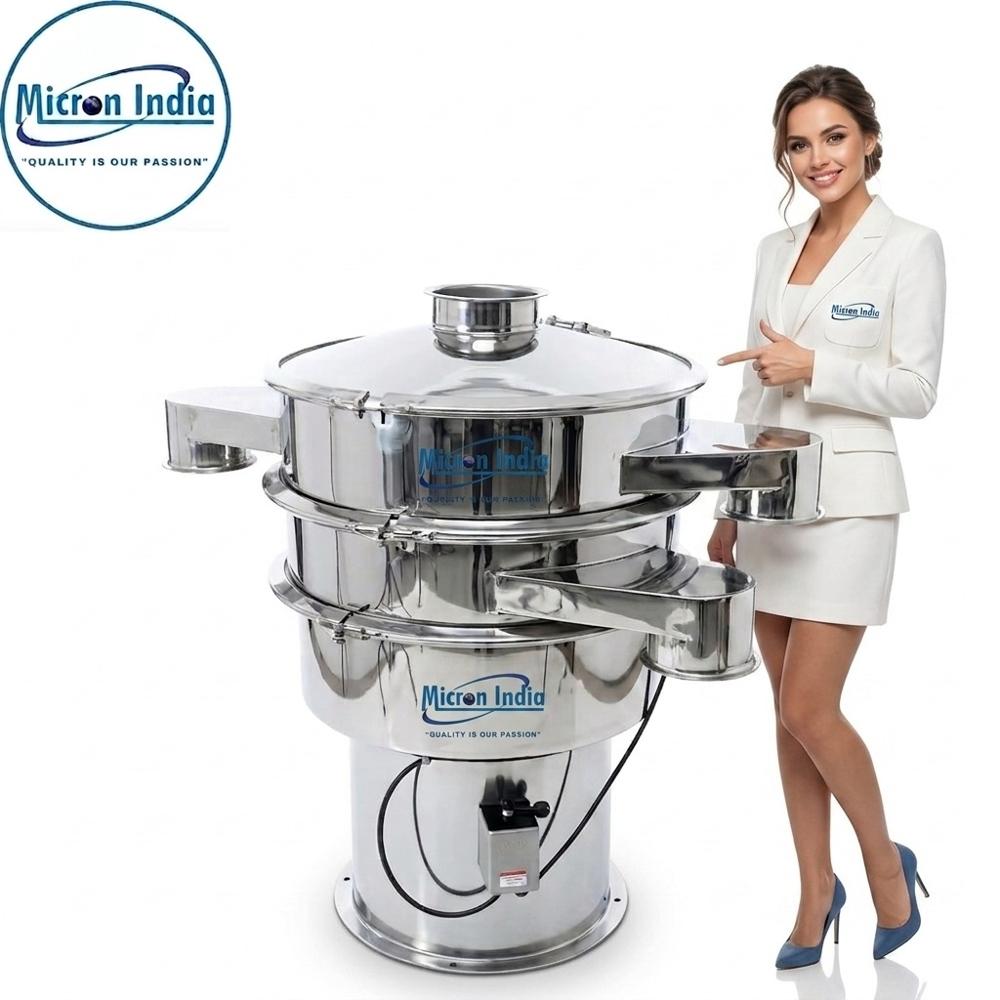

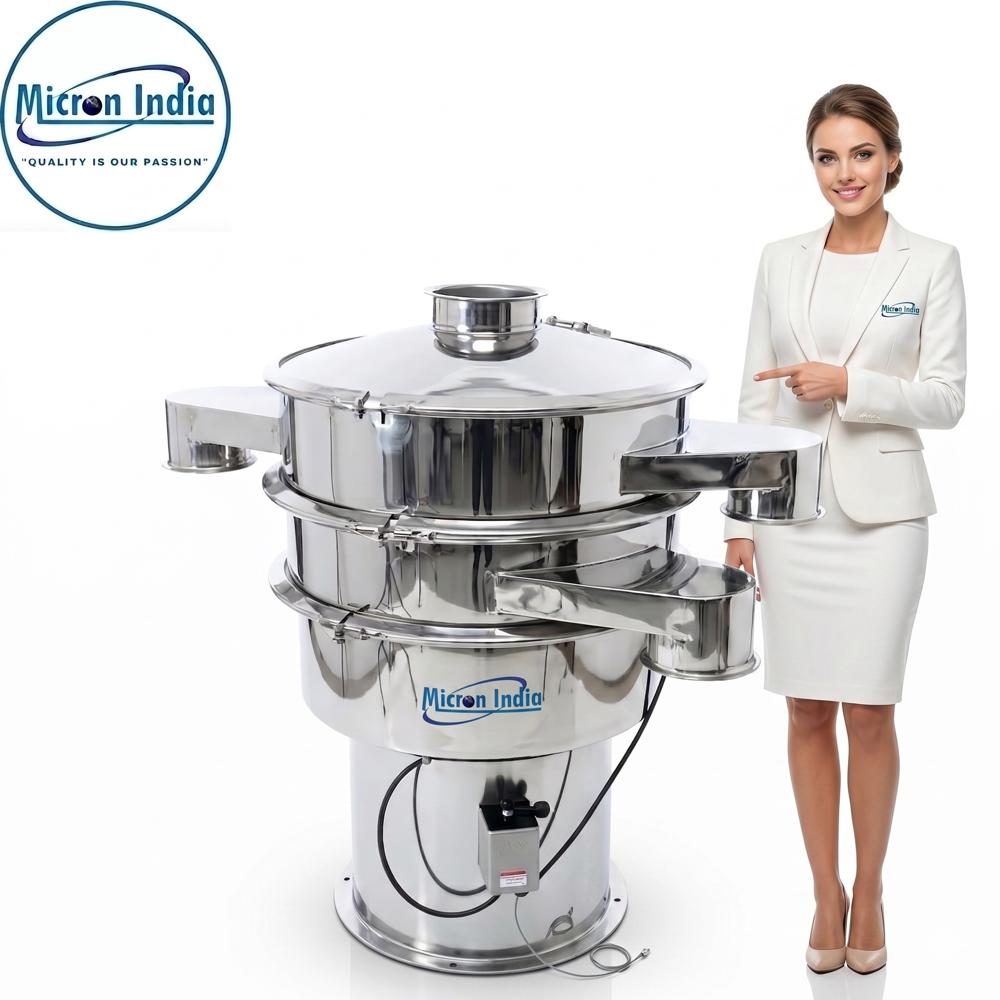

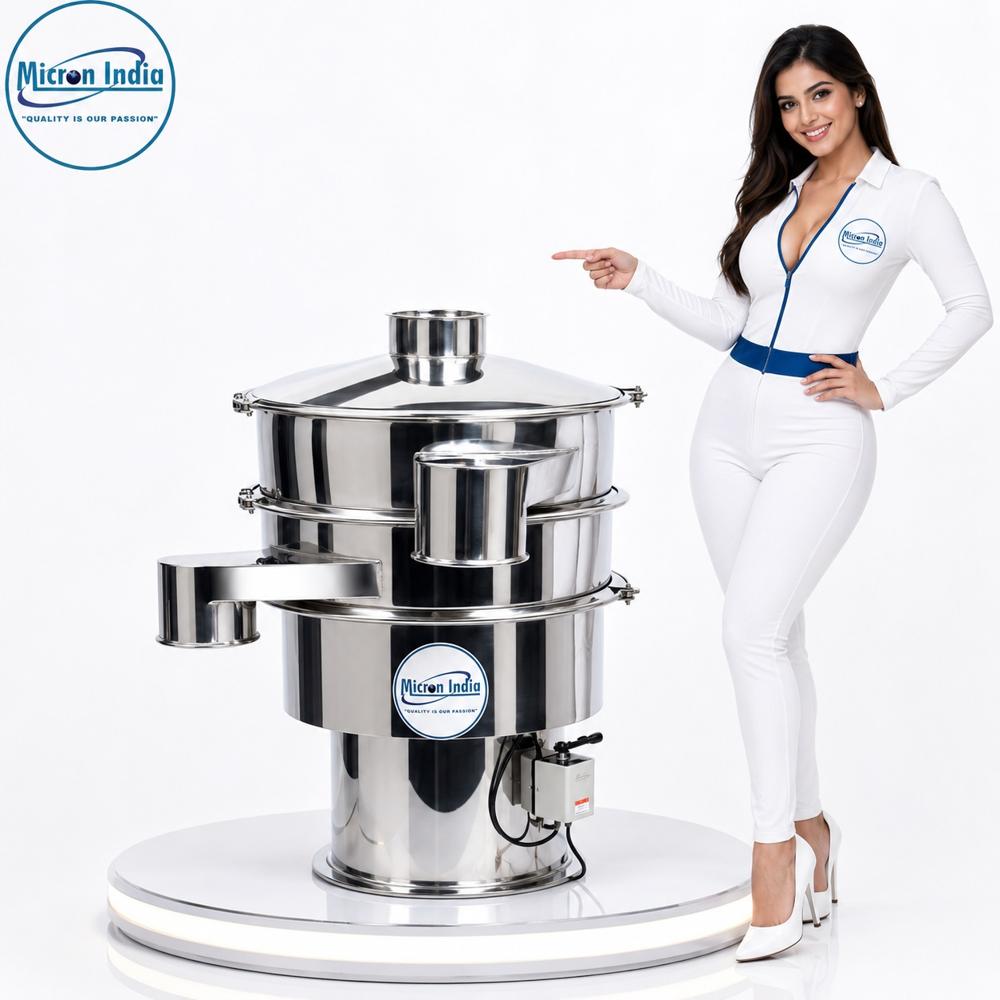

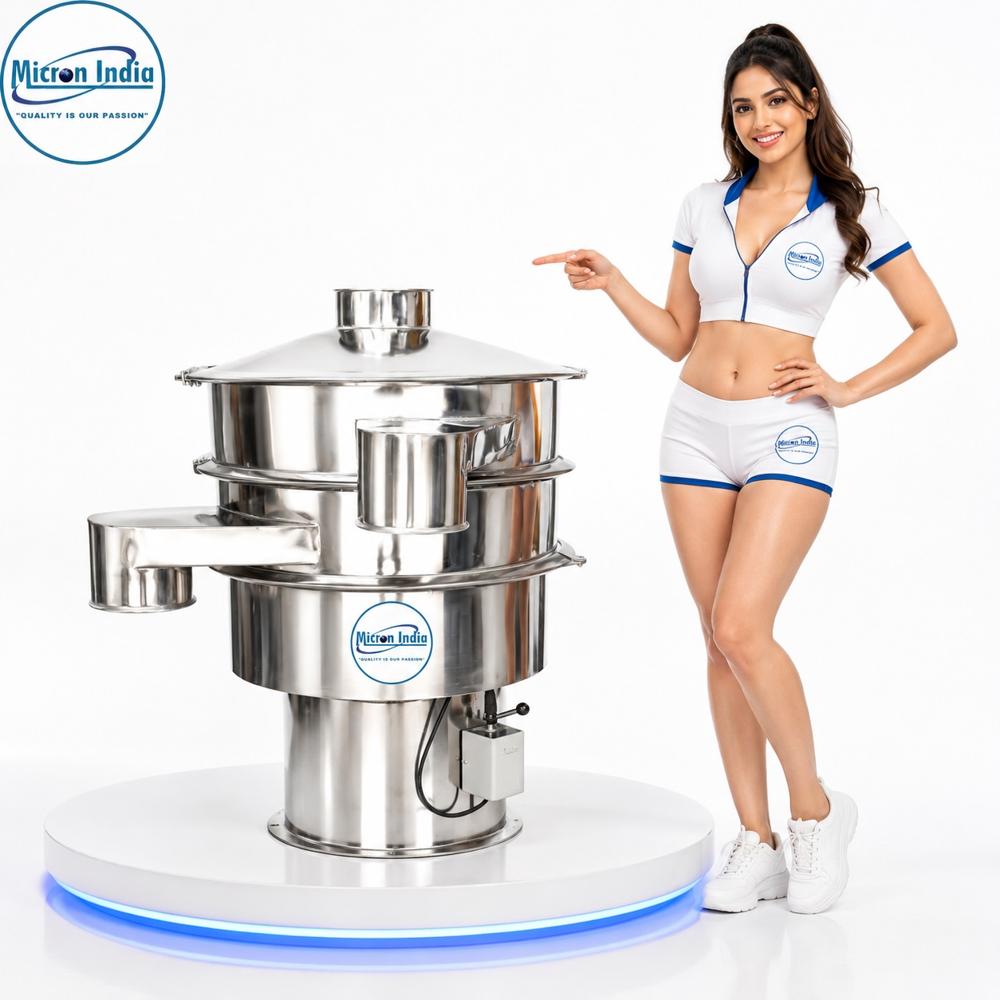

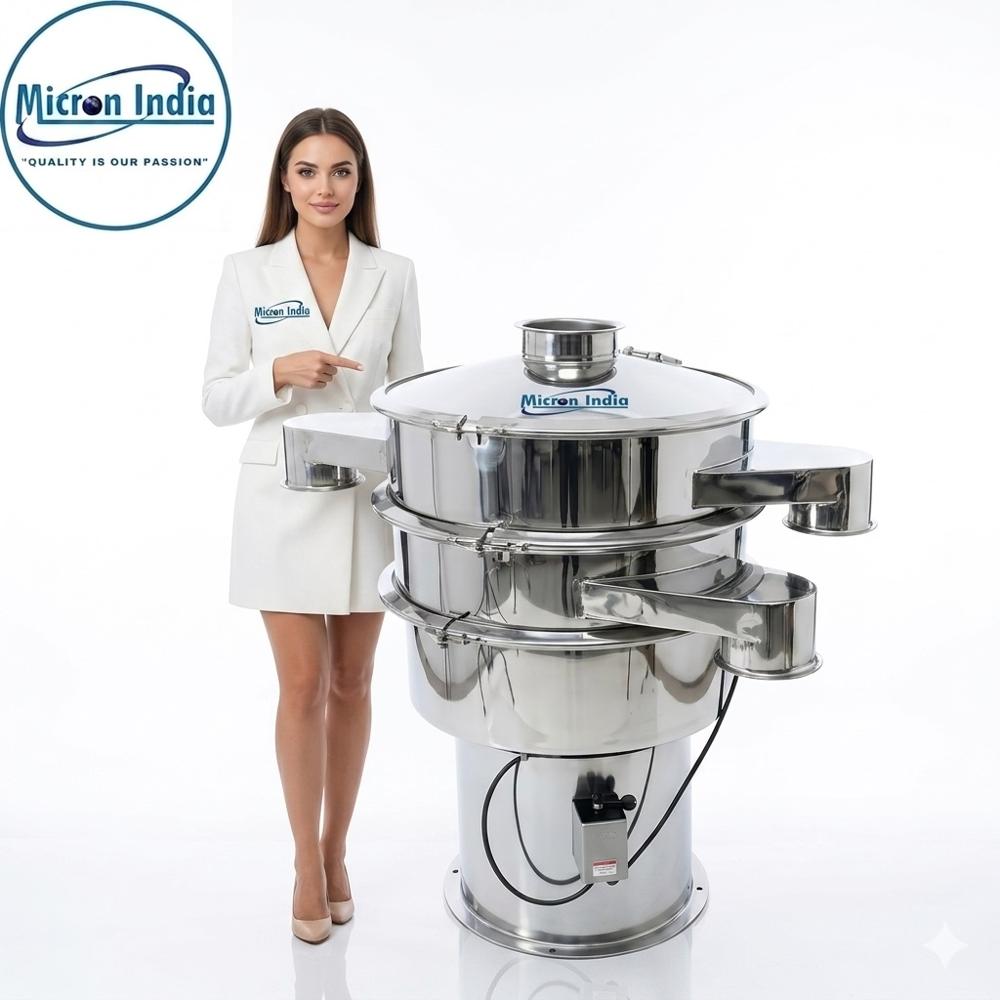

24INCH VIBRO SIFTER About

24 Inch Vibro Sifter Typical Specifications

Capacity

• Screen Diameter: 24 inch (600 mm)
• Screening Capacity: 100500 kg/hr (depends on material and mesh size)
• Deck Options: Single, Double, Triple, or Multi-Deck

Construction

• Product Contact Parts: SS304 (SS316 optional)
• Non-Contact Parts: SS304 or MS with powder coating
• Surface Finish: Mirror polished inside, matte finish outside
• Screen Frame: Stainless steel with food-grade sealing gasket

Drive System

• Vibratory Motor: 0.751 HP
• Power Supply: 415V, 3 Phase, 50 Hz
• Vibration Speed: Approximately 1440 RPM

Approximate Dimensions

• Overall Diameter: 2830 inches (710760 mm)
• Overall Height:
  • Single Deck: 3642 inches (9151070 mm)
  • Double Deck: 4248 inches (10701220 mm)
  • Triple Deck: 4854 inches (12201370 mm)

Approximate Weight

• Single Deck: 90120 kg
• Double Deck: 120160 kg
• Triple Deck: 150190 kg

Recommended Installation Space

• Minimum Floor Space: 5 ft 5 ft (1.5 m 1.5 m)
• Recommended Working Area: 7 ft 7 ft (2.1 m 2.1 m)
• Minimum Room Height: 8 ft (2.4 m)

Standard Features

• High-efficiency vibratory motor
• Quick screen replacement
• Adjustable vibration with eccentric weights
• Dust-proof lid with clamp ring
• Low noise and low maintenance
• Continuous operation
• Easy cleaning and sanitation

Applications

• Pharmaceutical powders and granules
• Food ingredients, flour, spices, and sugar
• Chemical powders
• Herbal products
• Cosmetic powders
• Minerals and fine chemicals
