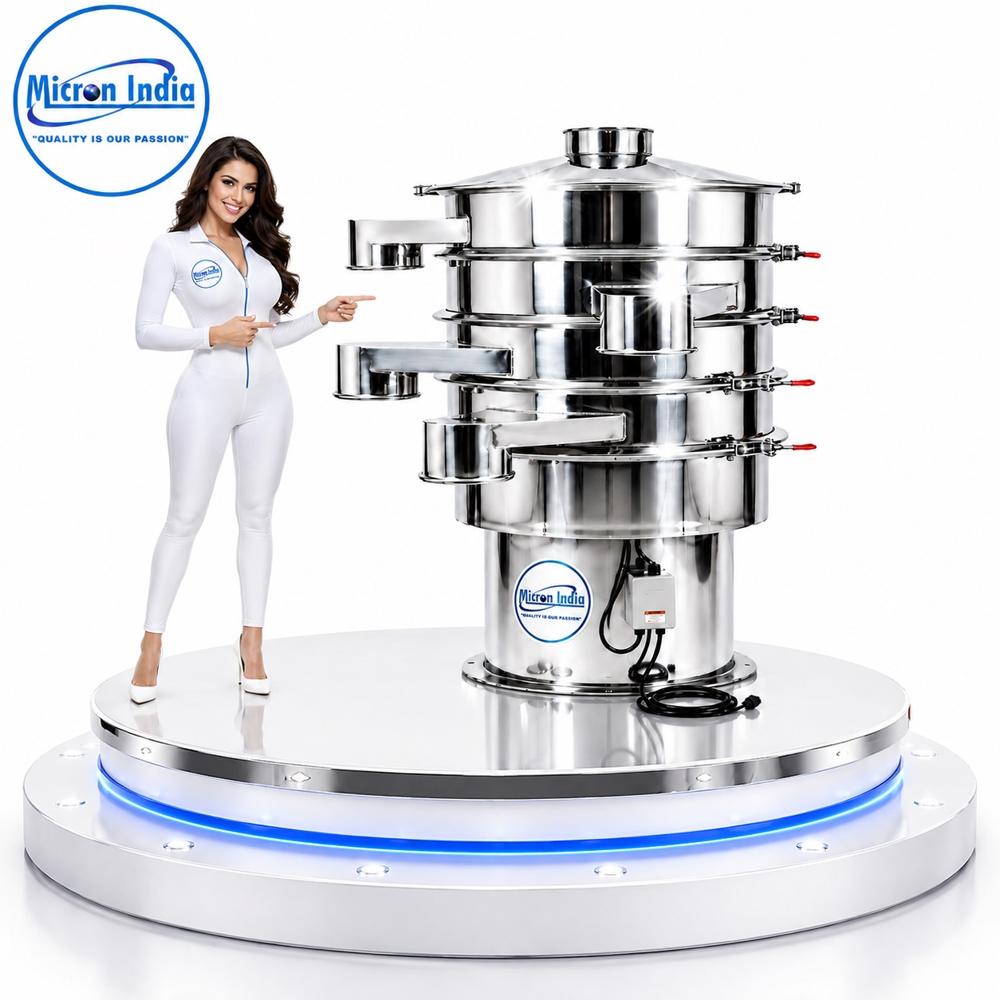

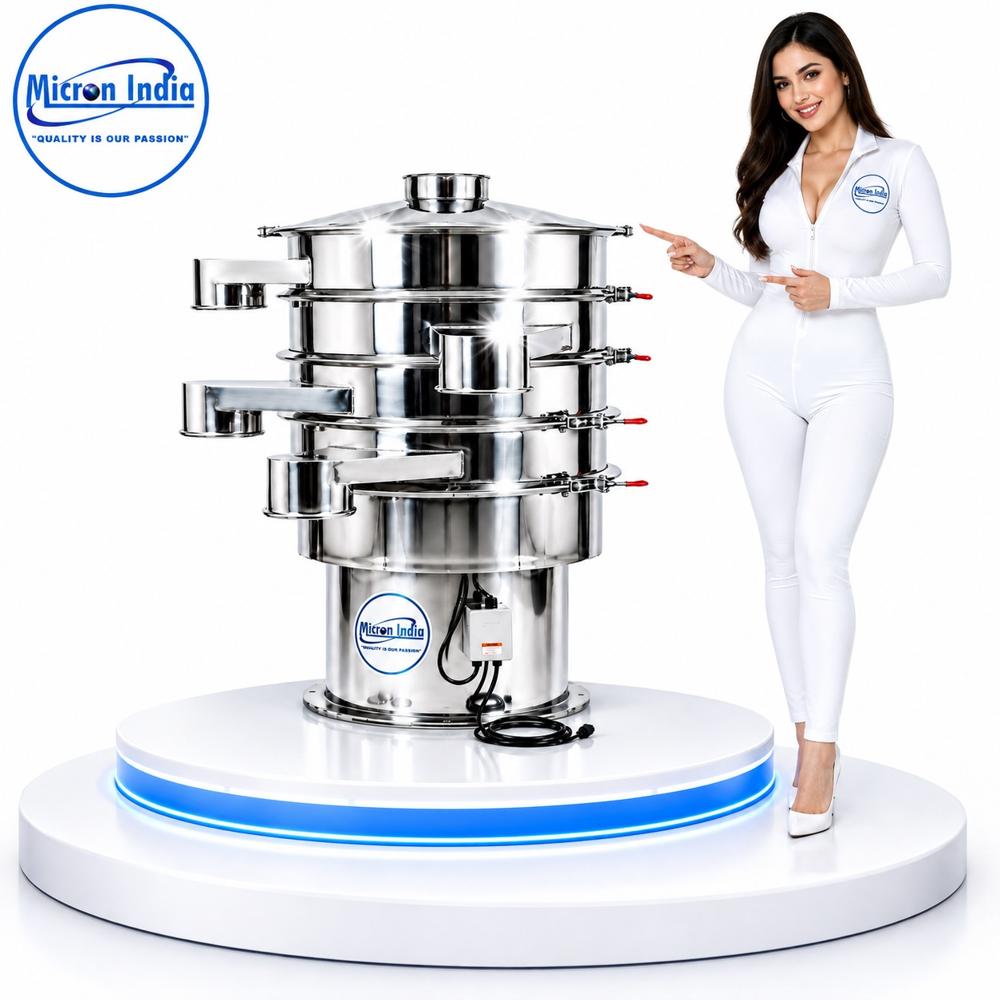

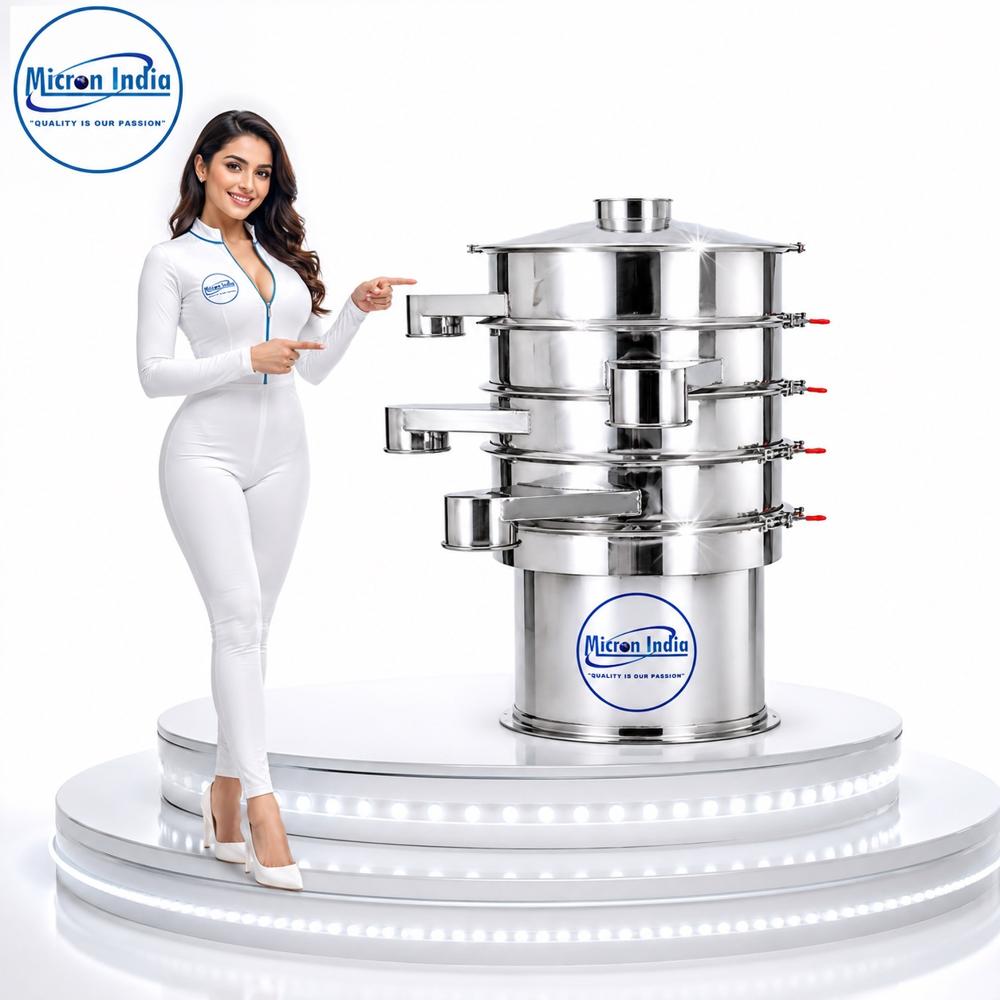

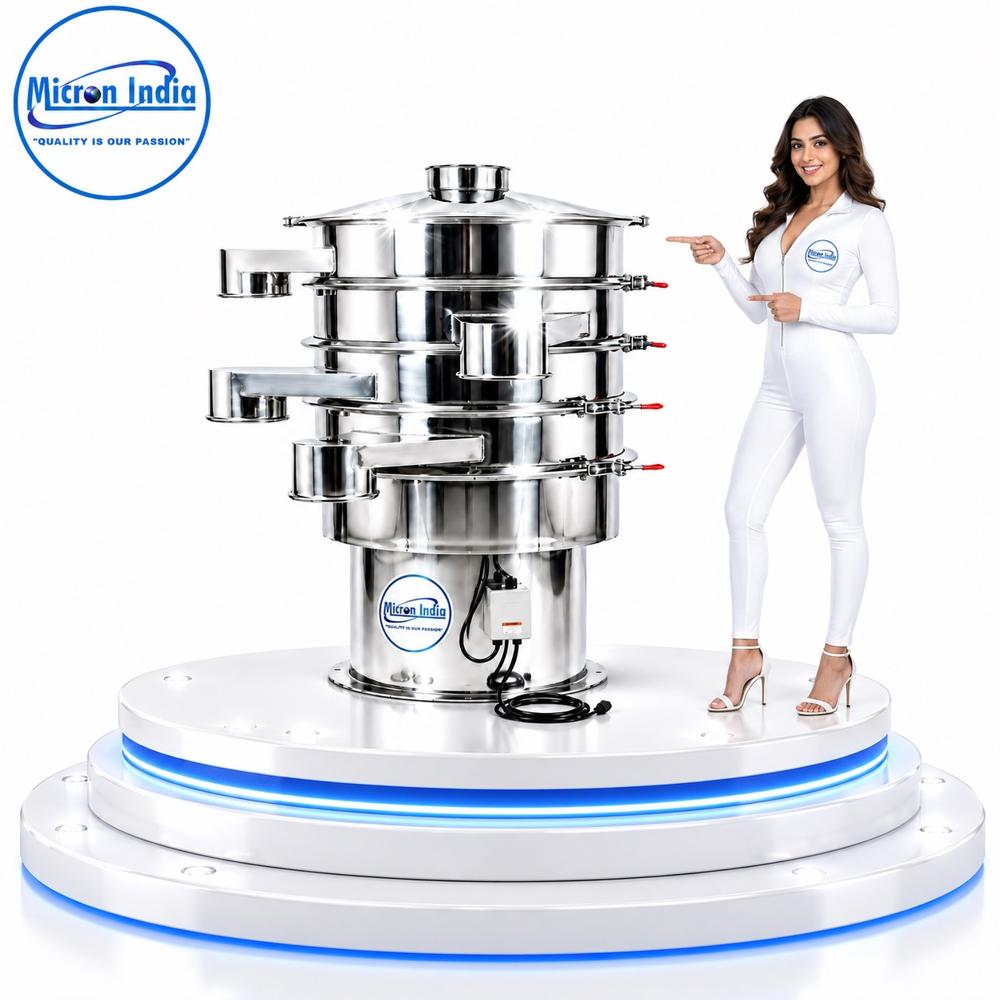

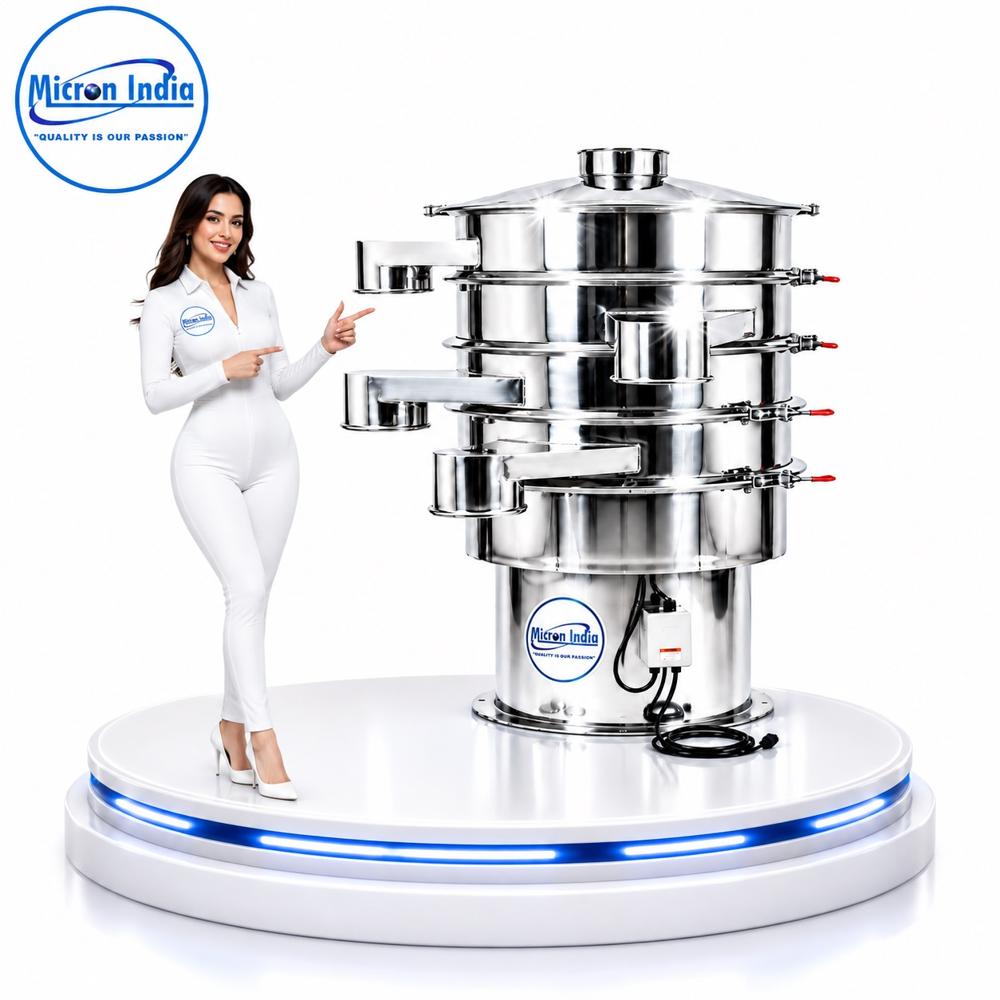

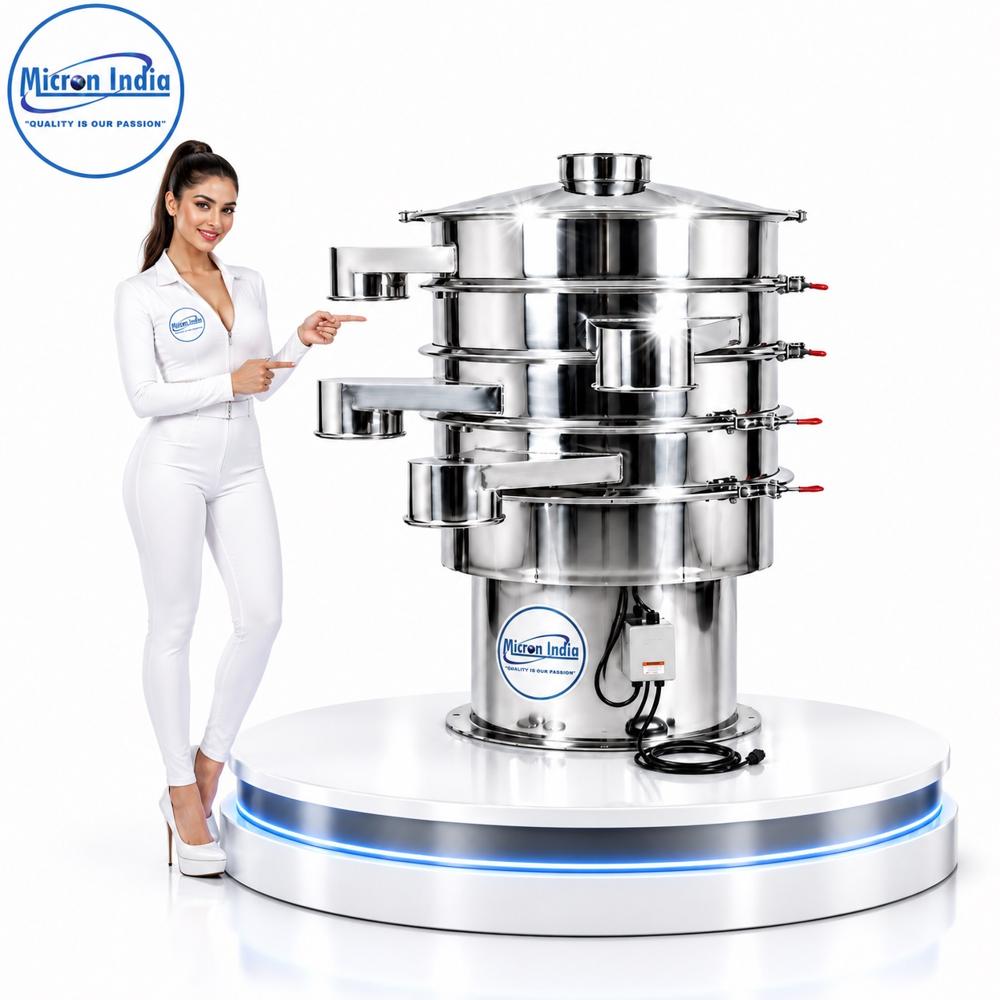

30INCH 3DECK VIBRO SIFTER About

1. 30 Inch 3-Deck Vibro Sifter Technical Specifications

   Capacity

   • Screen Diameter: 30 Inch (750 mm)
   • Deck Configuration: 3 Deck
   • Screening Capacity: 300800 kg/hr (depending on material, mesh size, and feed rate)
   • Number of Product Outlets: 4 (Oversize + 3 Graded Fractions)

   Construction

   • Product Contact Parts: SS304 Stainless Steel (SS316 optional)
   • Non-Contact Parts: SS304 Stainless Steel or Powder-Coated Mild Steel
   • Screen Mesh: SS304 Stainless Steel
   • Surface Finish: Mirror Polish (Internal) and Matte/Satin Finish (External)
   • Gasket: Food-Grade Silicone Rubber
   • Base Frame: Heavy-duty SS tubular frame with anti-vibration springs

   Drive System

   • Vibratory Motor: 1.5 HP
   • Motor Speed: 1440 RPM
   • Power Supply: 415 V, 3 Phase, 50 Hz

   Approximate Dimensions

   • Overall Diameter: 36 Inches (915 mm)
   • Overall Height: 5864 Inches (14701630 mm)
   • Discharge Height: 2832 Inches (710810 mm)

   Approximate Weight

   • 180250 kg

   Power Consumption

   • Connected Load: 1.5 HP (1.1 kW)
   • Electricity Consumption: Approximately 1.1 units (kWh) per hour at full motor load.

   Recommended Installation Space

   • Minimum Floor Space: 6 ft 6 ft (1.8 1.8 m)
   • Recommended Working Area: 8 ft 8 ft (2.4 2.4 m)
   • Minimum Room Height: 9 ft (2.7 m)

   Standard Features

   • Triple-deck design for four-stage particle separation
   • High-performance vertical vibratory motor
   • Adjustable eccentric weights for vibration control
   • Quick screen replacement system
   • Dust-proof top cover with clamp-ring locking
   • Low-noise and continuous-duty operation
   • Easy dismantling, cleaning, and maintenance
   • Hygienic GMP-compliant construction

   Applications

   • Pharmaceutical powders and granules
   • Food products (flour, spices, sugar, starch)
   • Nutraceutical powders
   • Herbal products
   • Cosmetic powders
   • Chemical powders
   • Fine minerals and specialty materials

   Available Mesh Sizes

   • 10, 20, 40, 60, 80, 100, 120, 150, 200, and 300 Mesh (custom mesh sizes available)

   Optional Accessories

   • SS316 Product Contact Parts
   • Magnetic Separator
   • Anti-Vibration Mounts
   • Castor Wheels
   • Dust Collection Connection
   • Inspection Window
   • Flameproof Motor
   • Variable Frequency Drive (VFD)
   • Customized Inlet and Outlet Arrangement
