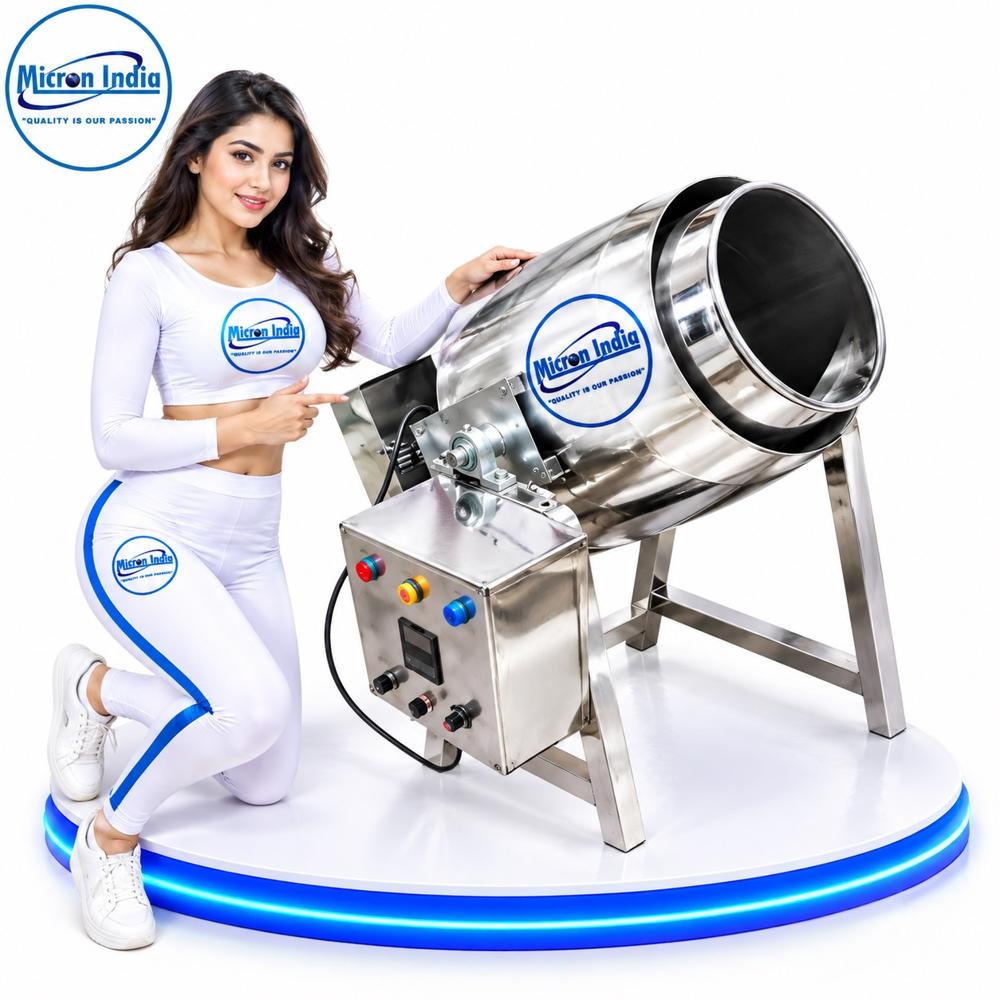

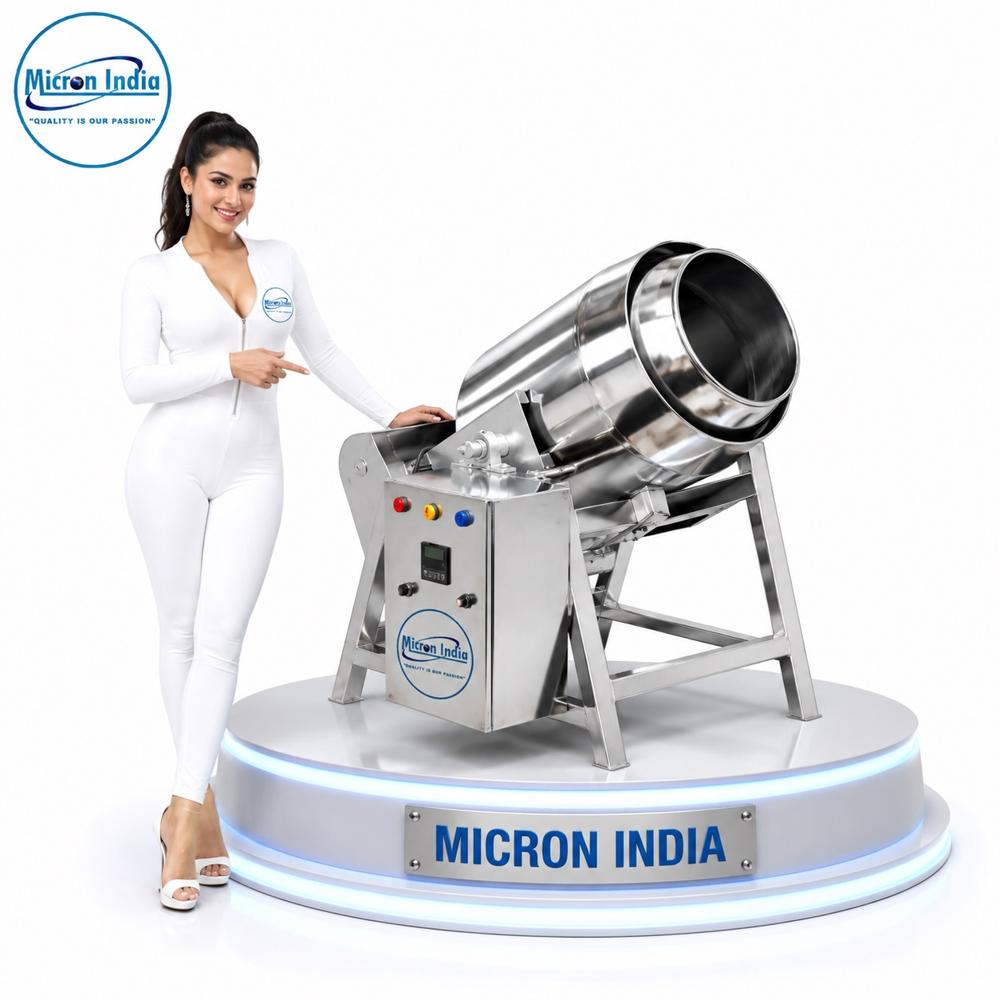

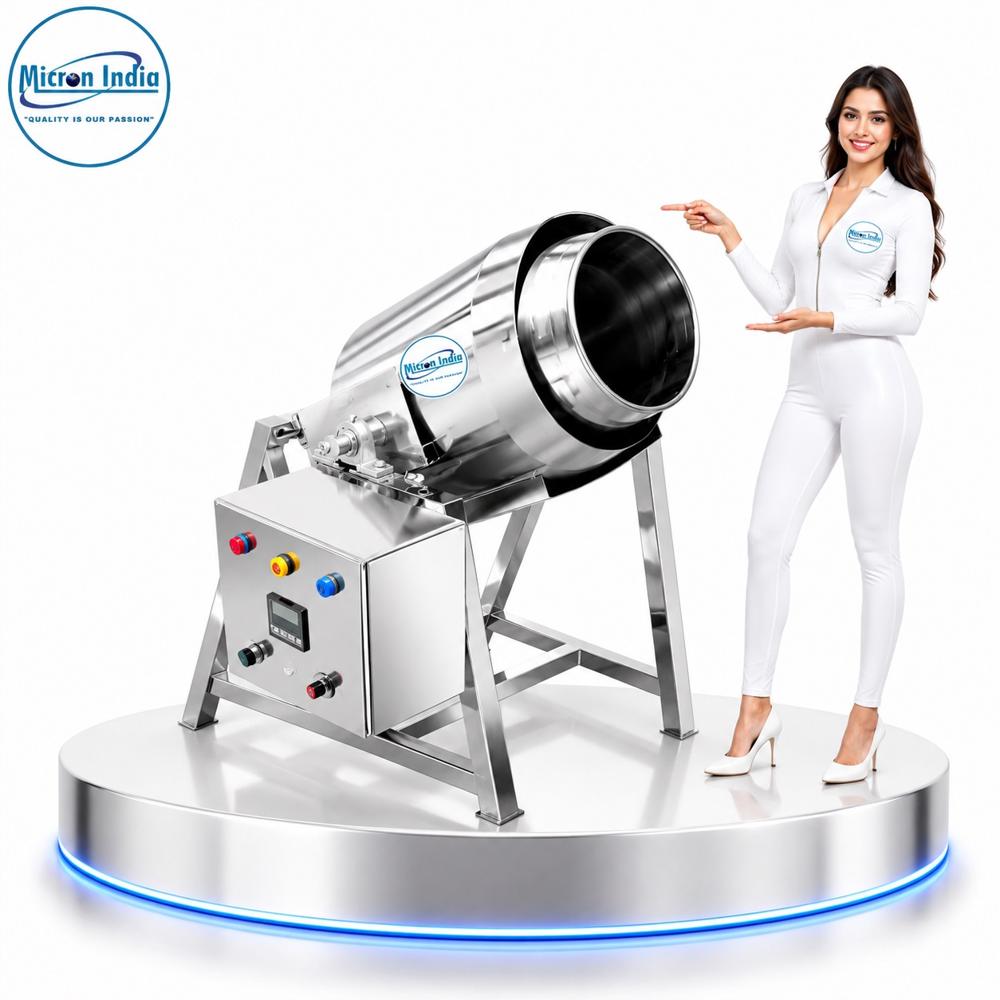

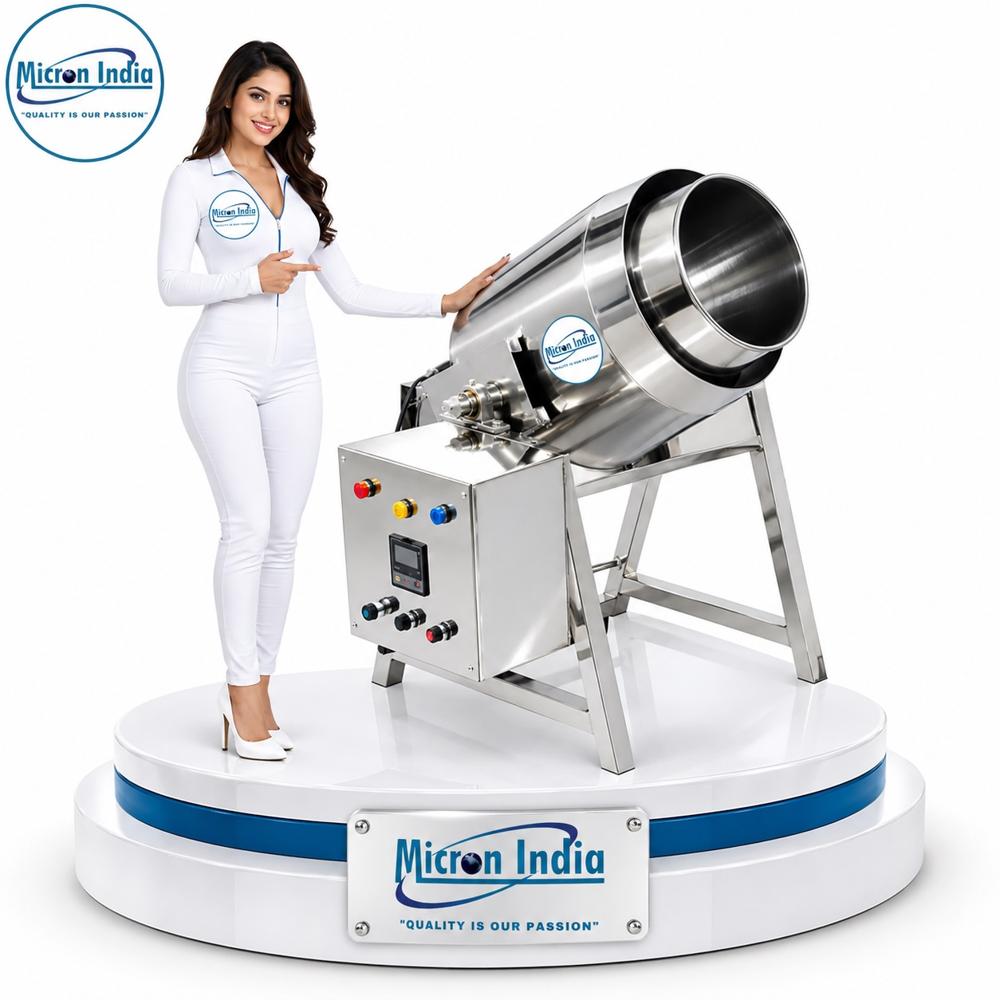

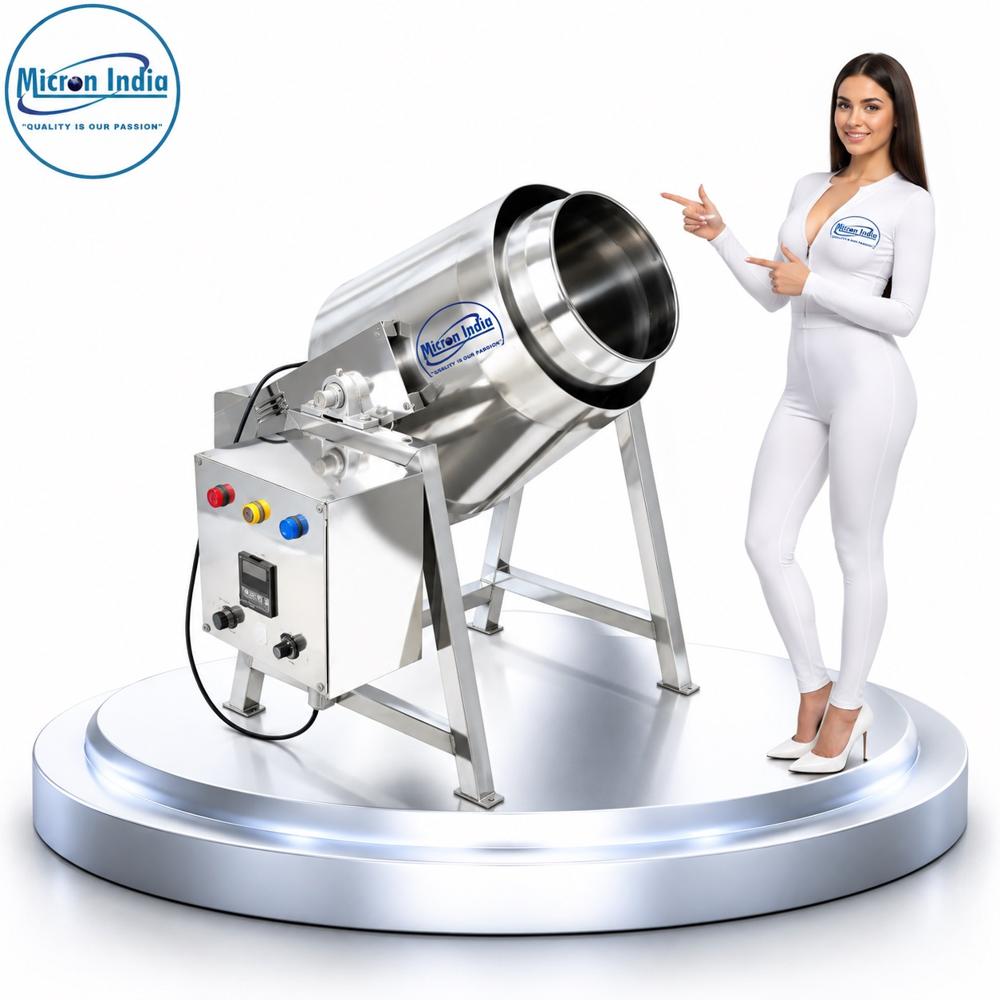

20LITER ELECTRIC ROASTER About

20 Liter Electric Roaster Typical Specifications

Capacity

• Drum Capacity: 20 Liters
• Recommended Batch Capacity: 58 kg/batch, depending on product bulk density
• Typical Roasting Time: 1530 minutes/batch
• Approximate Output: 1025 kg/hr

Construction

• Product Contact Parts: SS304 Stainless Steel
• Outer Body: SS304 or Mild Steel
• Roasting Drum: Heavy-duty SS304
• Insulation: High-temperature thermal insulation
• Finish: Smooth/mirror-polished product-contact surfaces

Heating System

• Heating Type: Electric
• Heater Capacity: 36 kW
• Temperature Range: Ambient to 250300C
• Temperature Control: Digital PID temperature controller
• Heating: Uniform heating around the roasting chamber

Drive System

• Drum Drive Motor: 0.5 HP
• Drum Speed: Approximately 820 RPM
• Gearbox: Reduction gearbox
• Power Supply: 230/415 V, 1/3 Phase, 50 Hz, depending on model

Approximate Dimensions

• Overall Length: 34 ft
• Overall Width: 22.5 ft
• Overall Height: 34 ft

Approximate Weight

• 80130 kg, depending on construction and heating arrangement

Recommended Installation Space

• Minimum Floor Space: 5 ft 4 ft
• Recommended Working Area: 6 ft 5 ft
• Minimum Room Height: 7 ft

Power Consumption

• Connected Load: Approximately 3.56.4 kW including heater and drive motor
• Maximum Electricity Consumption: Approximately 3.56.4 units/hour when operating continuously at full connected load.
• Actual consumption will normally be lower after reaching the set temperature because the temperature controller cycles the heaters.

Standard Features

• Heavy-duty rotating roasting drum
• Uniform electric heating
• Digital temperature control
• Adjustable drum rotation
• Thermal insulation for reduced heat loss
• Easy loading and unloading
• Tilting arrangement for discharge
• Easy cleaning and maintenance

Applications

• Peanuts and groundnuts
• Cashew and almonds
• Spices
• Seeds
• Pulses
• Grains
• Dry fruits
• Herbal products
• Food ingredients

Optional Accessories

• SS316 product-contact construction
• VFD for variable drum speed
• Automatic temperature control
• Automatic tilting/discharge
• Cooling arrangement
• Exhaust system
• Digital temperature indicator
• Customized hopper and discharge arrangement
