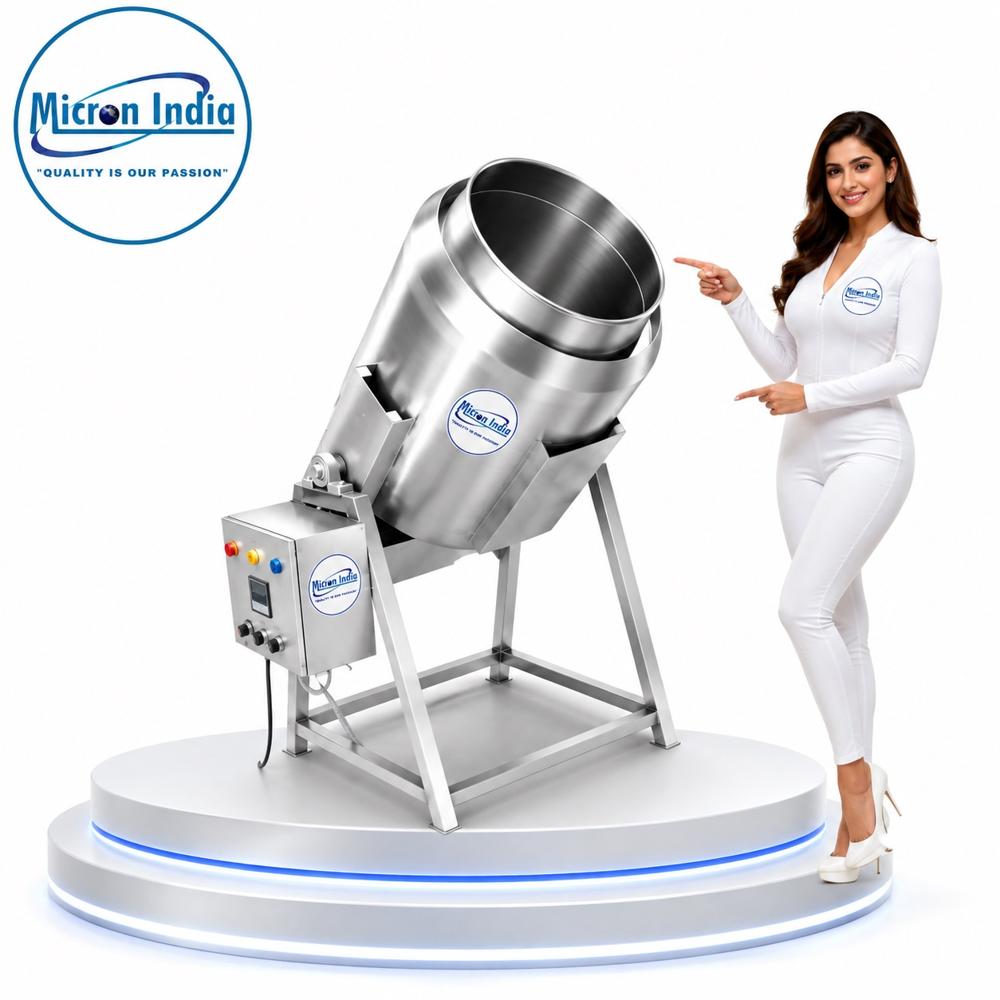

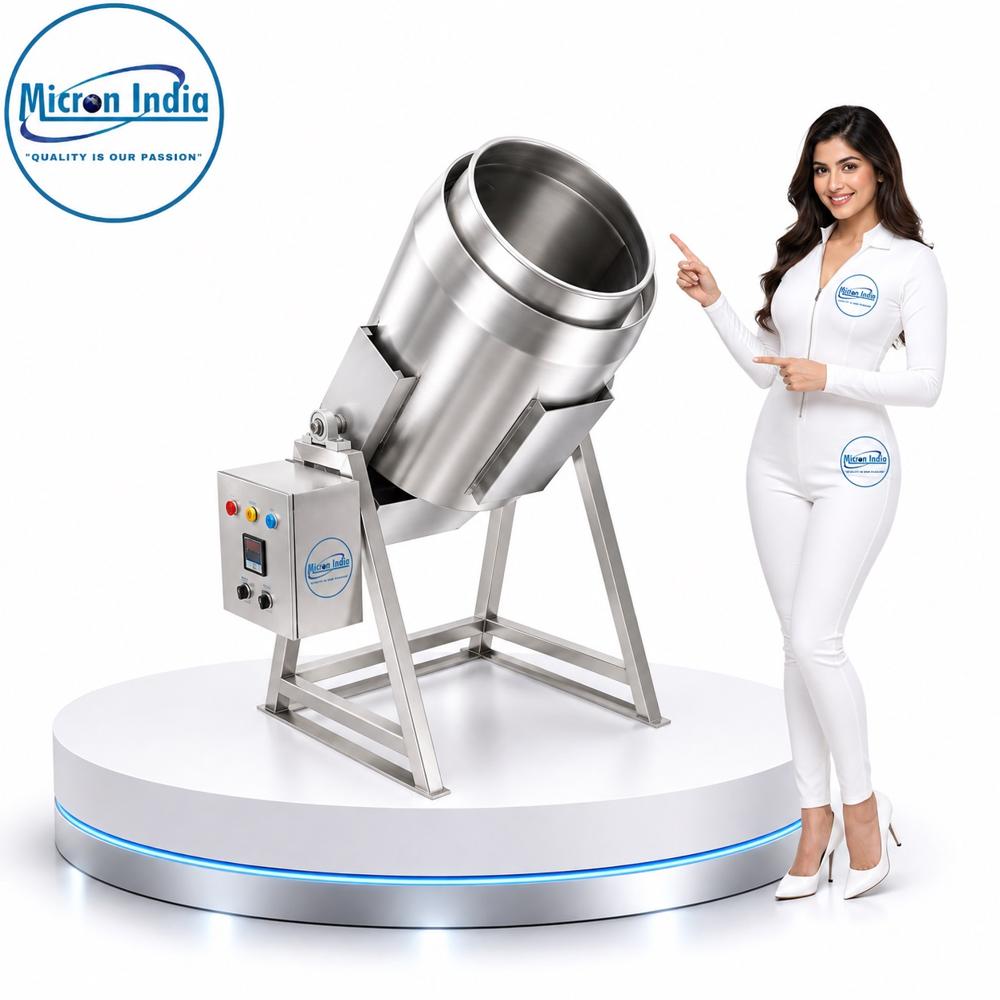

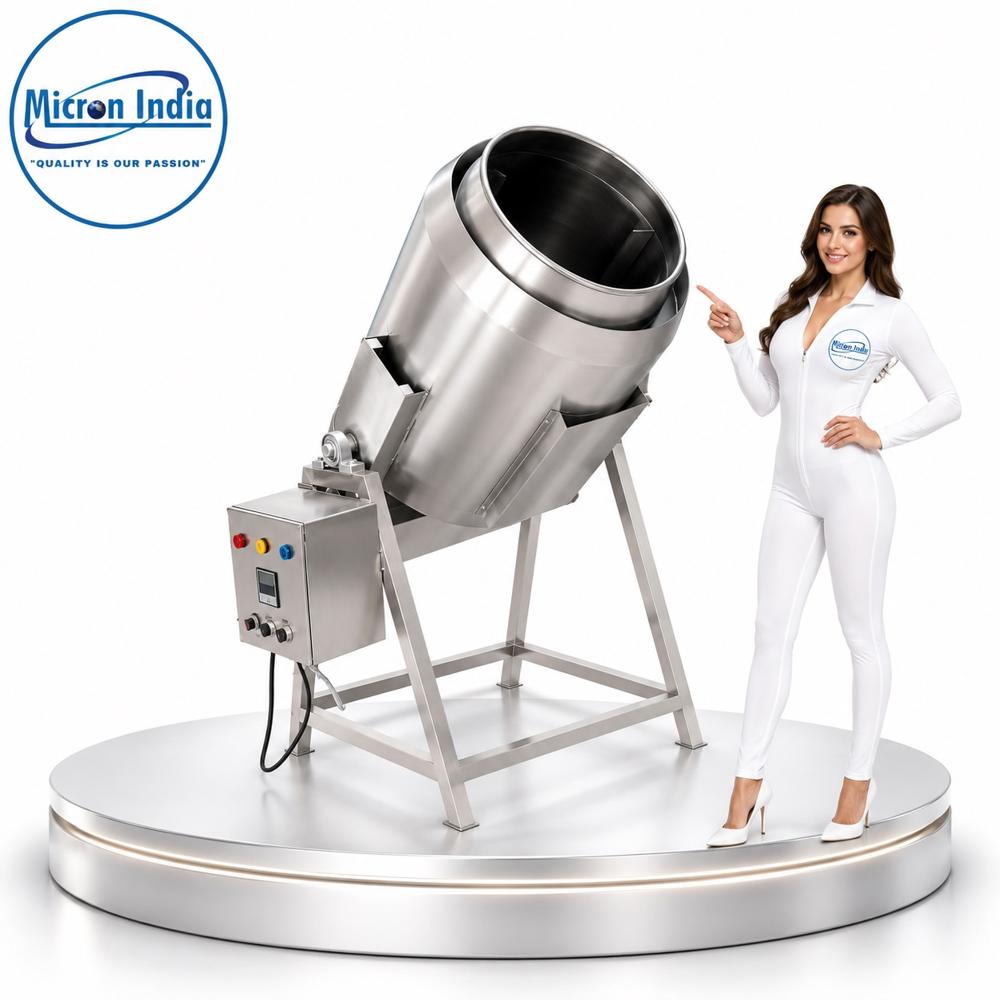

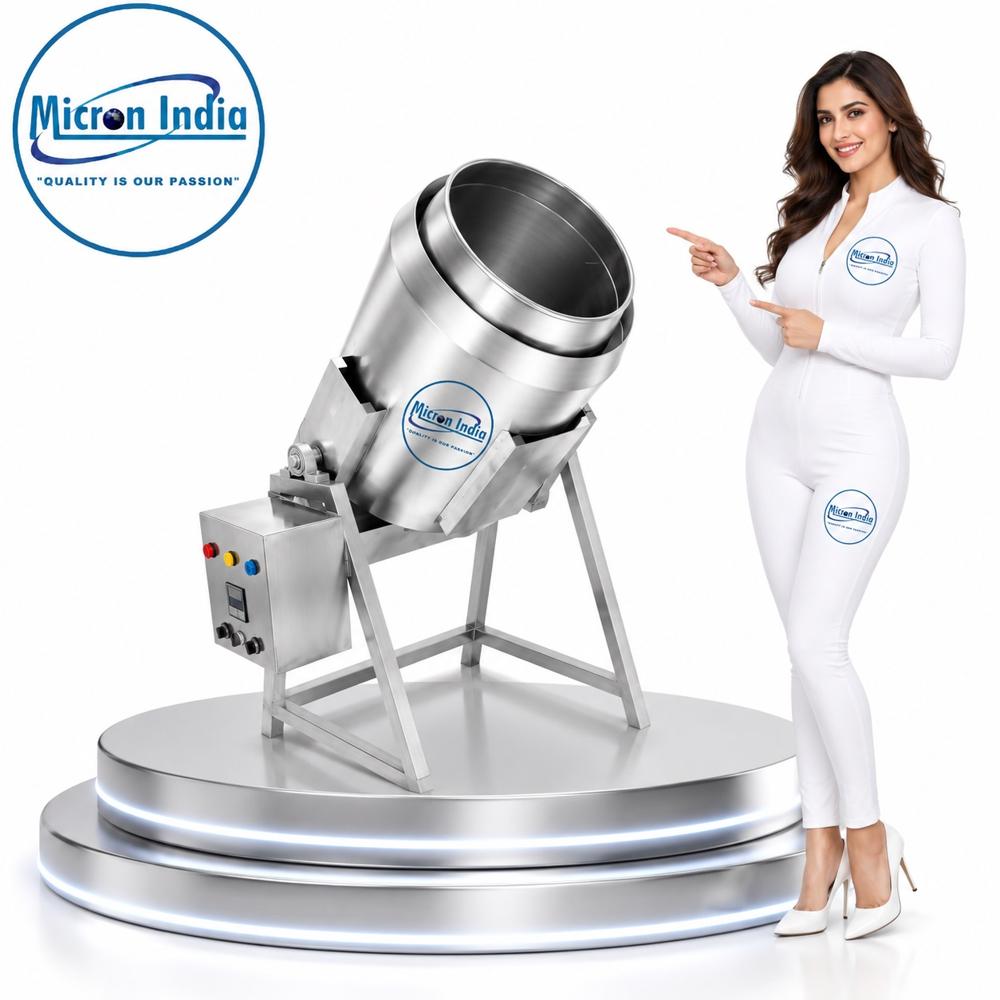

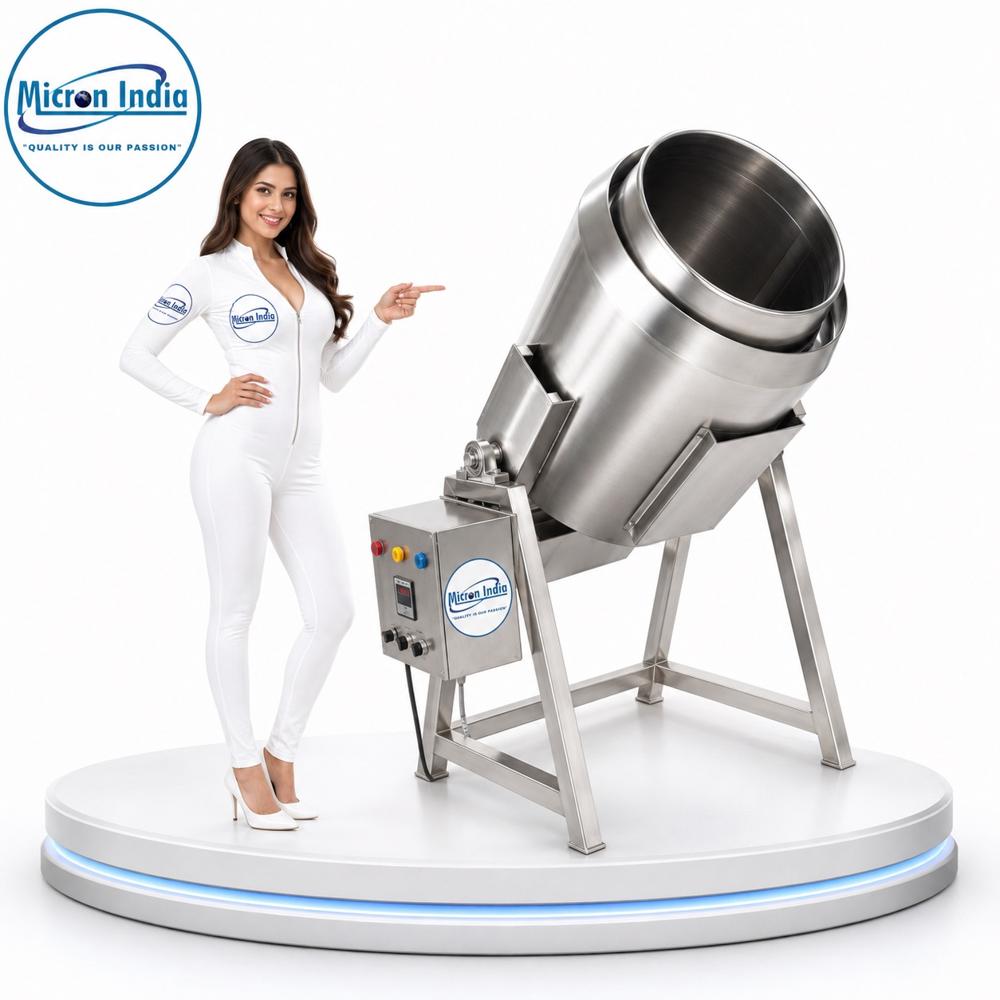

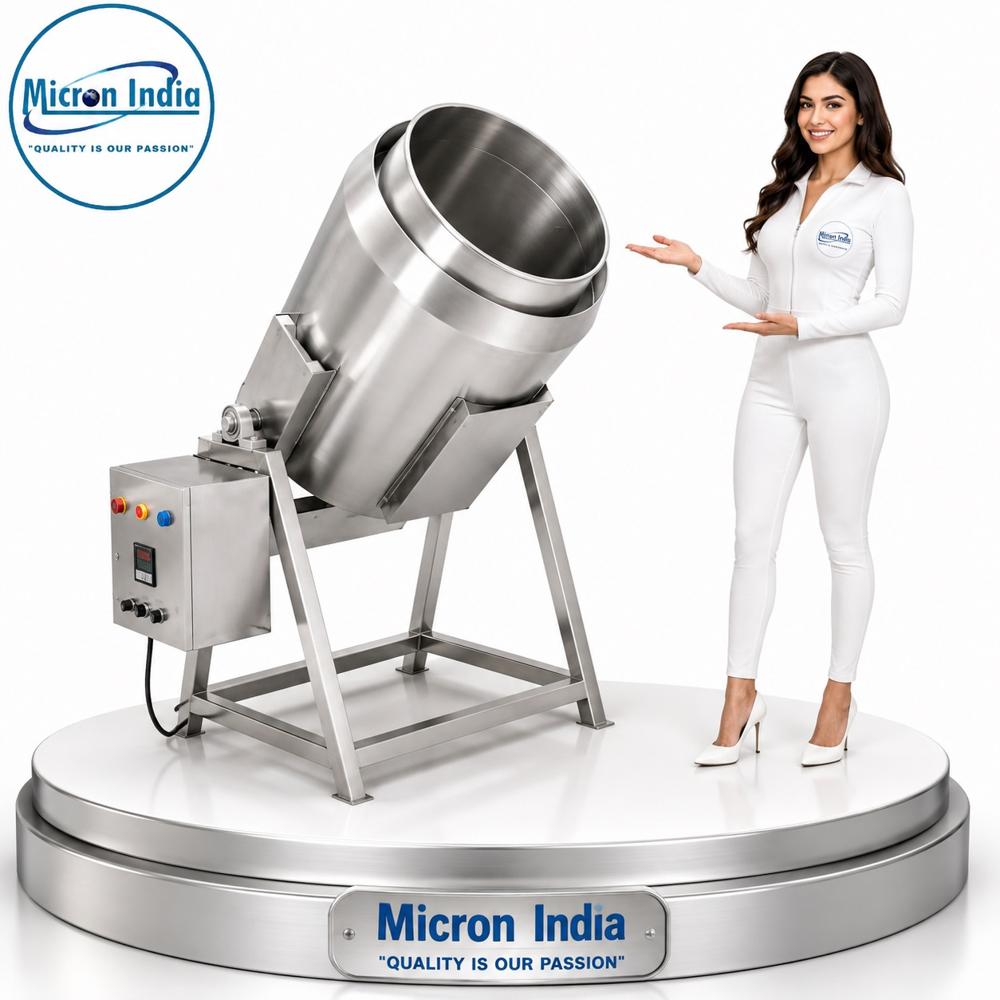

50LITER ELECTRIC ROASTER About

50 Liter Electric Roaster Typical Specifications

Capacity

• Drum Capacity: 50 Liters
• Recommended Batch Capacity: 1220 kg/batch, depending on product bulk density
• Typical Roasting Time: 1535 minutes/batch
• Approximate Output: 2560 kg/hr

Construction

• Product Contact Parts: SS304 Stainless Steel
• Outer Body: SS304 or Mild Steel
• Roasting Drum: Heavy-duty SS304
• Insulation: High-temperature thermal insulation
• Finish: Mirror-polished product-contact surfaces

Heating System

• Heating Type: Electric
• Heater Capacity: 69 kW
• Temperature Range: Ambient to 250300C
• Temperature Control: Digital PID temperature controller
• Heating Arrangement: Uniform heating around the roasting chamber

Drive System

• Drum Drive Motor: 0.51 HP
• Drum Speed: Approximately 820 RPM
• Gearbox: Heavy-duty reduction gearbox
• Power Supply: 415 V, 3 Phase, 50 Hz

Approximate Dimensions

• Overall Length: 45 ft (12001500 mm)
• Overall Width: 2.53 ft (750900 mm)
• Overall Height: 45 ft (12001500 mm)

Approximate Weight

• 150220 kg, depending on construction and heating arrangement

Power Consumption

• Connected Load: Approximately 6.49.75 kW, including heater and drive motor
• Maximum Electricity Consumption: Approximately 6.49.75 units/hour at full connected load.
• Actual consumption will generally be lower once the required temperature is reached because the temperature controller cycles the heaters.

Recommended Installation Space

• Minimum Floor Space: 6 ft 5 ft
• Recommended Working Area: 8 ft 7 ft
• Minimum Room Height: 8 ft

Standard Features

• Heavy-duty rotating roasting drum
• Uniform electric heating
• Digital temperature control
• Adjustable drum rotation
• High-temperature insulation
• Easy loading and unloading
• Tilting arrangement for product discharge
• Easy cleaning and maintenance
• Safety thermostat and overload protection

Applications

• Peanuts and groundnuts
• Cashew and almonds
• Spices
• Seeds
• Pulses
• Grains
• Dry fruits
• Herbal products
• Food ingredients

Optional Accessories

• SS316 product-contact parts
• VFD for variable drum speed
• Automatic temperature control
• Automatic tilting/discharge
• Cooling arrangement
• Exhaust/fume outlet
• Digital temperature indicator
• Customized hopper and discharge arrangement
