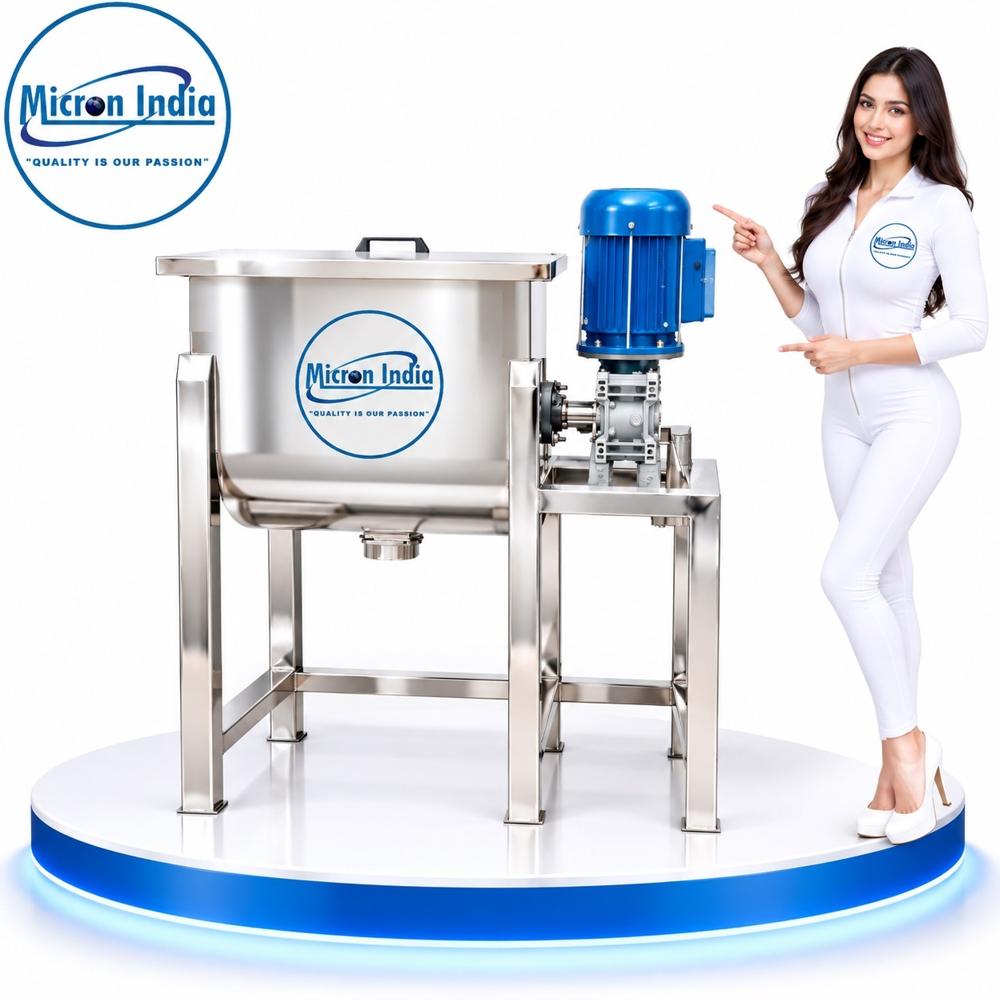

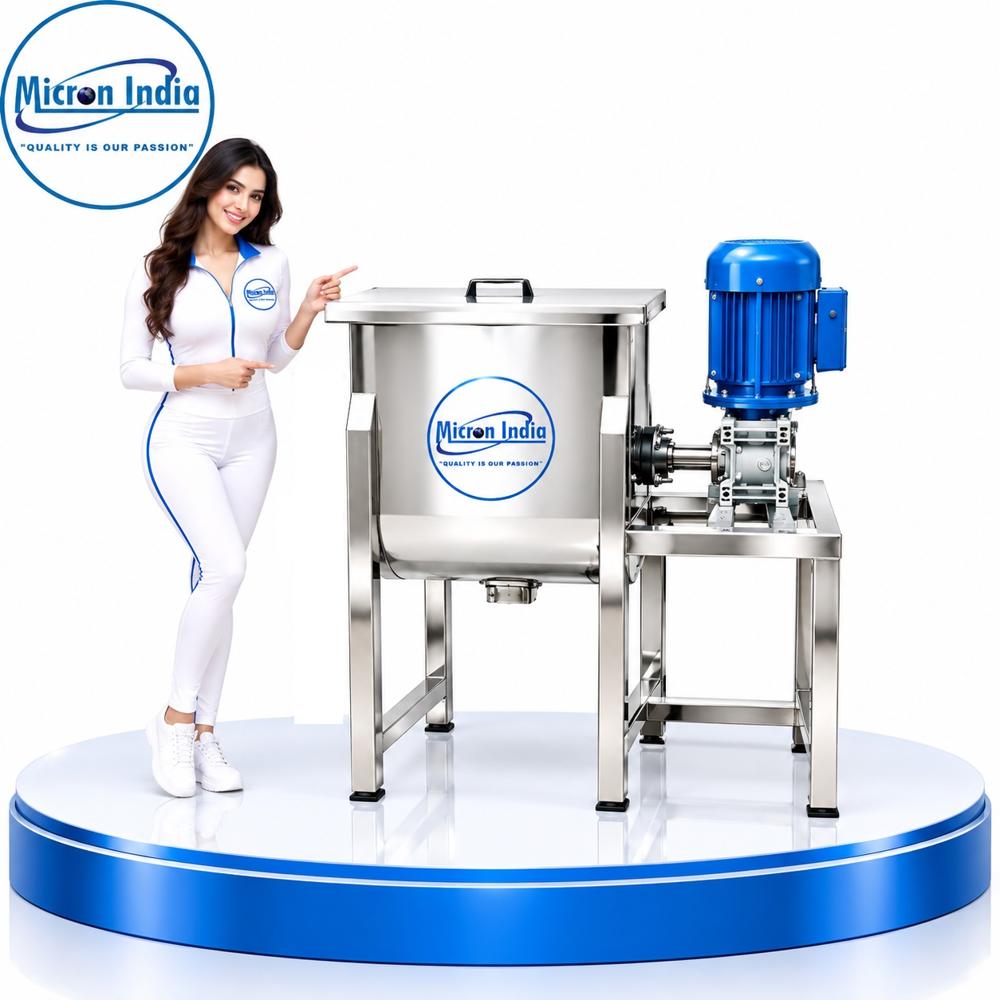

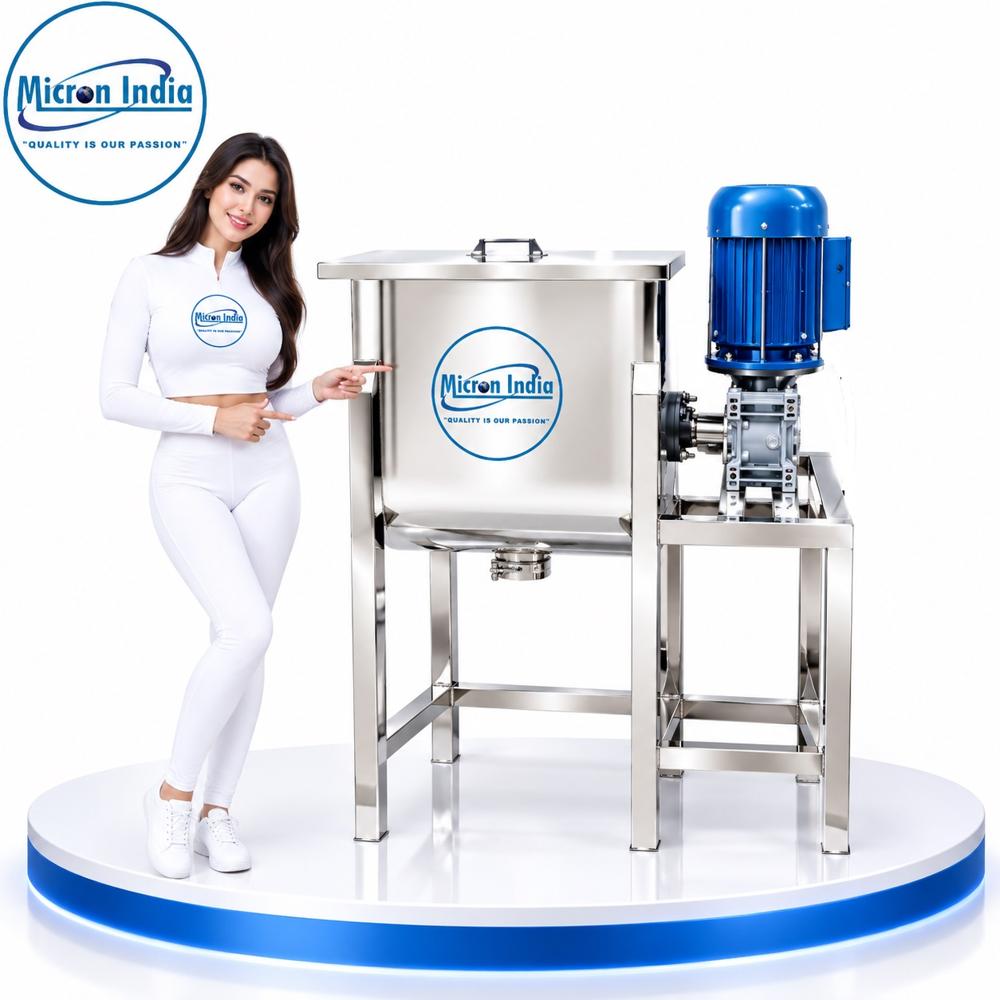

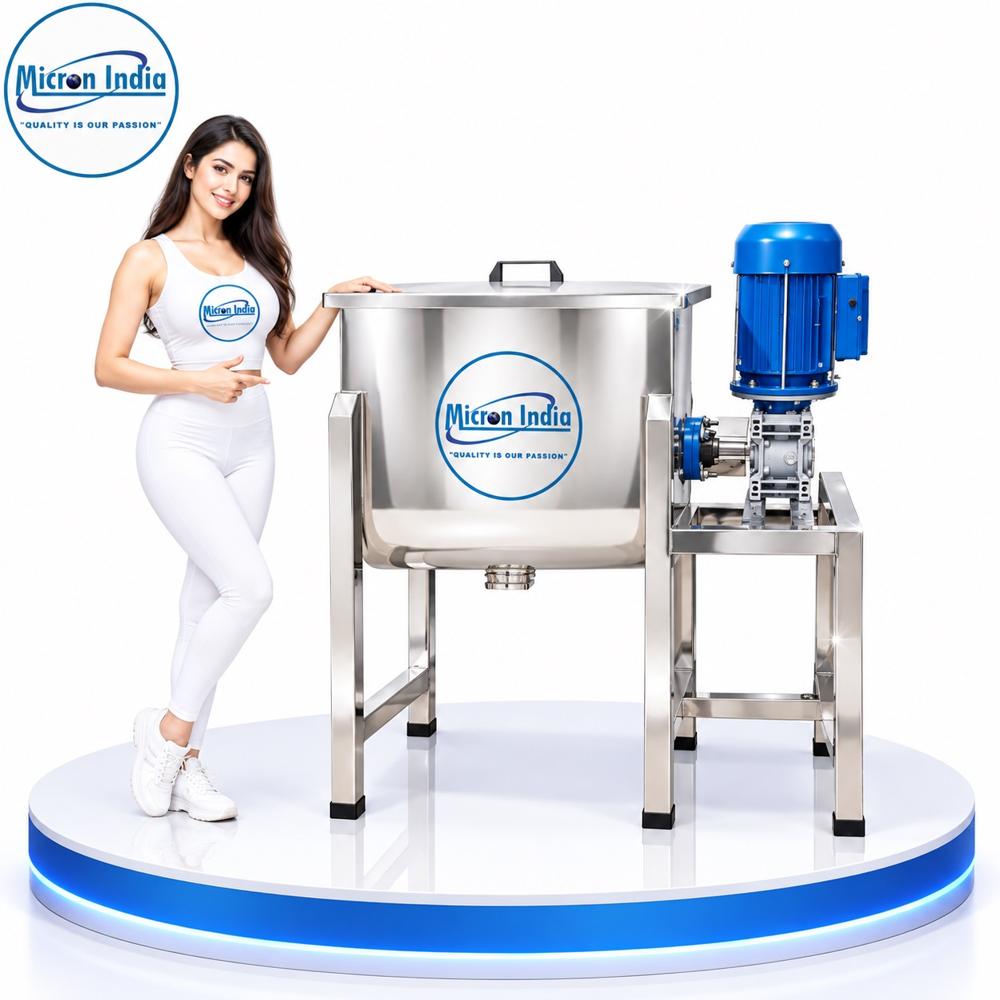

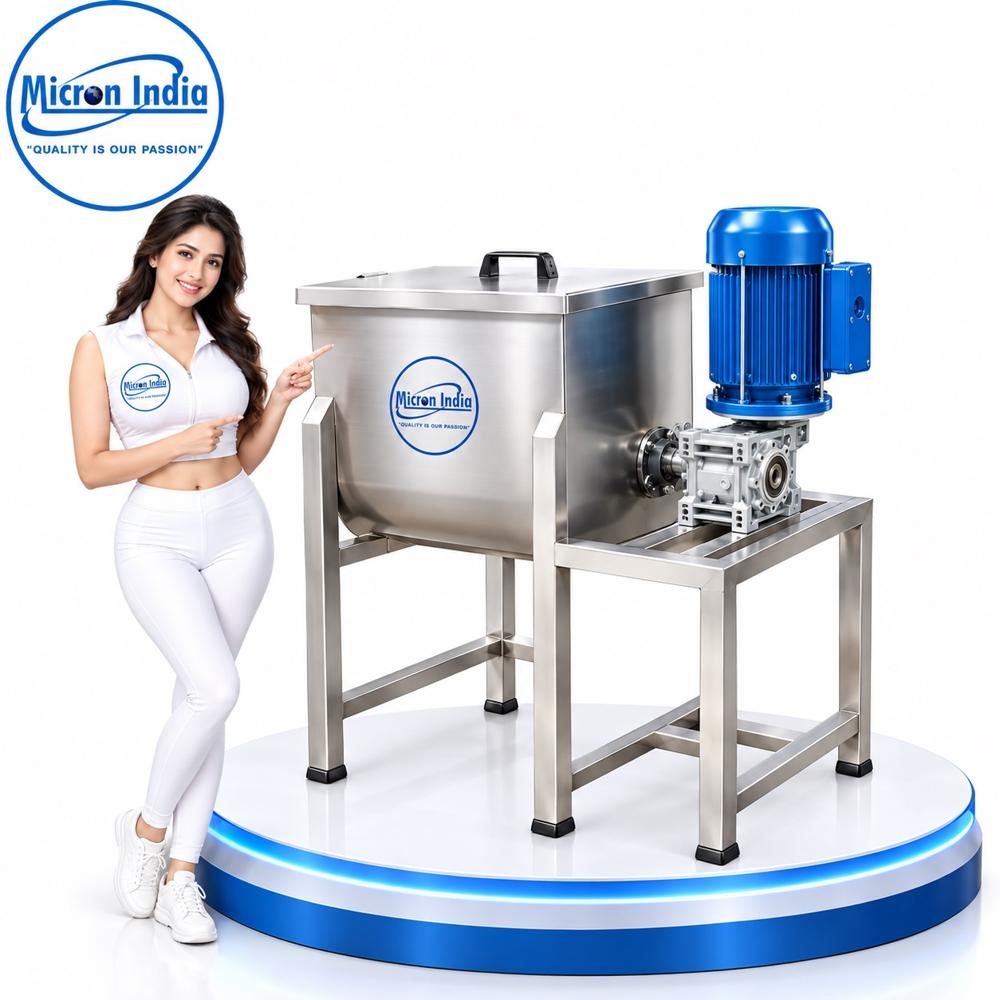

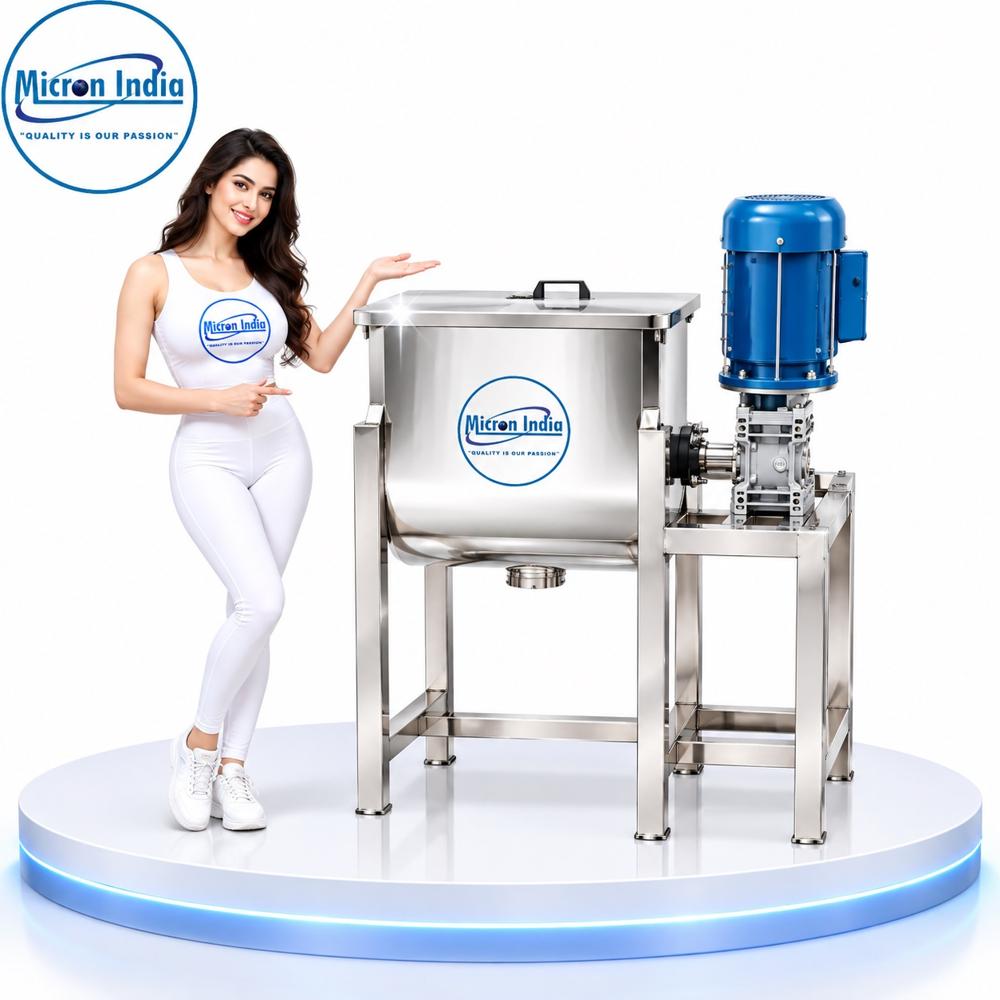

50KG SS RIBBON BLENDER Specification

Drive Type
DIRECT

Application
MIXING

Motor Power
2 Horsepower (HP)

Frequency
50 Hertz (HZ)

Mixing Speed
30 RPM

Orientation
HORIZONTAL

Blade Type
RIBBON

Noise Level
0 db

Surface Finish
MATT

Voltage
440 Volt (v)

Mounting Type
Portable

Features
SILENT

Type
BLENDER

Material
POWDER

Capacity
50 Kg

Computerized
No

Automatic Grade
Manual

Cooling System
Air Cooling

Power(W)
2 Horsepower (HP)

Shape of Tank
U TYPE

Loading Capacity
50 Kilograms (kg)

Mixer Type
RIBBON BLENDER

Size
50KG

Width
3 Foot (ft)

Dimension (L*W*H)
6*3*6 Foot (ft)

Weight (kg)
50 Kilograms (kg)

Color
SILVER

Warranty
1 YEAR

50KG SS RIBBON BLENDER Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About 50KG SS RIBBON BLENDER

50 KG RIBBON BLENDER TECHNICAL SPECIFICATION

Parameter	Typical Specification
Machine Type	Horizontal Ribbon Blender
Batch Capacity	50 KG/Batch*
Gross Volume	Approx. 100125 Liters
Working Volume	Approx. 6080 Liters
Construction	SS304
Product Contact Parts	SS304
Ribbon Type	Double Helical Ribbon
Main Motor	Approx. 2 HP
Ribbon Speed	Approx. 2035 RPM
Gearbox	Heavy-Duty Helical/Worm Gearbox
Power Supply	415 V, 3 Phase, 50 Hz
Mixing Time	Approx. 1020 min/batch*
Discharge	Bottom Centre / Side Discharge
Discharge Valve	Butterfly / Flush Bottom Valve
Inlet	Top Loading Inlet with Cover
Safety	Safety Guard / Interlock as required
Finish	SS Matt / Mirror Polish
Approx. Weight	200300 KG
Approx. Dimensions	55.5 ft L 2.53 ft W 44.5 ft H

MAIN FEATURES

Uniform and efficient powder mixing
Double-helical ribbon arrangement
Heavy-duty gearbox for continuous operation
SS304 hygienic product-contact construction
Suitable for pharmaceutical and food applications
Easy loading and bottom discharge
Easy cleaning and maintenance
Low-speed, high-torque mixing operation
Optional SS316 contact parts available

SUITABLE APPLICATIONS

Pharmaceutical powders Food powders Nutraceuticals Herbal products Chemical powders Cosmetic powders Dry granules

Quotation note: The above dimensions, motor rating, working volume and mixing time are typical values. Final specifications should be confirmed according to powder bulk density, required batch size, product characteristics and discharge arrangement.
