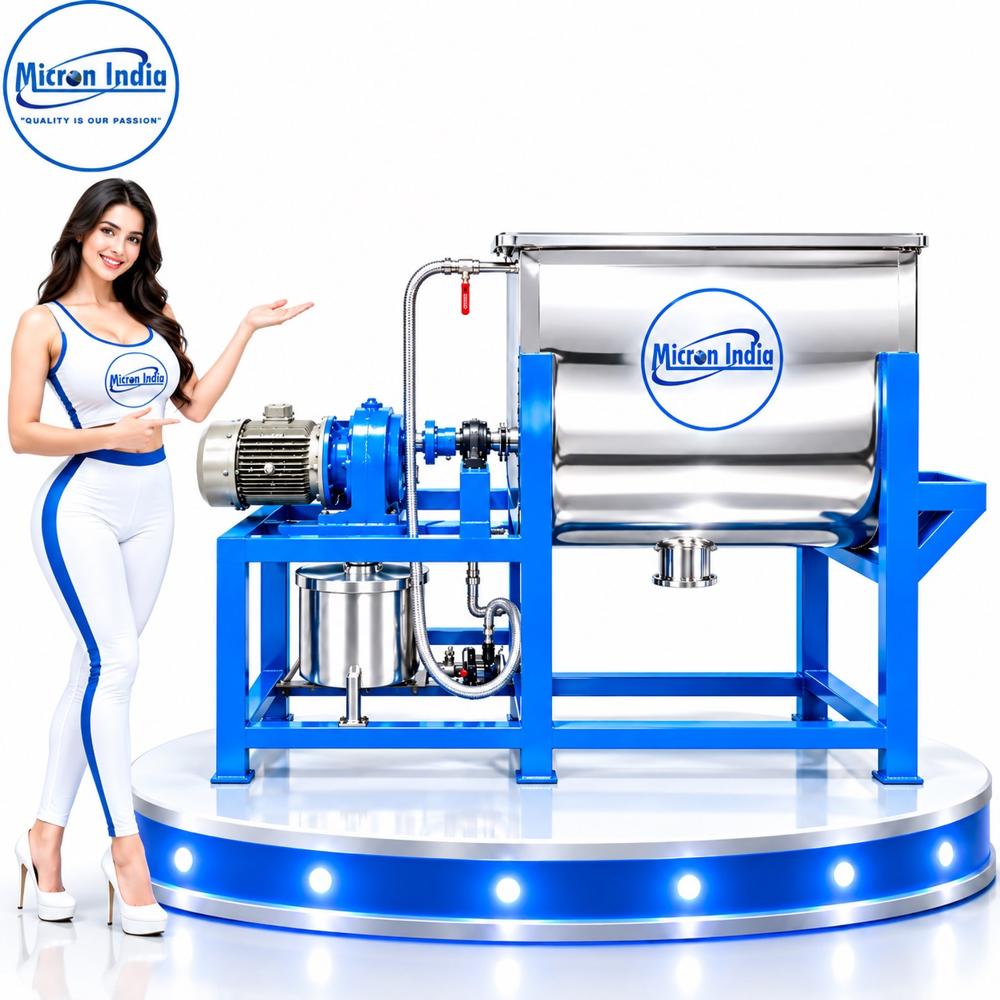

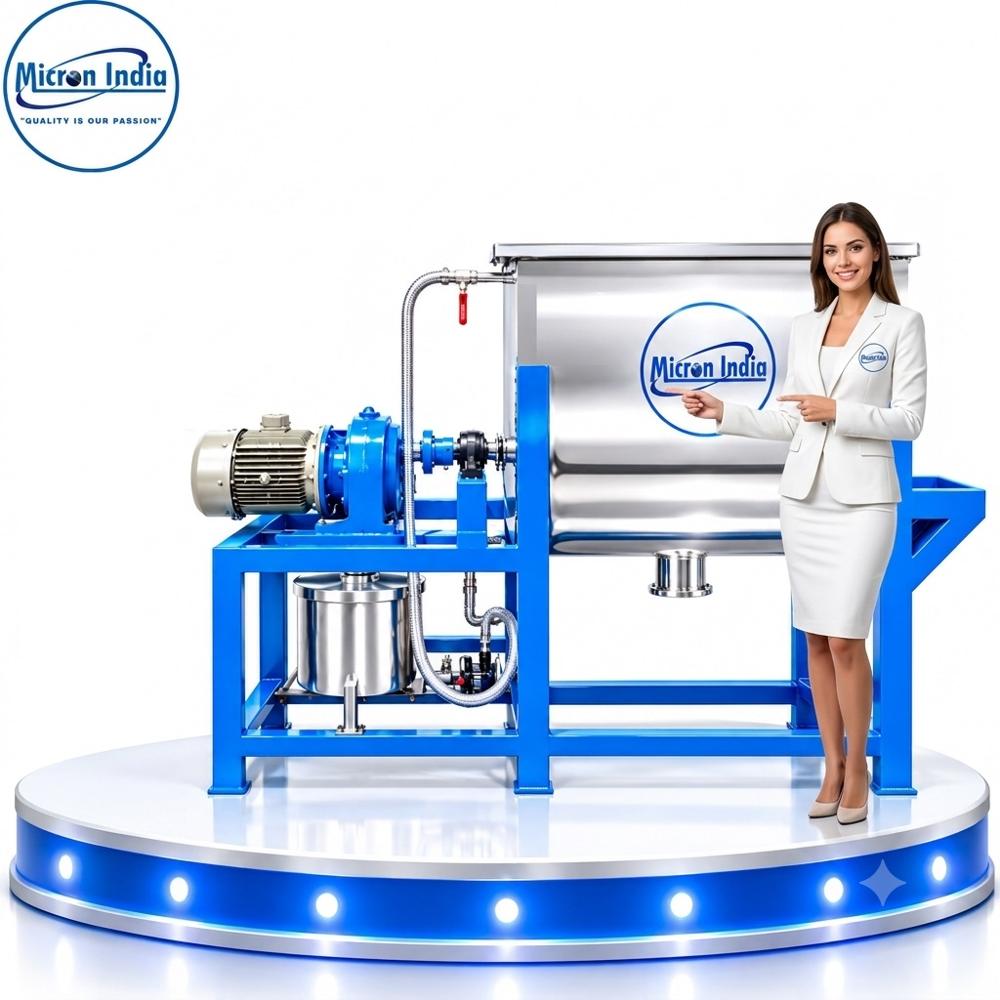

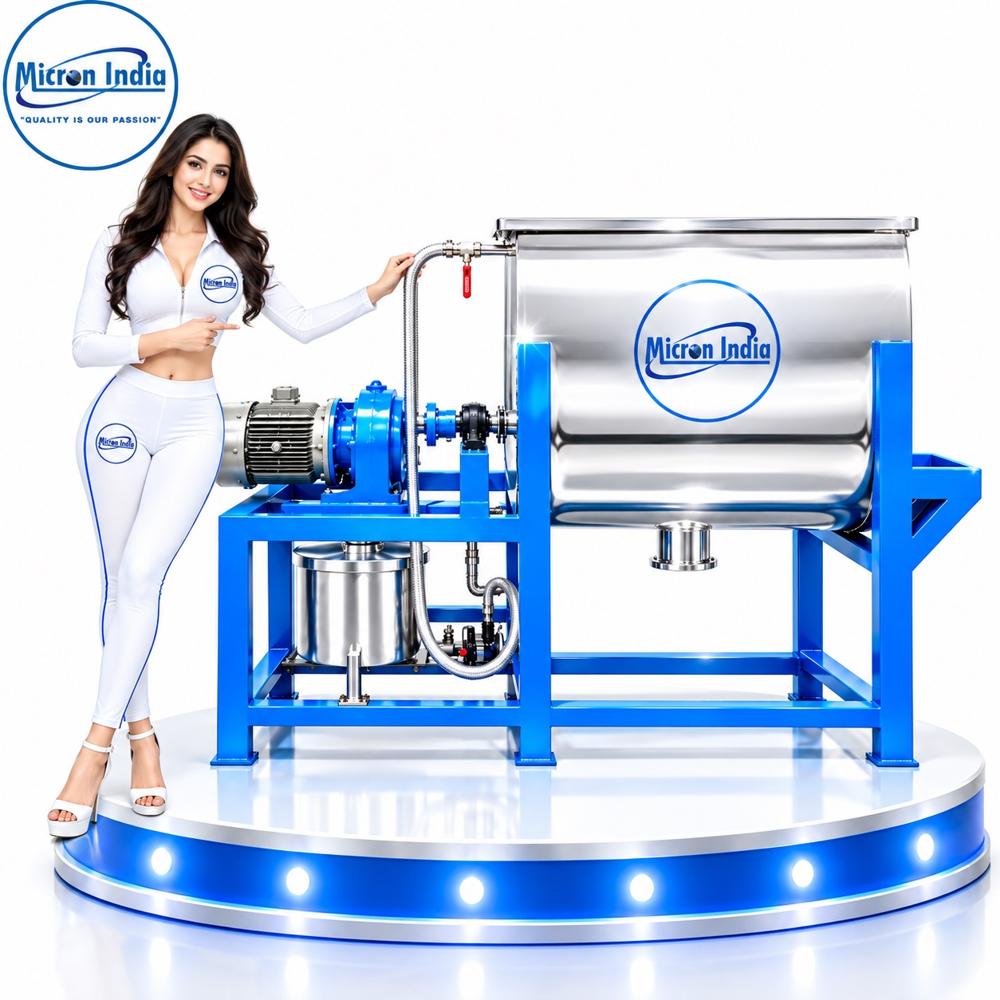

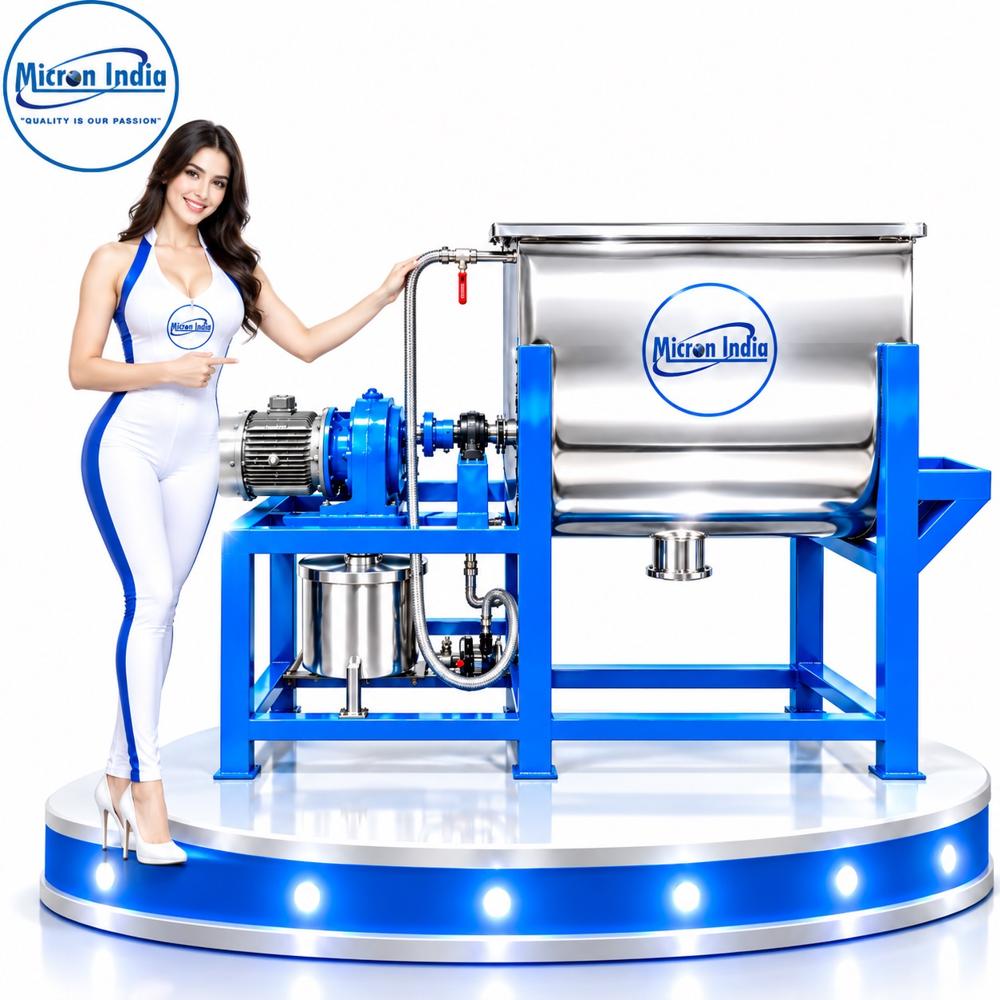

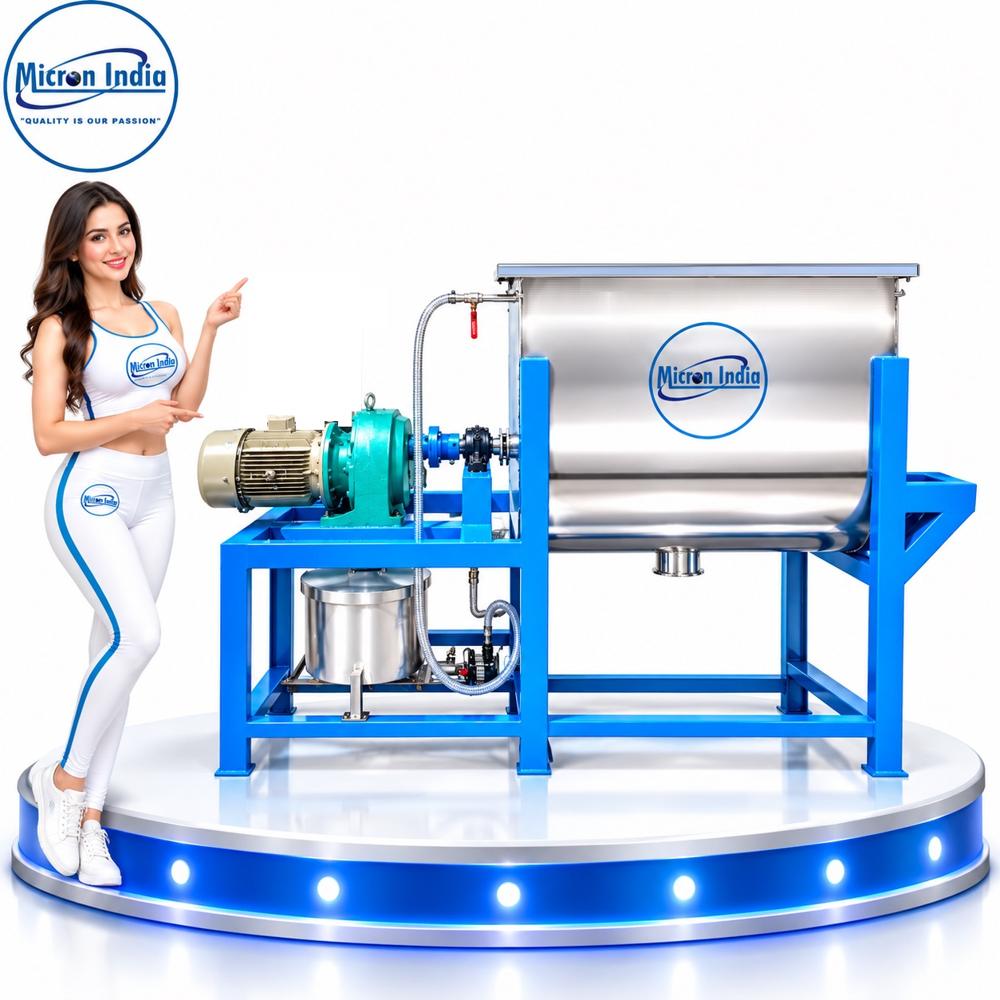

300KG RIBBON BLENDER CENTER DISCHARGE WITH SPRAY SYSTEM

Price 160000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

300KG RIBBON BLENDER CENTER DISCHARGE WITH SPRAY SYSTEM Specification

Noise Level
0 db

Motor Power
5 Horsepower (HP)

Drive Type
DIRECT

Mixing Speed
30 RPM

Surface Finish
MATT

Voltage
440 Volt (v)

Features
SILENT

Application
MIXING

Orientation
HORIZONTAL

Mounting Type
Fixed

Frequency
50 Hertz (HZ)

Blade Type
RIBBON

Type
BLENDER

Material
SS304

Capacity
300 Kg

Computerized
No

Automatic Grade
Manual

Cooling System
Air Cooling

Power(W)
5 Horsepower (HP)

Shape of Tank
U

Loading Capacity
300 Kilograms (kg)

Mixer Type
RIBBON BLENDER

Size
300KG

Width
1000 Millimeter (mm)

Dimension (L*W*H)
6*3*6 Foot (ft)

Weight (kg)
150 Kilograms (kg)

Color
blue

Warranty
1 year

300KG RIBBON BLENDER CENTER DISCHARGE WITH SPRAY SYSTEM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
20 Days

About 300KG RIBBON BLENDER CENTER DISCHARGE WITH SPRAY SYSTEM

300 KG RIBBON BLENDER TECHNICAL SPECIFICATION

300 KG Ribbon Blender is a heavy-duty horizontal powder mixing machine designed for uniform blending of pharmaceutical powders, food ingredients, chemicals, nutraceuticals, fertilizers and other dry materials.

Specification	Details
Machine Name	300 KG Ribbon Blender
Batch Capacity	Approx. 300 KG*
Working Volume	Approx. 6070% of total volume
Contact Parts	SS 304 / SS 316
Outer Construction	SS / MS as required
Mixing Type	Horizontal Ribbon Mixing
Ribbon Type	Double Helical Ribbon
Drive System	Geared Motor
Motor Power	Approx. 1015 HP*
Gearbox	Heavy-Duty Gearbox
Discharge	Bottom / Side Discharge
Discharge Valve	Butterfly / Slide / Pneumatic
Charging	Top Charging Inlet
Mixing Speed	As per product requirement
Control	DOL / Star-Delta / VFD
Finish	SS Matt / Mirror Finish
Safety	Drive Guard & Safety Arrangement
Mixing Time	Approx. 515 minutes*

*Final motor power, dimensions and batch capacity should be selected according to material bulk density, powder characteristics and required production batch.

KEY FEATURES

Heavy-duty industrial construction.
Uniform and homogeneous mixing.
Double-helical ribbon arrangement for efficient powder movement.
Suitable for pharmaceutical and food-grade applications.
SS 304/316 product-contact construction available.
Easy charging and quick discharge.
Low-maintenance geared drive.
VFD option available for variable-speed mixing.
Customized design available according to production requirements.

APPLICATIONS

Pharmaceutical: Powder blends, granules, excipients
Food: Spices, flour, seasoning and premixes
Chemical: Powders, additives and compounds
Nutraceutical: Protein and supplement powders
Other: Fertilizer, animal feed and industrial dry powders.
