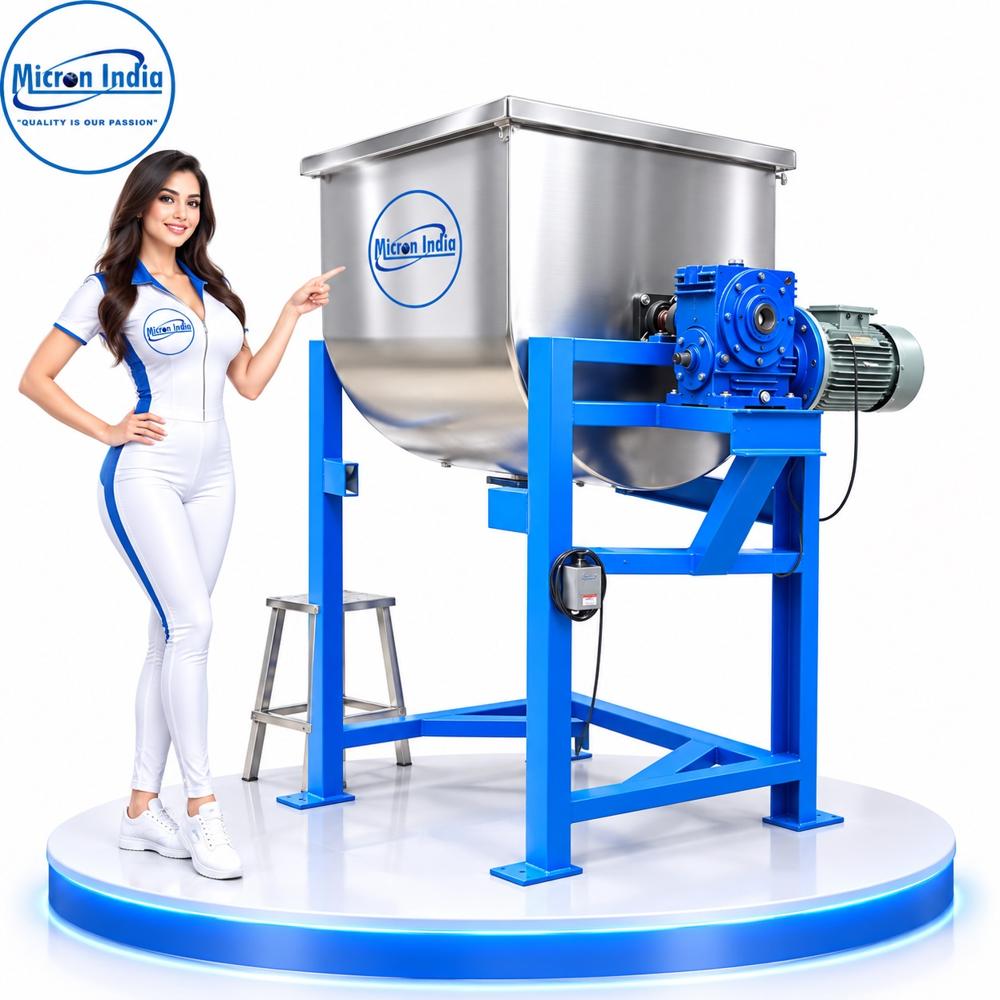

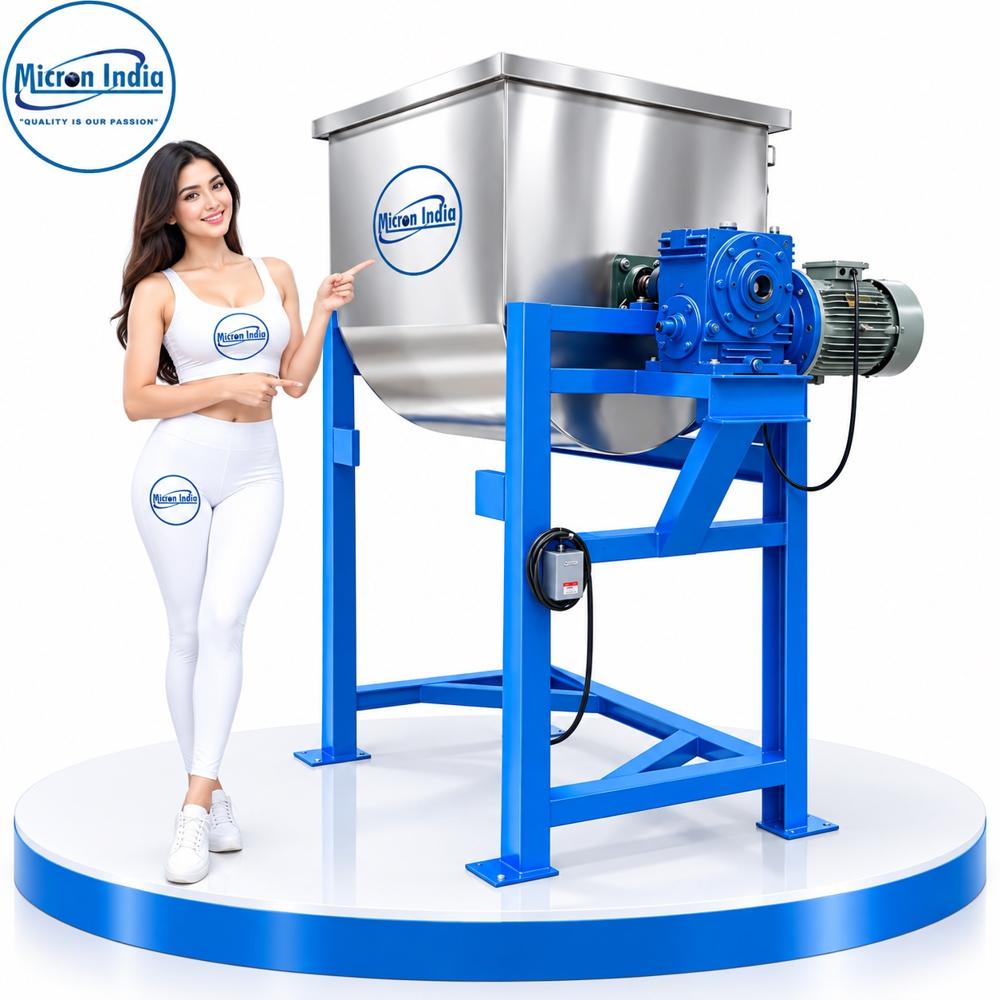

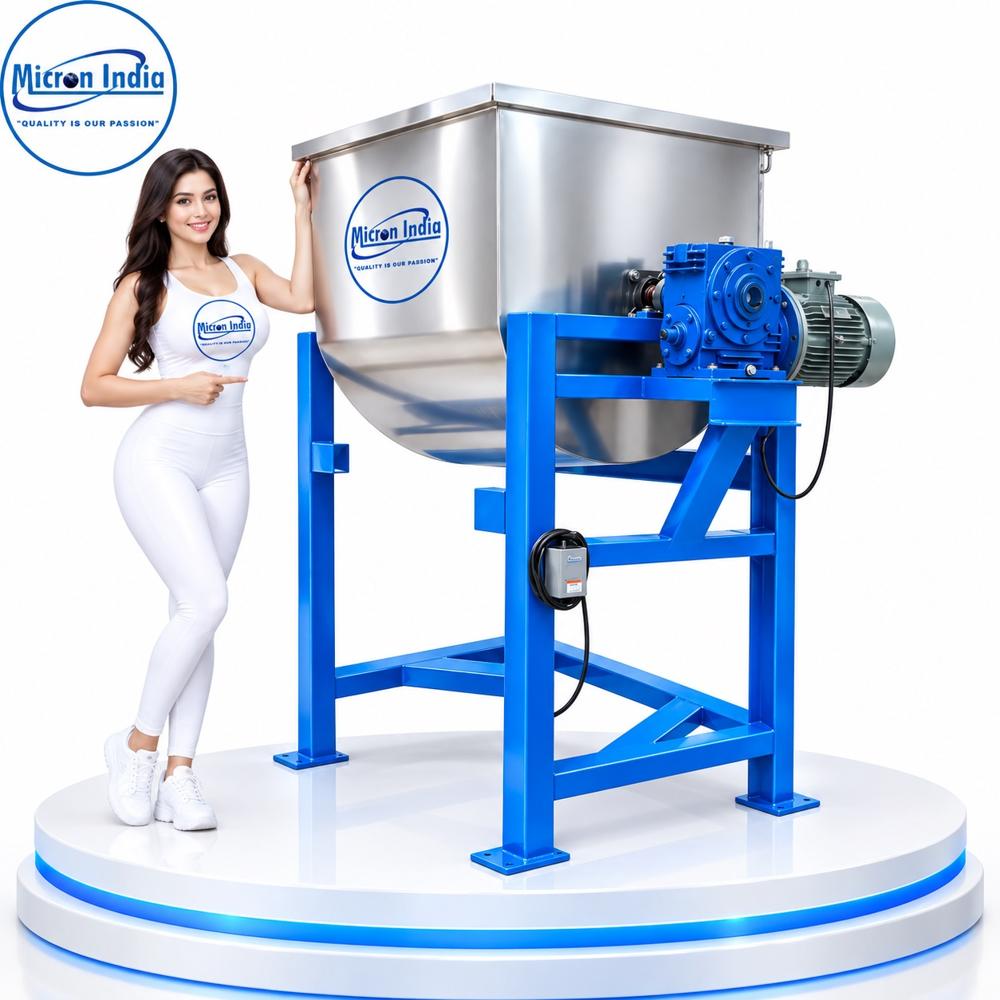

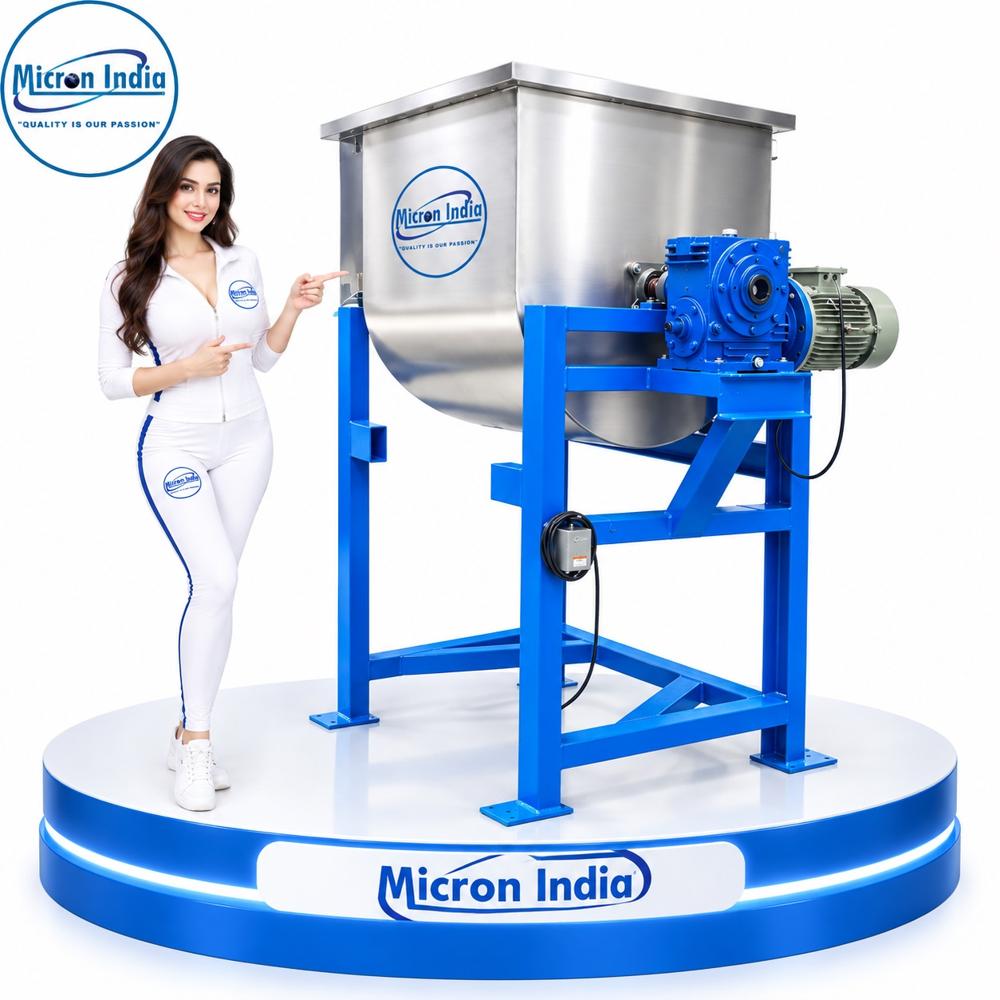

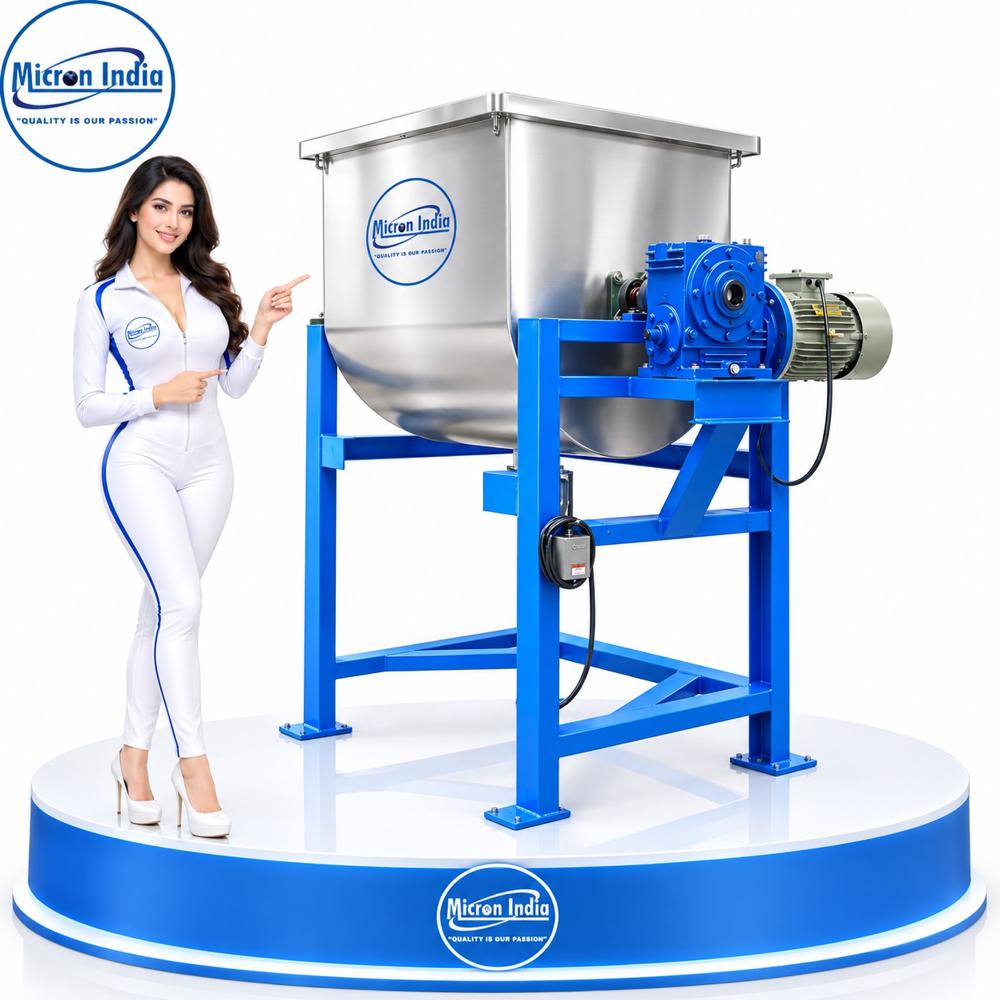

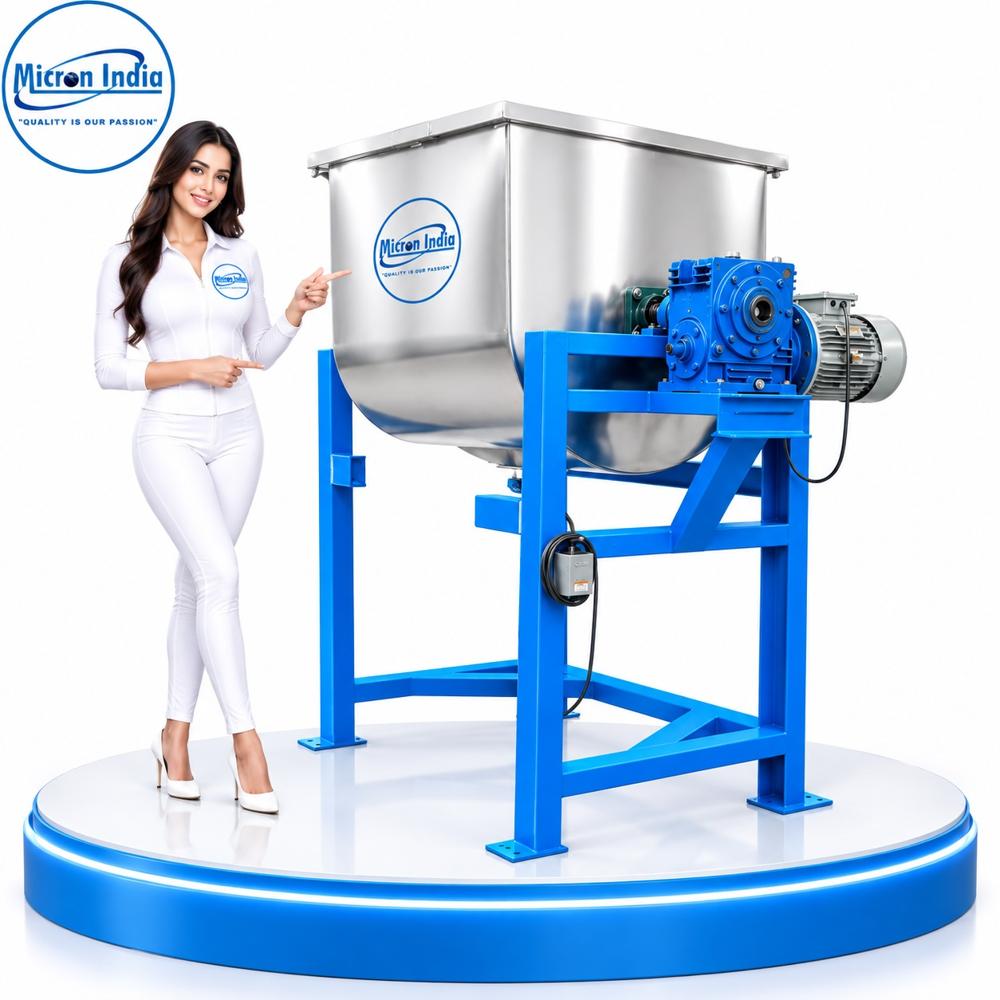

200kg Ribbon Blender

Name: 200kg Ribbon Blender
Brand: S.K. Enterprises
Price: 120000.0 INR
Availability: InStock

Price 120000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

200kg Ribbon Blender Specification

Surface Finish
MATT

Application
MIXING

Frequency
50 Hertz (HZ)

Drive Type
DIRECT

Voltage
440 Volt (v)

Features
SILENT

Orientation
HORIZONTAL

Blade Type
RIBBON

Mounting Type
Fixed

Mixing Speed
30 RPM

Motor Power
5 Horsepower (HP)

Noise Level
db

Type
BLENDER

Material
SS304

Capacity
200 Kg

Computerized
No

Automatic Grade
Semi-Automatic

Cooling System
Air Cooling

Power(W)
5 Horsepower (HP)

Shape of Tank
U

Loading Capacity
200 Kilograms (kg)

Mixer Type
RIBBON

Size
200KG

Width
5 Foot (ft)

Dimension (L*W*H)
5*4*5 Foot (ft)

Weight (kg)
150 Kilograms (kg)

Color
SILVER

Warranty
1 YEAR

200kg Ribbon Blender Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
15 Days

About 200kg Ribbon Blender

200 KG RIBBON BLENDER TECHNICAL SPECIFICATION

Parameter	Typical Specification
Machine Type	Horizontal Ribbon Blender
Batch Capacity	200 KG/Batch*
Gross Volume	Approx. 400500 Liters
Working Volume	Approx. 240320 Liters
Construction	SS304
Product Contact Parts	SS304
Ribbon Arrangement	Double Helical Ribbon
Main Motor	Approx. 57.5 HP
Ribbon Speed	Approx. 2035 RPM
Gearbox	Heavy-Duty Gearbox
Power Supply	415 V, 3 Phase, 50 Hz
Mixing Time	Approx. 1020 Minutes/Batch*
Discharge	Bottom Centre Discharge
Discharge Valve	Butterfly / Flush Bottom Valve
Top Cover	Hinged / Removable Cover
Safety	Safety Guard / Interlock, as required
Finish	SS Matt / Mirror Polish
Approx. Weight	500750 KG
Approx. Dimensions	78 ft L 3.54 ft W 56 ft H

MAIN FEATURES

Heavy-duty construction for 200 KG batch production
Double-helical ribbon arrangement for uniform mixing
High-torque gearbox drive
SS304 hygienic product-contact surfaces
Efficient mixing of powders and dry granules
Bottom discharge for easy product unloading
Easy cleaning and maintenance
SS316 product-contact parts available as an option
Suitable for pharmaceutical, food, chemical and nutraceutical applications

SUITABLE PRODUCTS

Pharmaceutical powders Food powders Nutraceuticals Herbal products Chemical powders Cosmetic powders Dry granules

* Capacity and working volume depend on bulk density. Final motor HP, vessel dimensions, ribbon speed and mixing time should be selected according to the actual product and required batch capacity.
