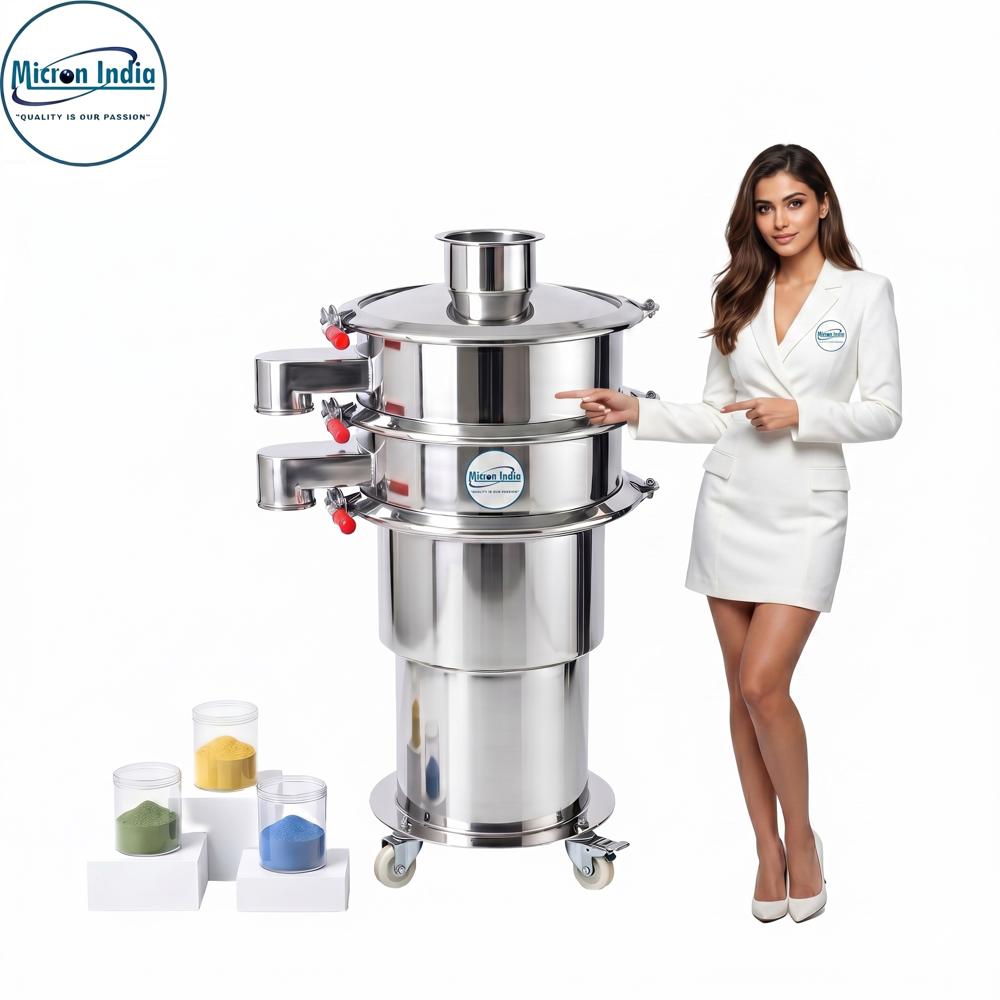

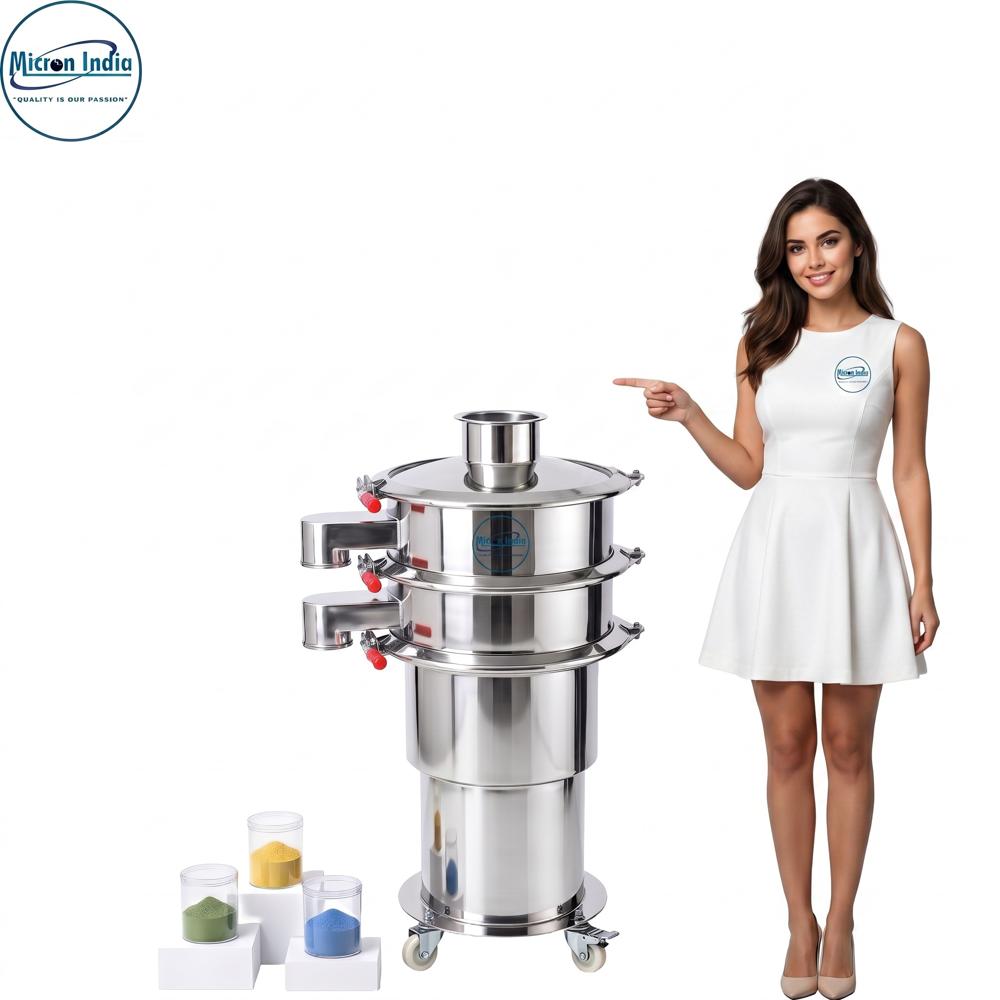

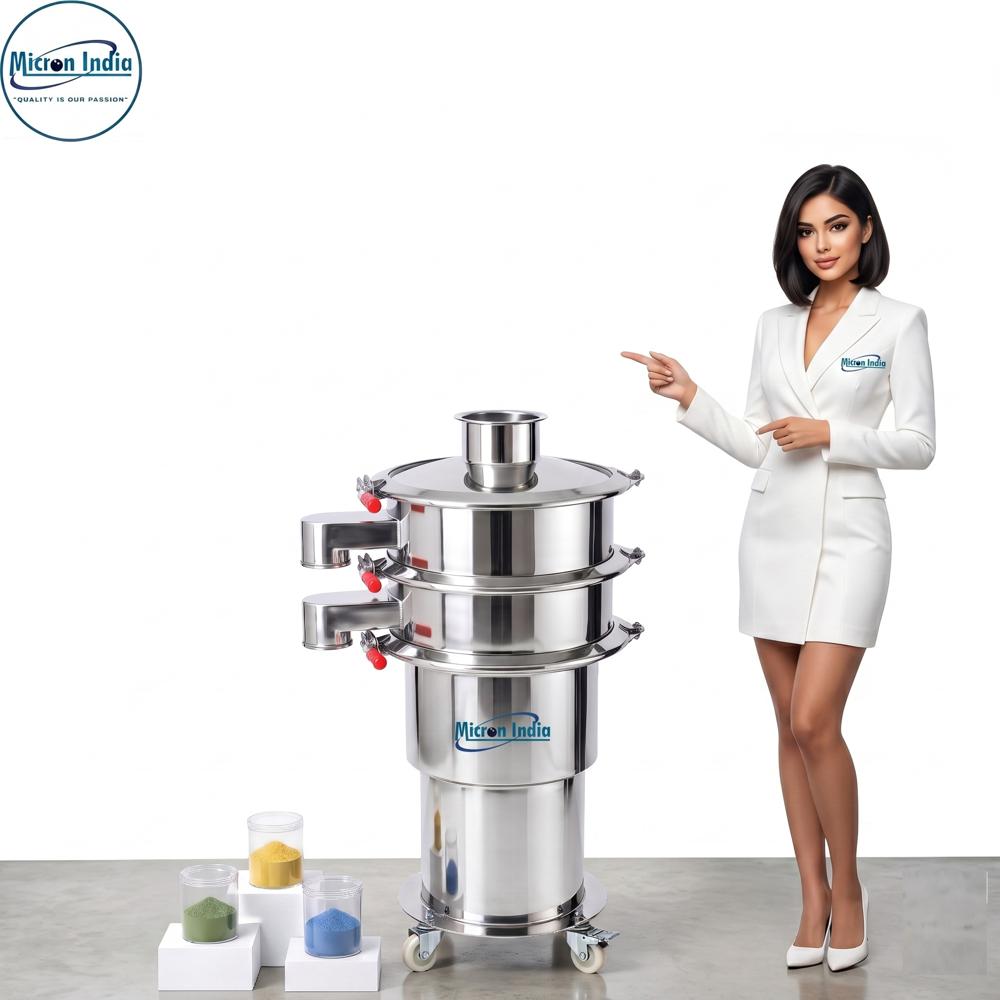

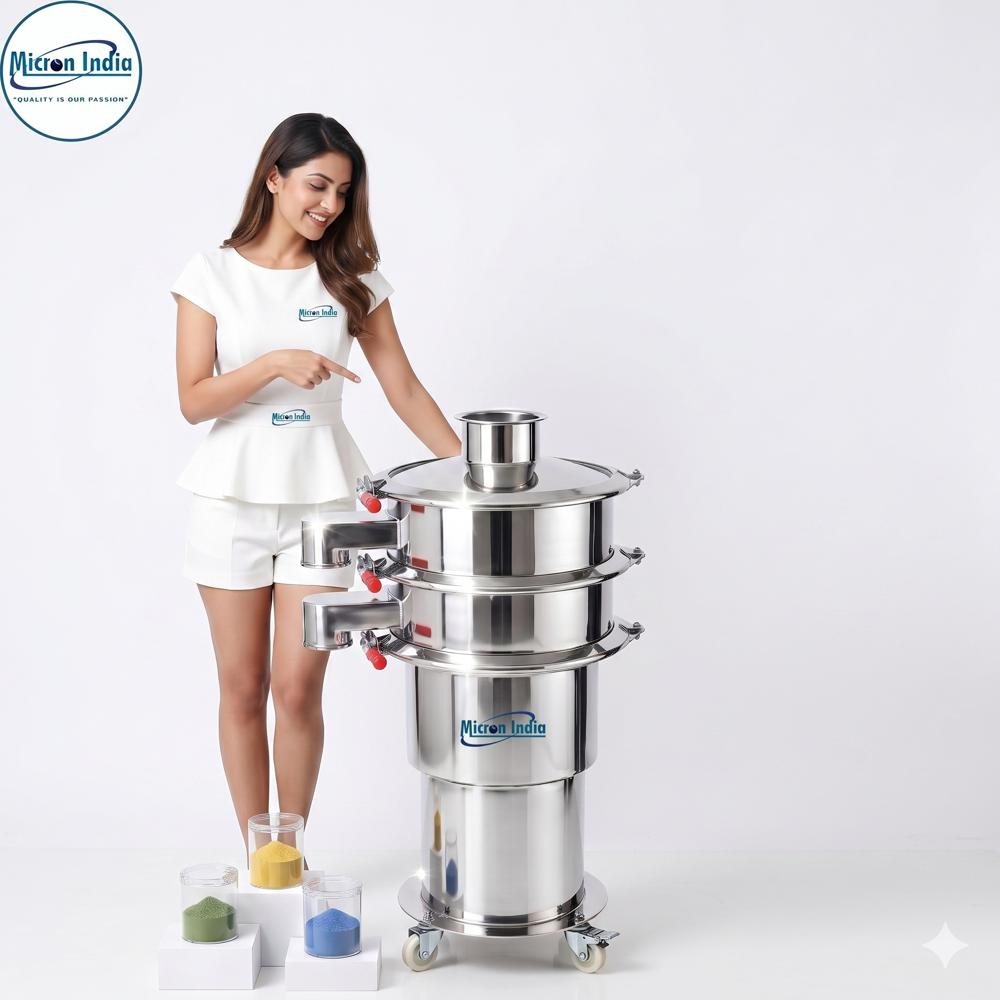

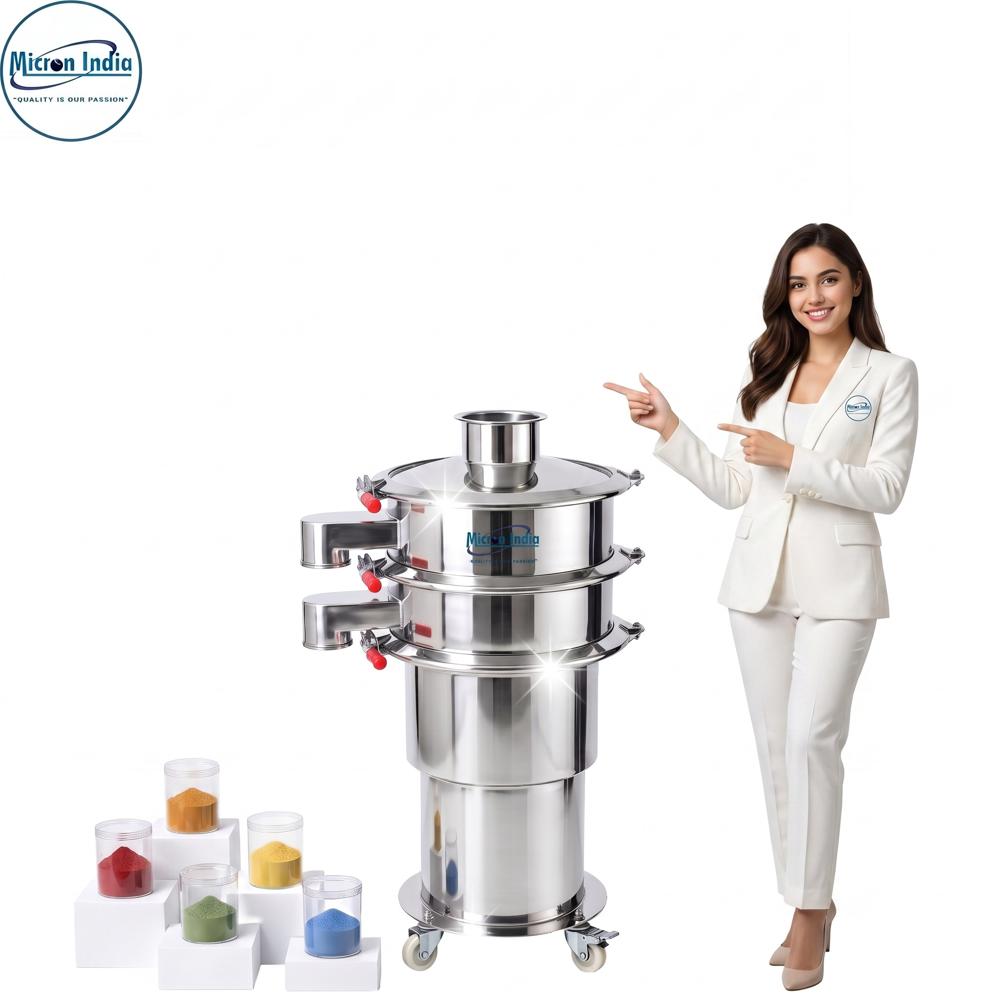

12 INCH VIBRO SIFTER About

12 Inch Vibro Sifter Typical Specifications

Capacity

• Screen Diameter: 12 inch (300 mm)
• Throughput: 20100 kg/hr (depends on mesh size and material)
• Number of Decks: Single, Double, or Triple Deck

Construction

• Product Contact Parts: SS304 (SS316 optional)
• Non-contact Parts: SS304 or MS with powder coating
• Mirror polished internal surfaces
• Mounted on anti-vibration springs

Drive System

• Vibratory Motor: 0.250.5 HP
• Power Supply: 230V Single Phase or 415V Three Phase
• Frequency: 50 Hz

Approximate Dimensions

• Overall Diameter: 1618 inches (400450 mm)
• Overall Height:
  • Single Deck: 2430 inches (610760 mm)
  • Double Deck: 3036 inches (760915 mm)
• Discharge Height: 1824 inches (450610 mm)

Approximate Weight

• Single Deck: 3550 kg
• Double Deck: 4565 kg
• Triple Deck: 5575 kg

Recommended Installation Space

• Minimum Floor Space: 3 ft 3 ft (0.9 m 0.9 m)
• Recommended Working Area: 5 ft 5 ft (1.5 m 1.5 m)
• Minimum Room Height: 7 ft (2.1 m)

Standard Features

• Easy screen replacement
• Low noise and vibration
• Continuous operation
• Dust-proof lid with clamp ring
• Adjustable vibration using eccentric weights
• Easy cleaning and maintenance

Applications

• Pharmaceutical powders
• Food products and spices
• Herbal powders
• Chemicals
• Cosmetics
• Laboratory and pilot plant screening
