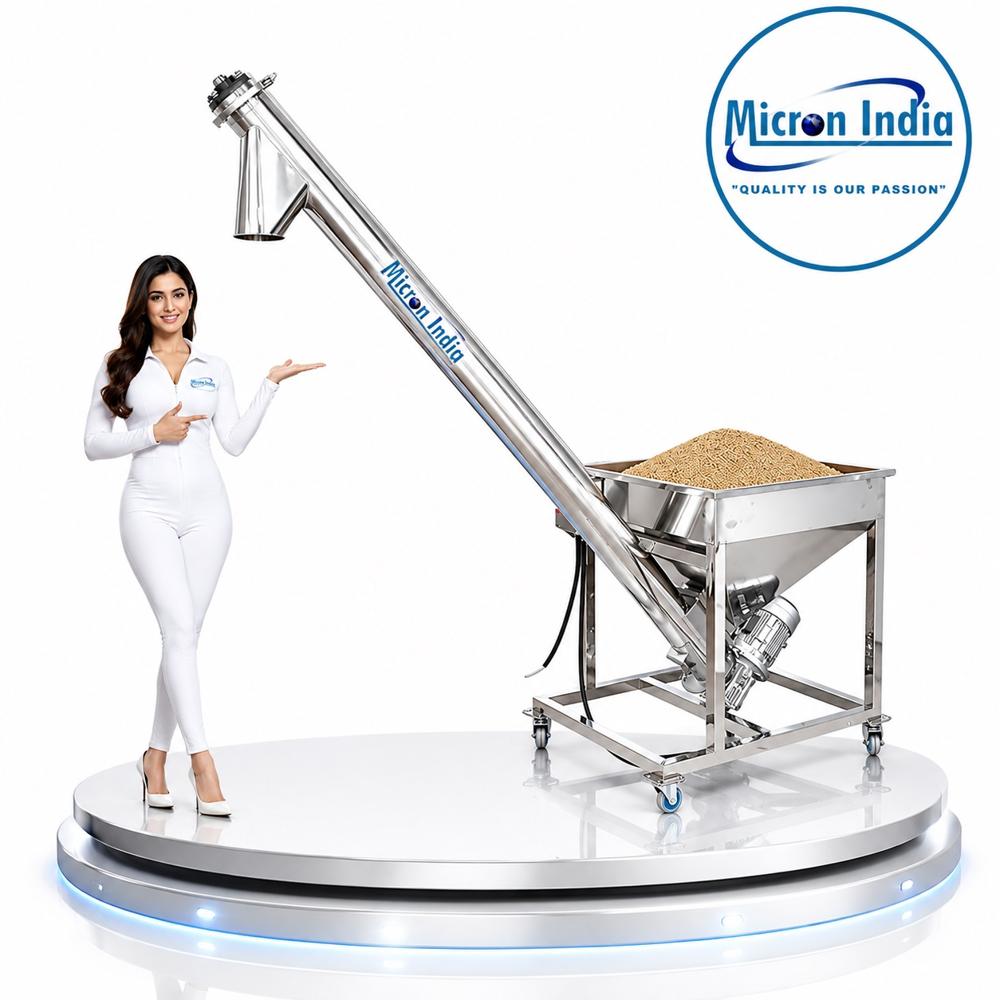

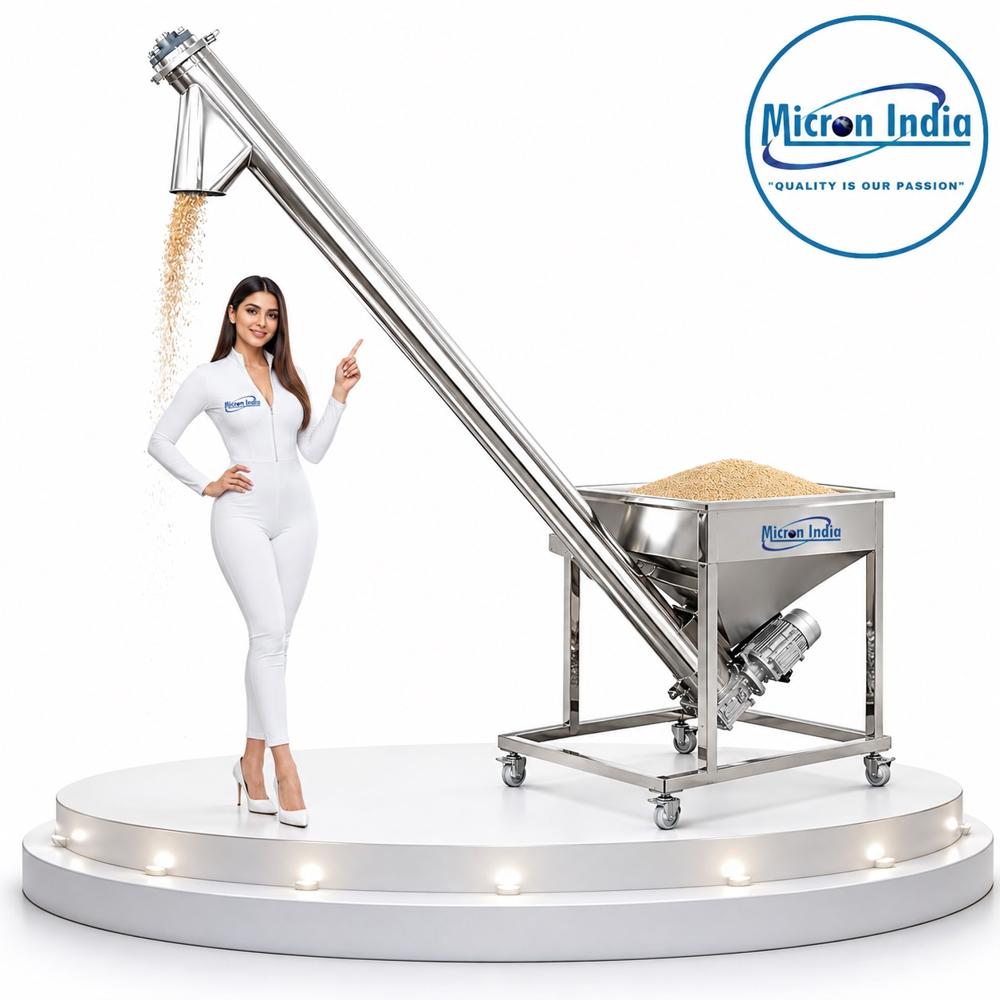

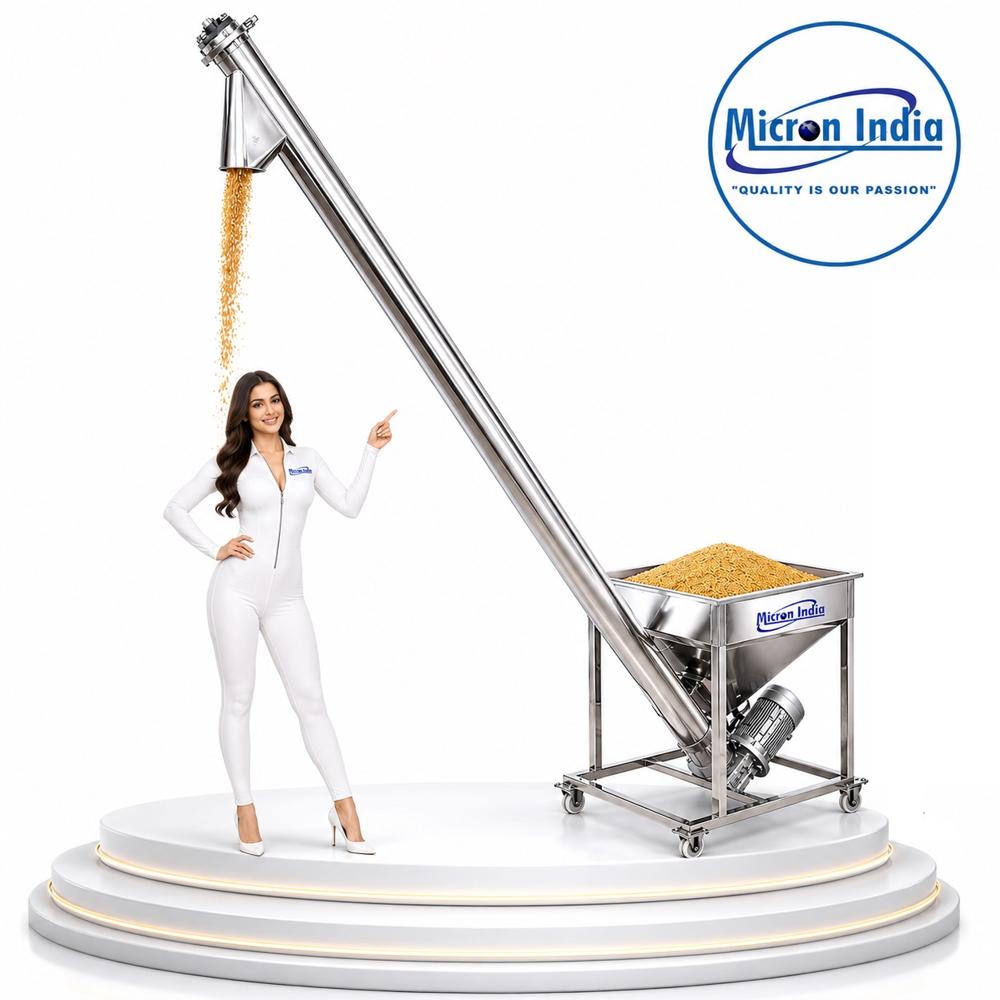

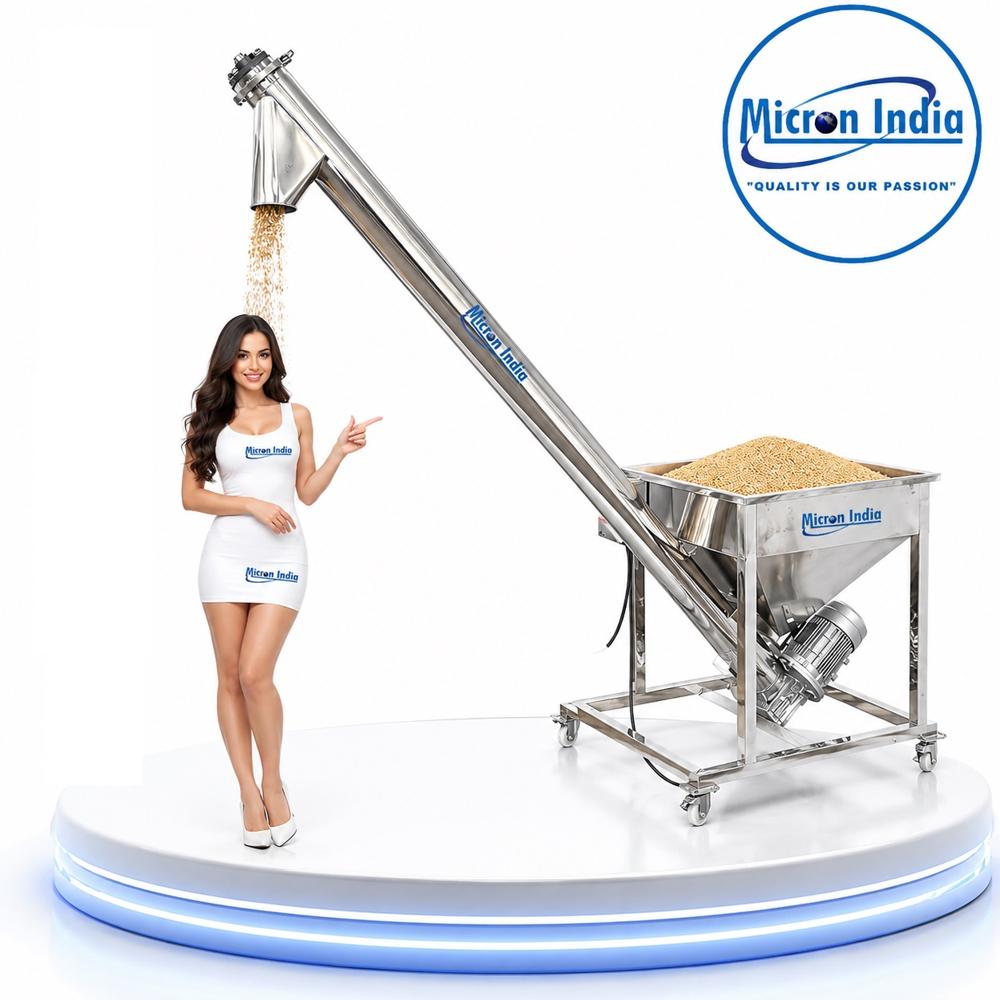

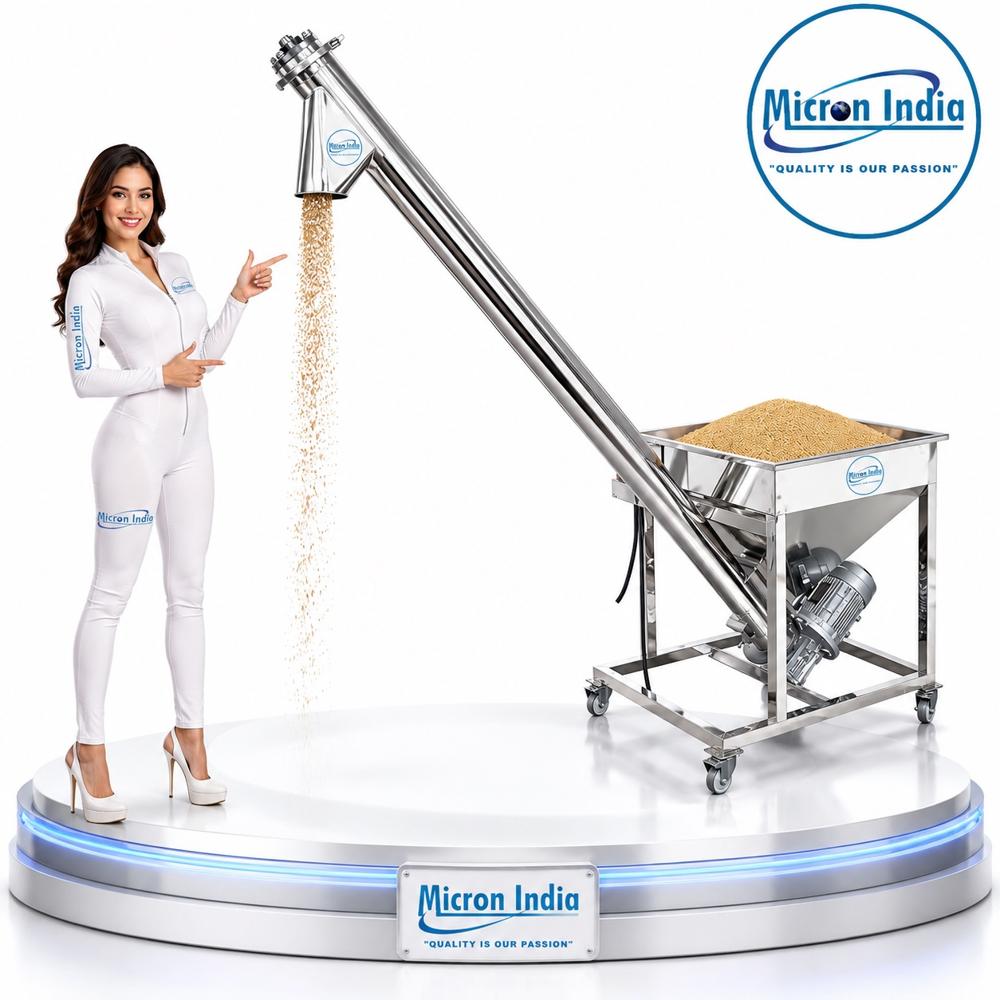

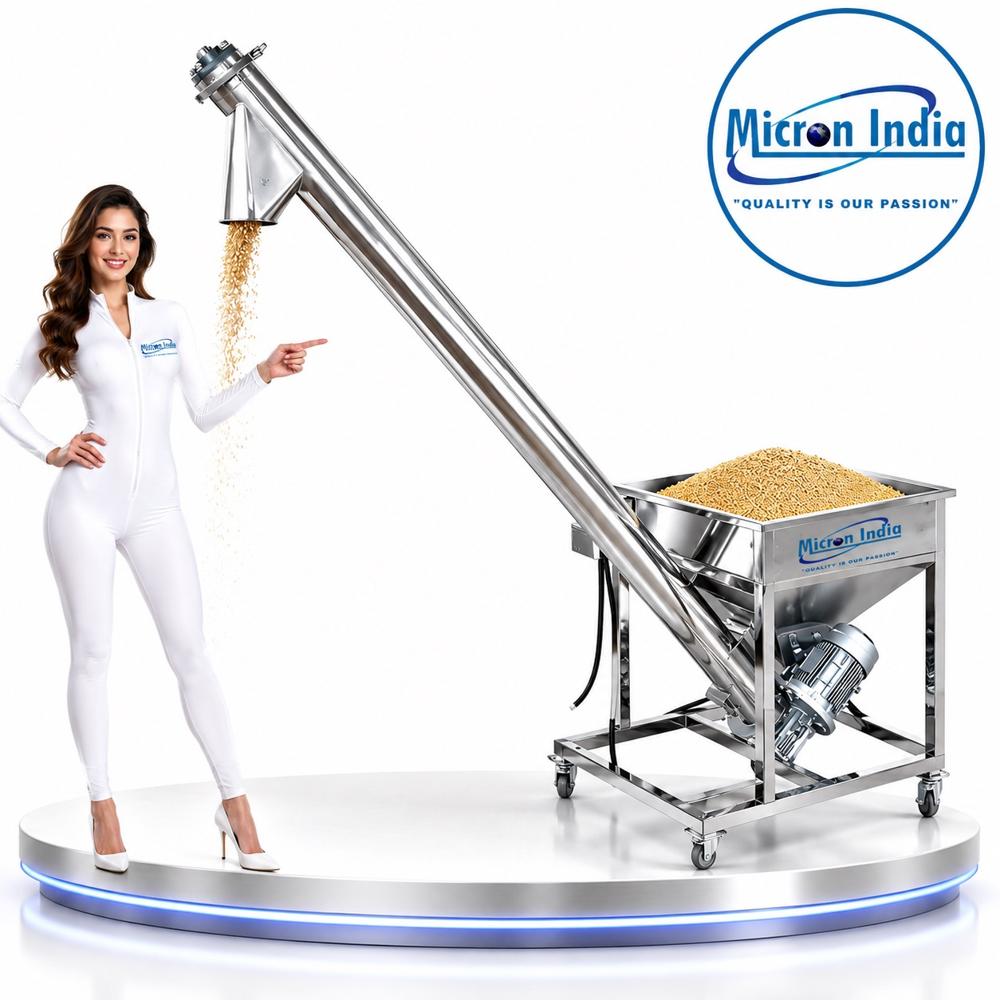

SS SCREW CONVEYOR

SS SCREW CONVEYOR About

12 Foot Long 6 Inch Pipe Diameter SS Screw Conveyor Typical Specifications

Capacity

• Conveyor Length: 12 ft (3658 mm)
• Pipe Diameter: 6 inch (150 mm)
• Capacity: 15 TPH (depending on material bulk density and inclination)

Construction

• Contact Parts: SS304 (SS316 optional)
• Pipe Thickness: 23 mm
• Screw Flight Thickness: 56 mm
• Centre Shaft: 4050 mm diameter
• Surface Finish: Mirror polish (inside optional), matte finish outside

Drive System

• Motor: 23 HP
• Gearbox: Helical or worm reduction gearbox
• Screw Speed: 80150 RPM
• Power Supply: 415 V, 3 Phase, 50 Hz

Approximate Dimensions

• Overall Length: 12.513 ft (3.84.0 m)
• Overall Width: 1014 in (250350 mm)
• Overall Height: 1218 in (300450 mm) (excluding support structure)

Approximate Weight

• Conveyor Assembly: 120180 kg
• With Motor, Gearbox, and Supports: 170250 kg

Recommended Installation Space

• Floor Space: 14 ft 3 ft (4.3 m 0.9 m)
• Working Clearance: 2 ft (600 mm) on each side
• Height Clearance: 34 ft (0.91.2 m) above the conveyor for maintenance

Applications

• Powder transfer
• Pharmaceutical ingredients
• Food powders and spices
• Chemicals
• Cement and minerals
• Granules and pellets

Optional Features

• Hopper with safety grill
• Variable Frequency Drive (VFD)
• Quick-clean design
• Dust-proof covers
• Flexible or fixed outlet
• Castor wheels or fixed support legs
