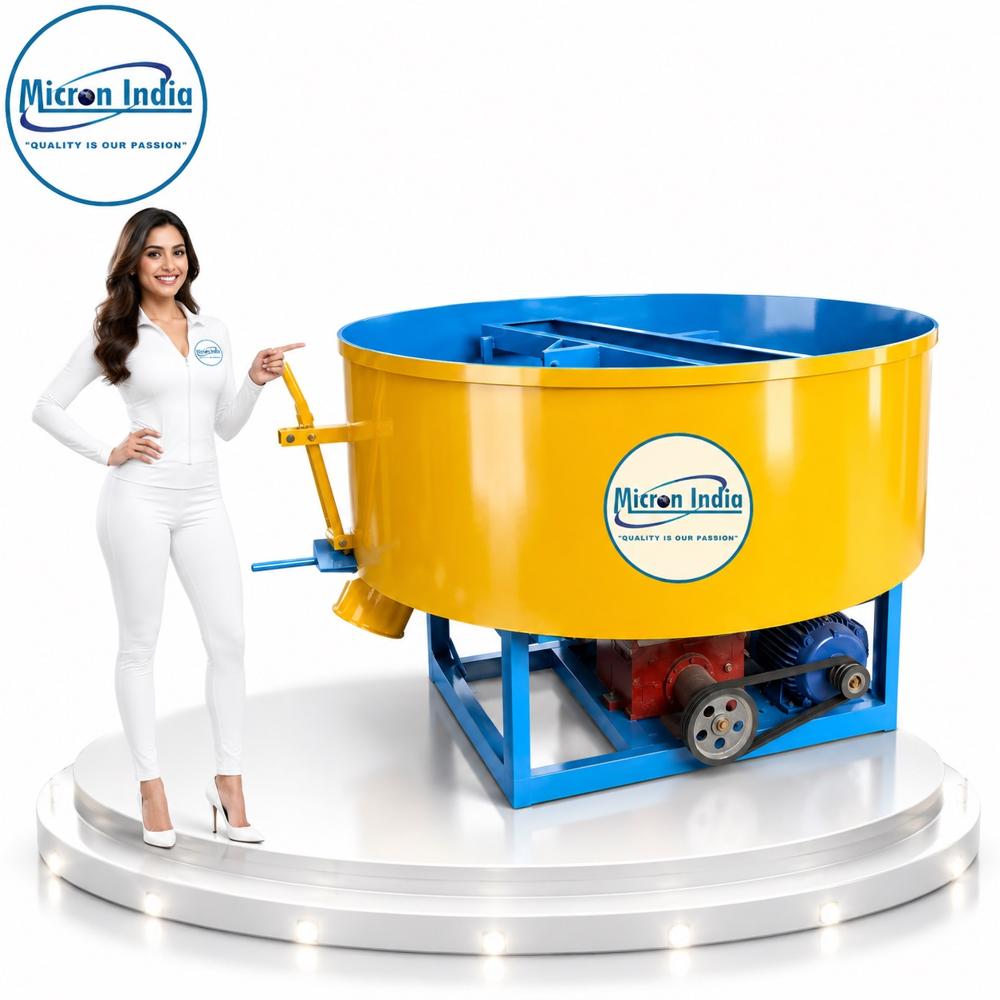

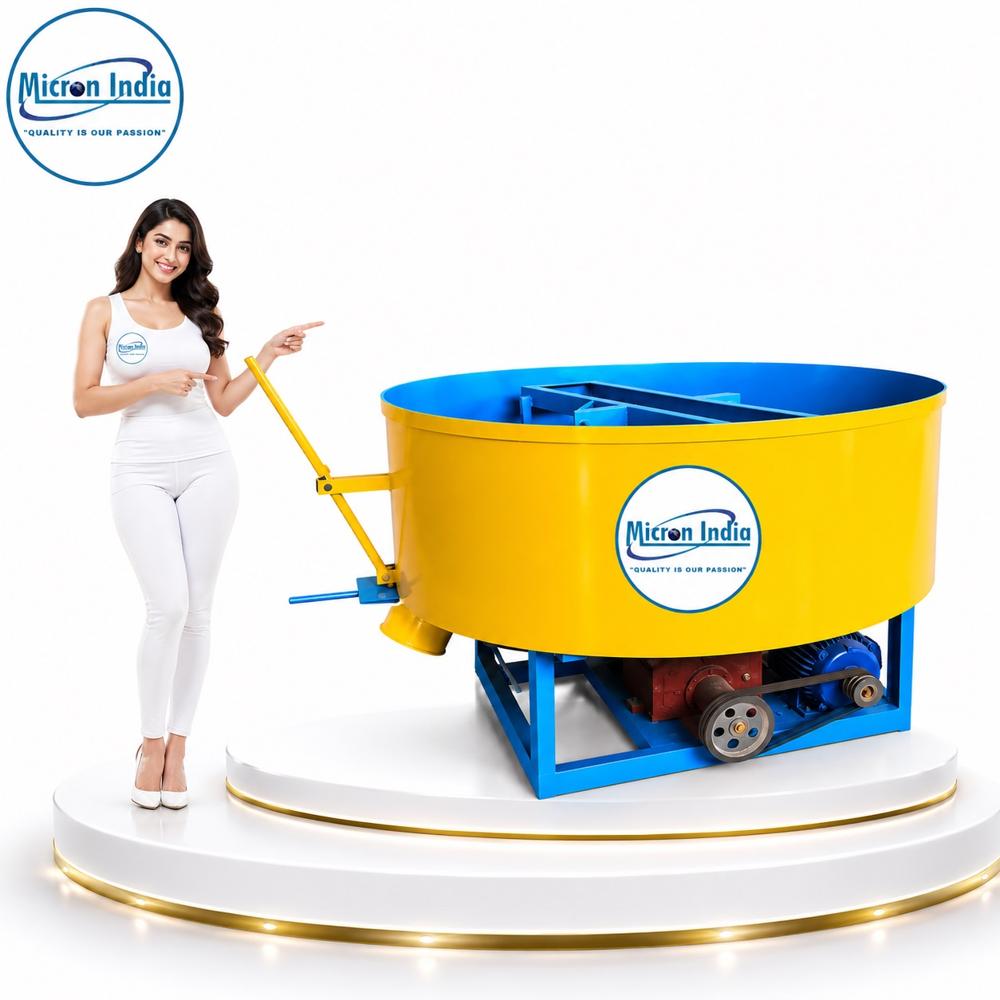

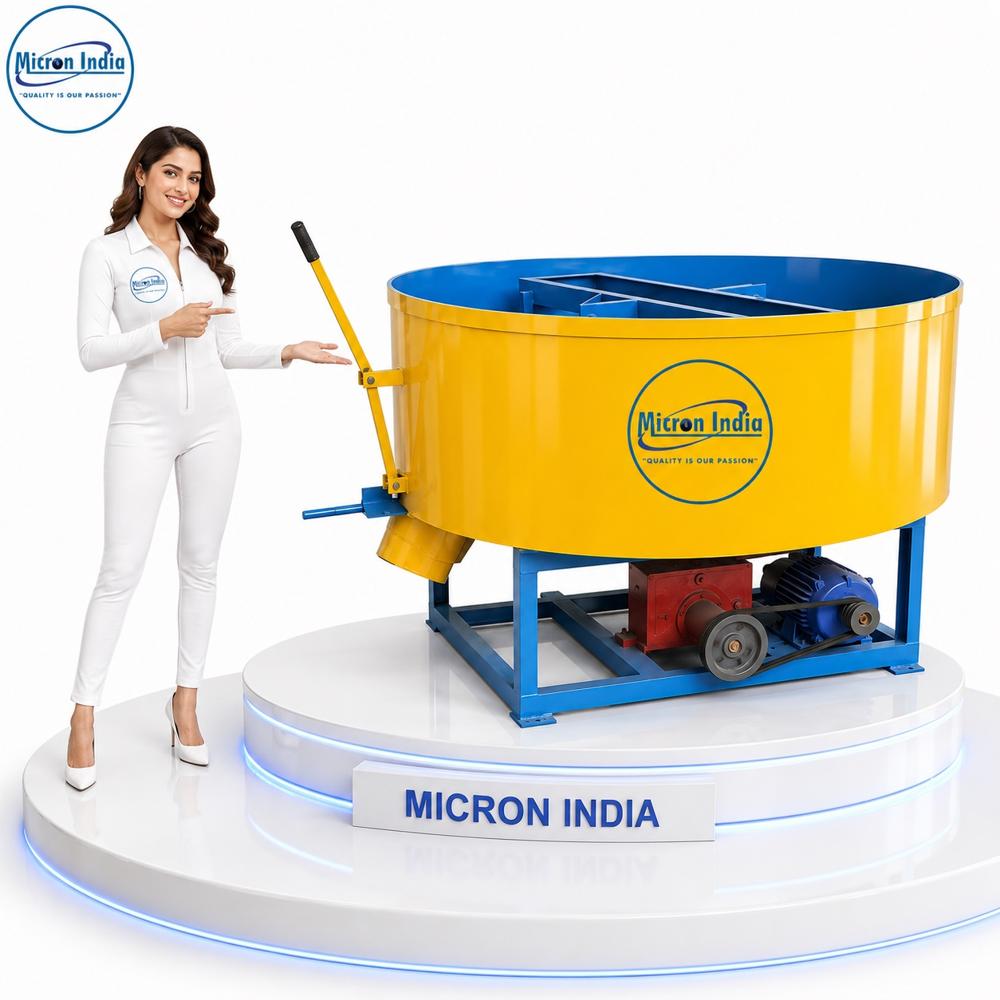

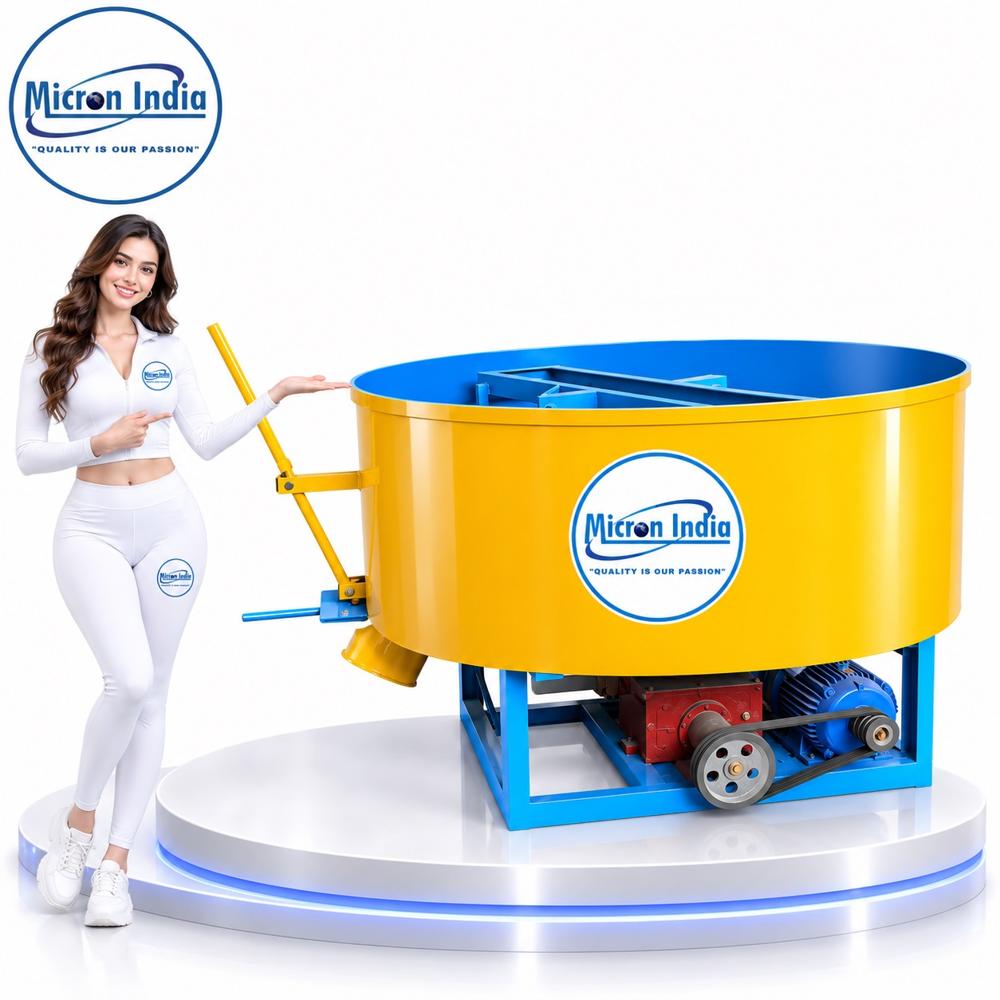

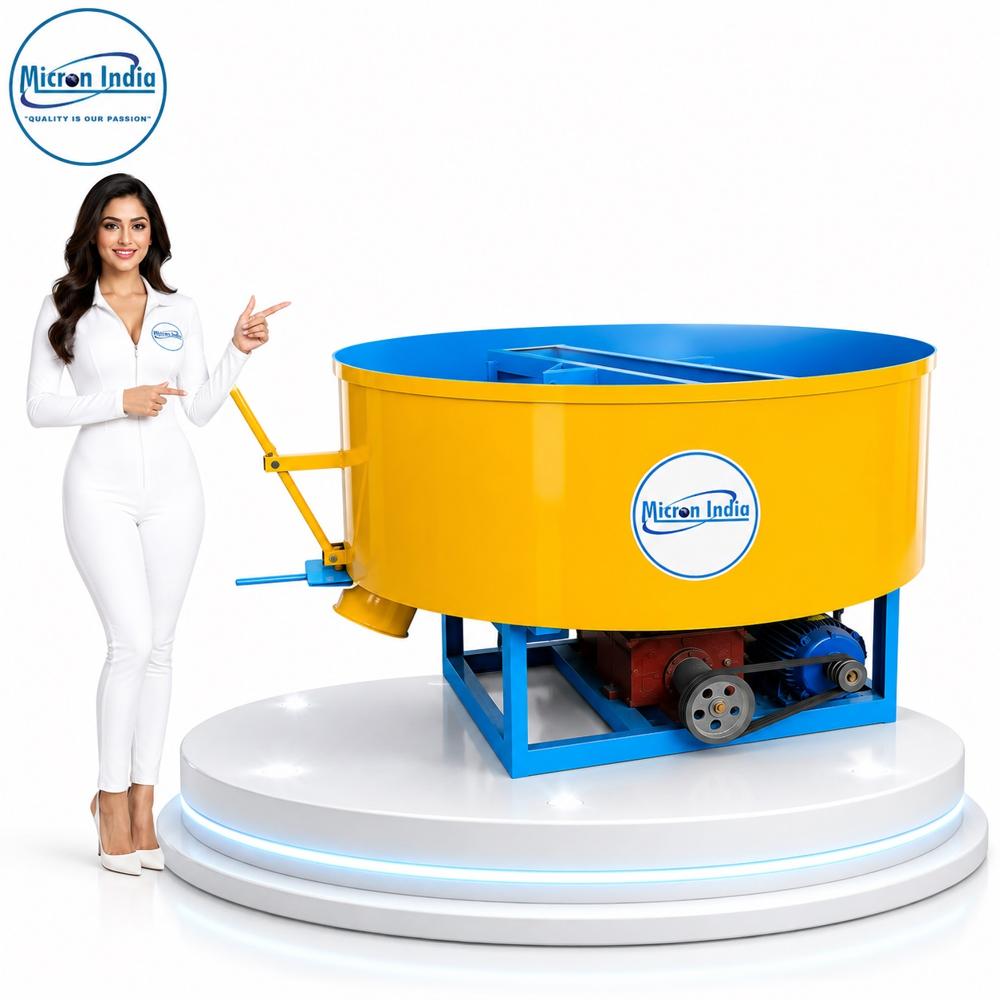

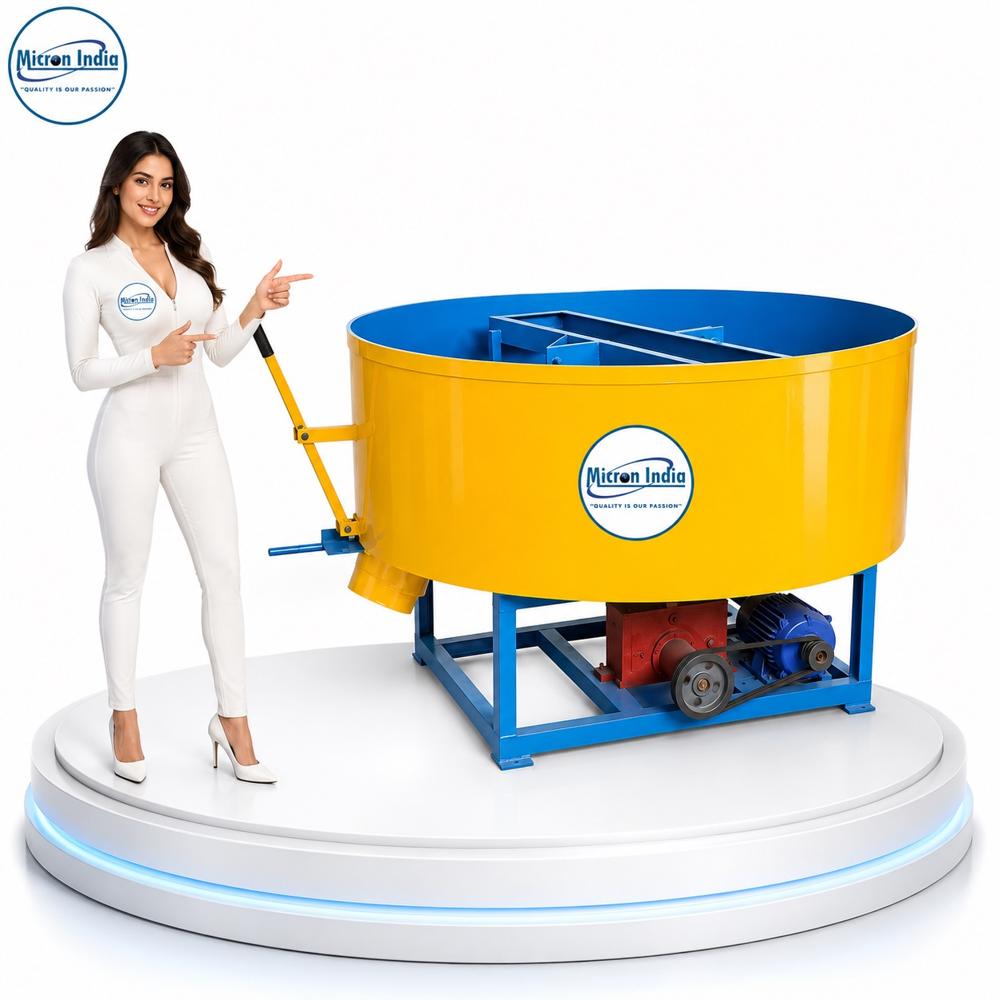

About 6 FOOT PAN MIXER

6 Foot Pan Mixer Typical Specifications

Capacity

• Pan Diameter: 6 ft (1800 mm)
• Batch Capacity: 500750 kg per batch
• Pan Volume: 9001200 Liters
• Mixing Time: 38 minutes per batch

Construction

• Pan Material: Mild Steel (MS) or SS304 (optional)
• Mixing Blades: Heavy-duty alloy steel with replaceable liners
• Frame: Robust fabricated steel construction
• Discharge: Bottom discharge gate (manual or pneumatic)

Drive System

• Main Motor: 1015 HP
• Gearbox: Heavy-duty planetary or helical gearbox
• Pan Speed: 1825 RPM
• Power Supply: 415 V, 3 Phase, 50 Hz

Approximate Dimensions

• Overall Length: 78 ft (2.12.4 m)
• Overall Width: 78 ft (2.12.4 m)
• Overall Height: 56 ft (1.51.8 m)

Approximate Machine Weight

• MS Model: 1,2001,800 kg
• SS Model: 1,5002,200 kg

Power Consumption

• Connected Load: 1015 HP (7.511 kW)
• Electricity Consumption: Approximately 7.511 units (kWh) per hour at full motor load.

Recommended Installation Space

• Minimum Floor Space: 12 ft 12 ft (3.7 m 3.7 m)
• Recommended Working Area: 15 ft 15 ft (4.6 m 4.6 m)
• Minimum Room Height: 10 ft (3.0 m)

Standard Features

• High-efficiency mixing blades
• Heavy-duty geared drive
• Wear-resistant pan liner
• Easy discharge mechanism
• Low maintenance
• Continuous-duty operation
• Optional water dosing system and VFD

Applications

• Fly ash brick manufacturing
• Paver block production
• Concrete and mortar mixing
• Refractory materials
• Ceramic and mineral processing
• Chemical and construction material mixing
