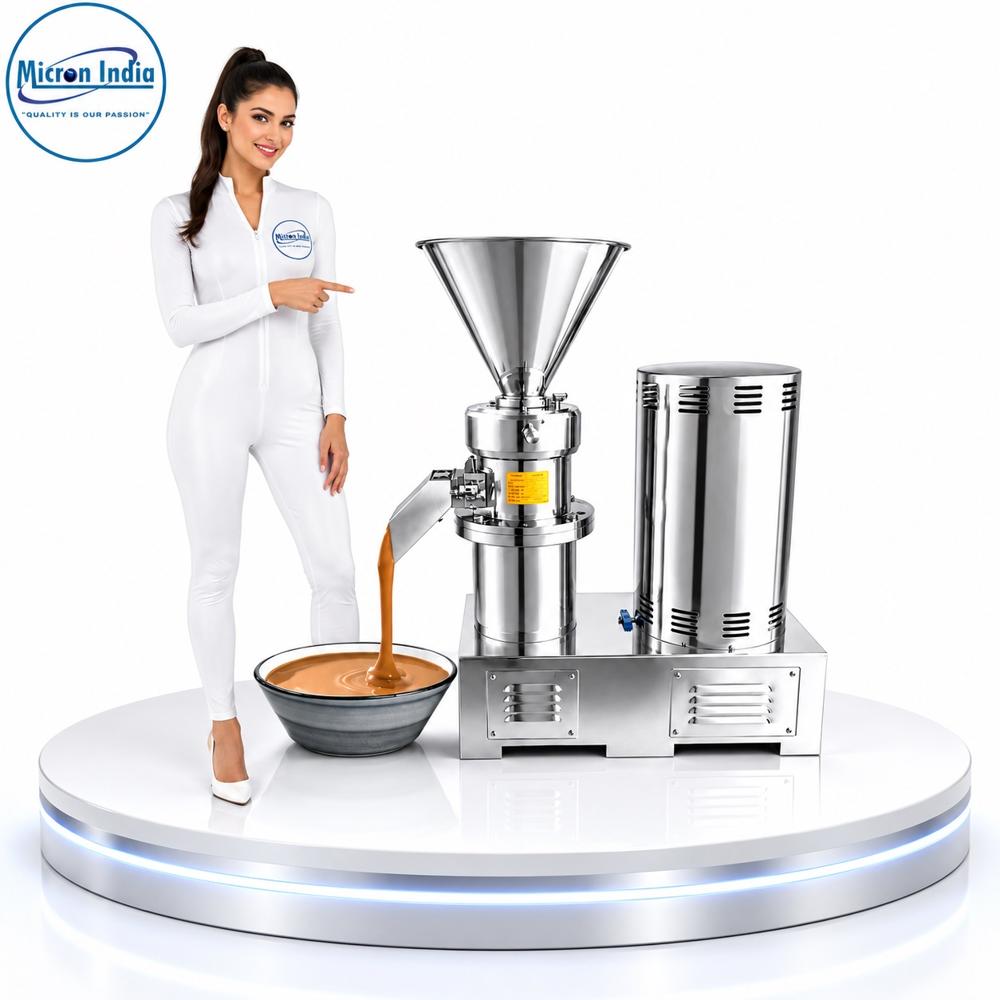

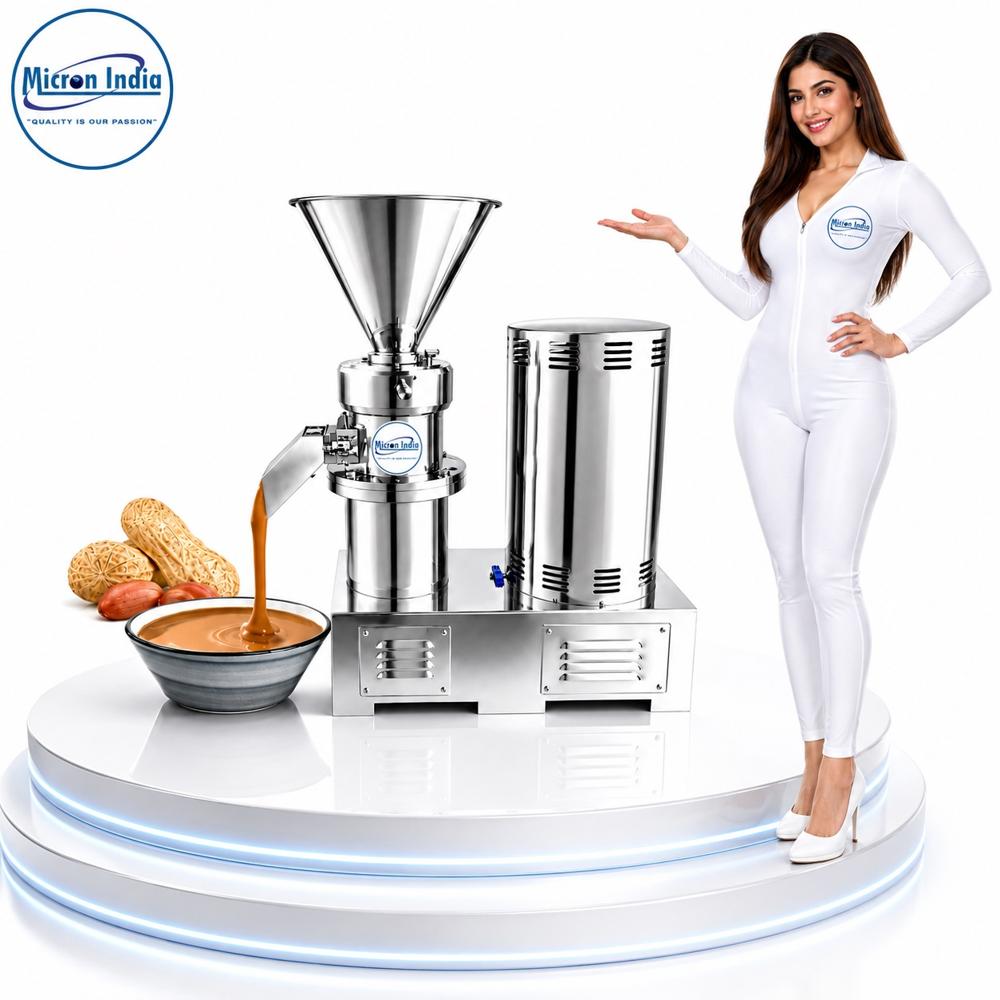

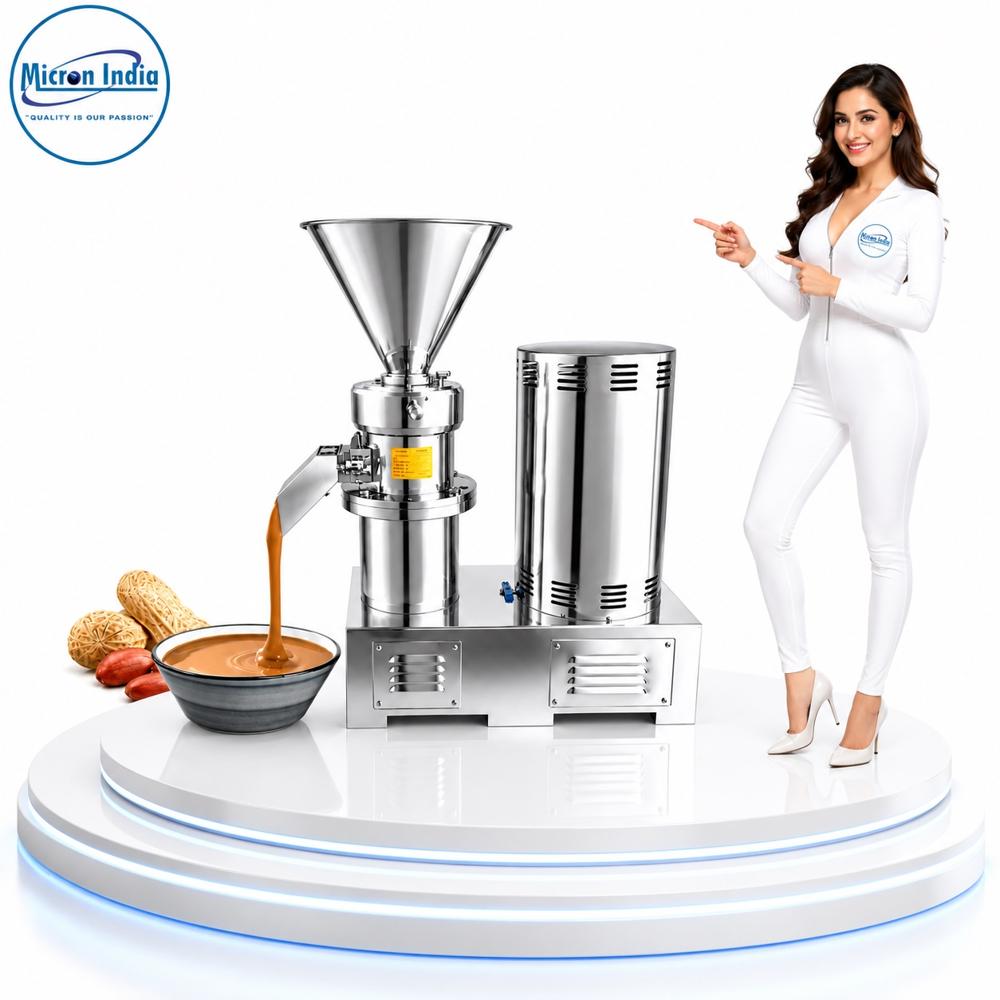

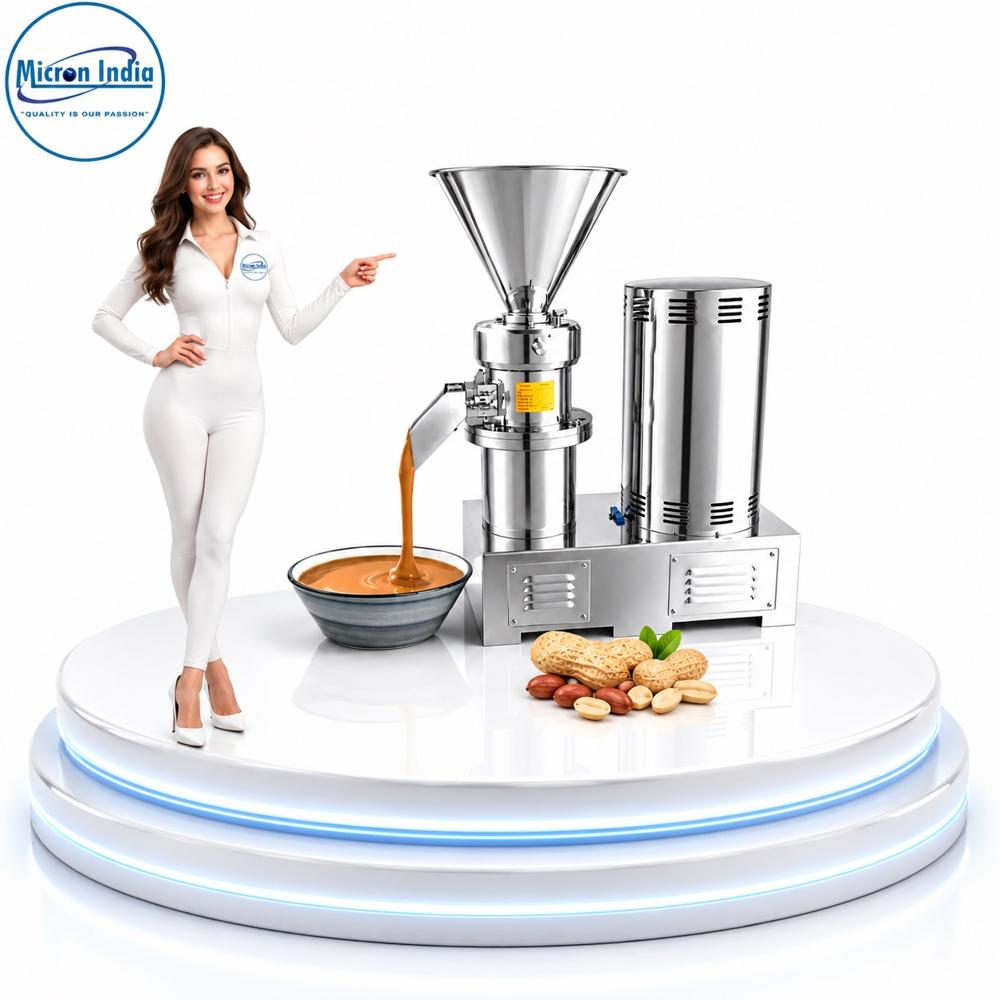

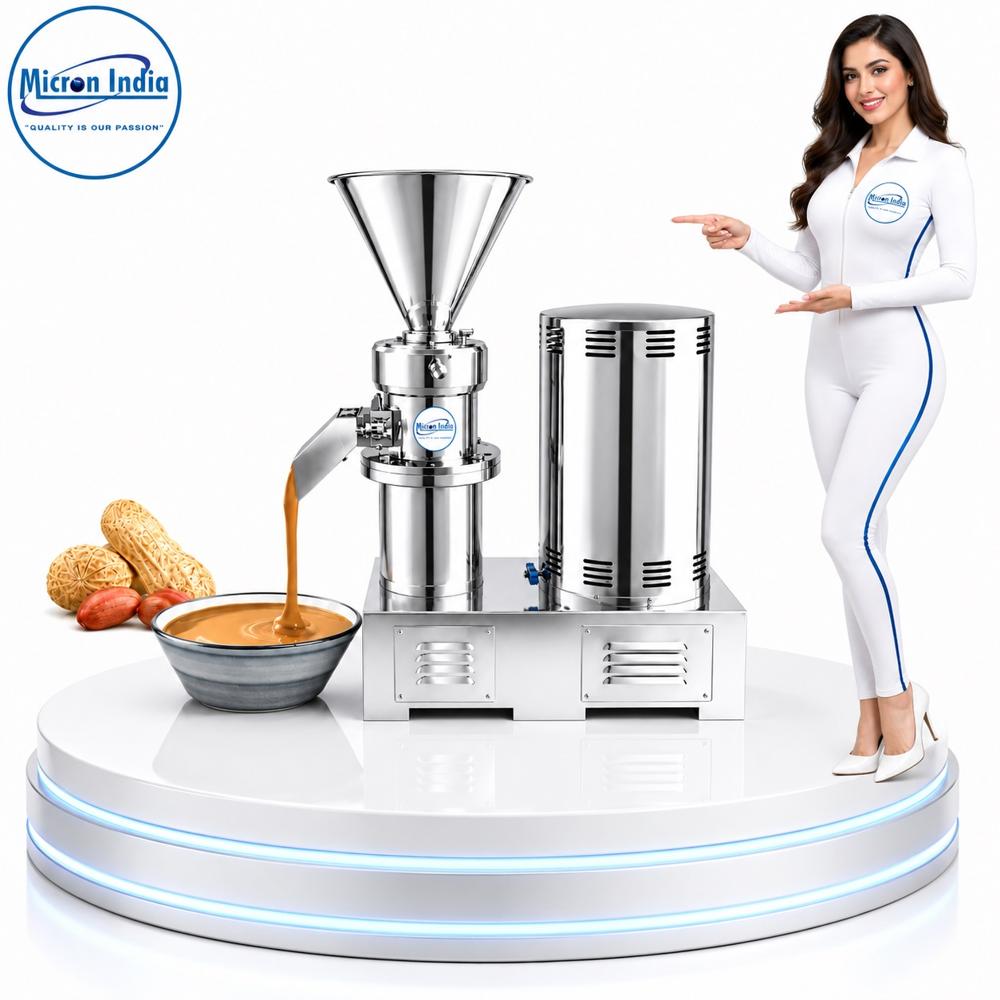

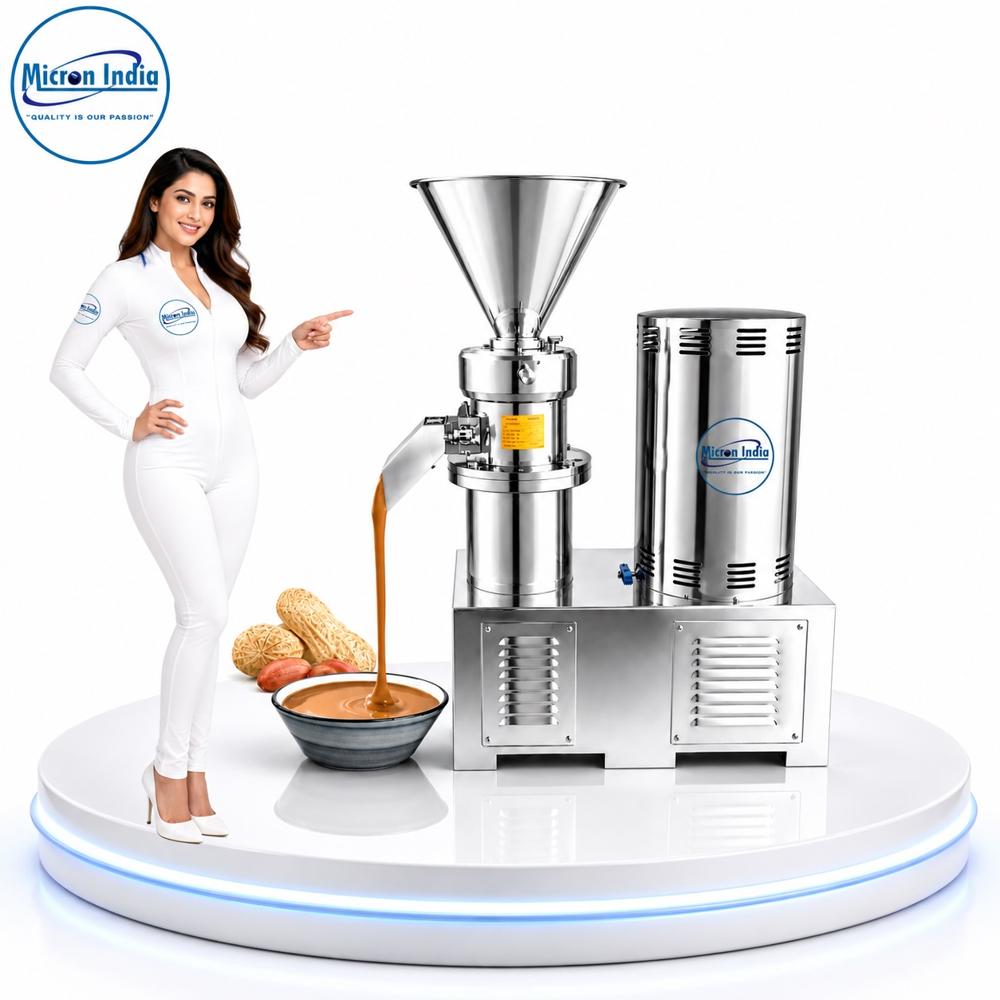

About 5 HP COLLOID MILL

5 HP Colloid Mill Typical Specifications

Capacity

• Output Capacity: 100500 kg/hr (depending on product viscosity and fineness)
• Particle Size: 525 microns (application dependent)

Construction

• Product Contact Parts: SS304 (SS316 optional)
• Non-Contact Parts: SS304 or MS with powder coating
• Rotor & Stator: Hardened Stainless Steel
• Surface Finish: Mirror polished product contact parts

Drive System

• Motor: 5 HP (3.7 kW)
• Power Supply: 415 V, 3 Phase, 50 Hz
• Motor Speed: 2880 RPM
• Drive: Direct coupled

Performance

• Grinding Gap: Adjustable
• Cooling Arrangement: Optional water-cooled jacket
• Feed Type: Gravity or hopper feeding

Approximate Dimensions

• Overall Length: 33.5 ft (9001050 mm)
• Overall Width: 22.5 ft (600750 mm)
• Overall Height: 44.5 ft (12001350 mm)

Approximate Weight

• 180250 kg

Power Consumption

• Connected Load: 3.7 kW
• Electricity Consumption: Approximately 3.7 units (kWh) per hour at full motor load.

Recommended Installation Space

• Minimum Floor Space: 5 ft 5 ft (1.5 m 1.5 m)
• Recommended Working Area: 7 ft 7 ft (2.1 m 2.1 m)
• Minimum Room Height: 8 ft (2.4 m)

Standard Features

• Adjustable rotor-stator clearance
• High-shear homogenizing and emulsifying action
• Low-noise operation
• Easy dismantling and cleaning
• Mechanical seal to prevent leakage
• Optional VFD for speed control

Applications

• Pharmaceutical ointments and creams
• Food products (peanut butter, sauces, ketchup, mayonnaise)
• Cosmetic creams and lotions
• Chemical emulsions
• Herbal paste and suspensions
• Paints, pigments, and inks
